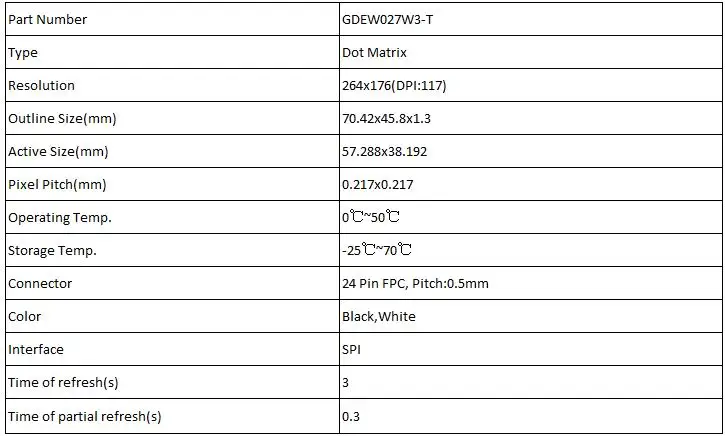

Part Number |
GDEW027W3-T |
Type |
Dot Matrix |
IC | EK79652 |
Resolution |
264*176(DPI:117) |
Outline Size(mm) |
70.42*45.8*1.3 |
Actve Size(mm) |
57.288*38.192 |
Pixel Pitch(mm) |
0.217*0.217 |
Operating Temp. |
0℃~+50℃ |
Storage Temp. |
-25℃~+70℃ |
Connector |
24 Pin FPC, Pitch:0.5mm |
Color |
Black, White |
Max Grayscale |
4 |
Time of refresh(s) | 3 |
Time of partial refresh(s) | 0.3 |
Power consumption of the e-paper only(mW) | 26.4 |
Power consumption of the touch screen(mW) | 14.3 |
Part Number |
DESPI-C03 |
Platform |
STM32, Arduino, Raspberry Pi and so on |
Function |
Connection E-paper Display with DESPI-M02 |
Outside Dimension |
52x36mm |
Interface |
USB Interface |
Power Input |
DC3.3V |
Feature |
Fully and Partial refresh |
Operating Temp |
-20~70℃ |
Part Number |
Color |
Resolution |
Features |
Refresh Time |
B/W |
264*176 |
Partial refresh, 4 Grayscale, Frontight/Touch screen(optional) |
3S |
|
B/W |
264*176 |
Partial refresh, touch screen, 4 Grayscale, Frontight/Touch screen(optional) |
3S |
|
GDEH027Z70 | B/W/R | 264*176 | Three colors, Frontight/Touch screen(optional) | 16S |
E-paper demo kit drive board with multifunction connection adapter board DESPI-V3.0
