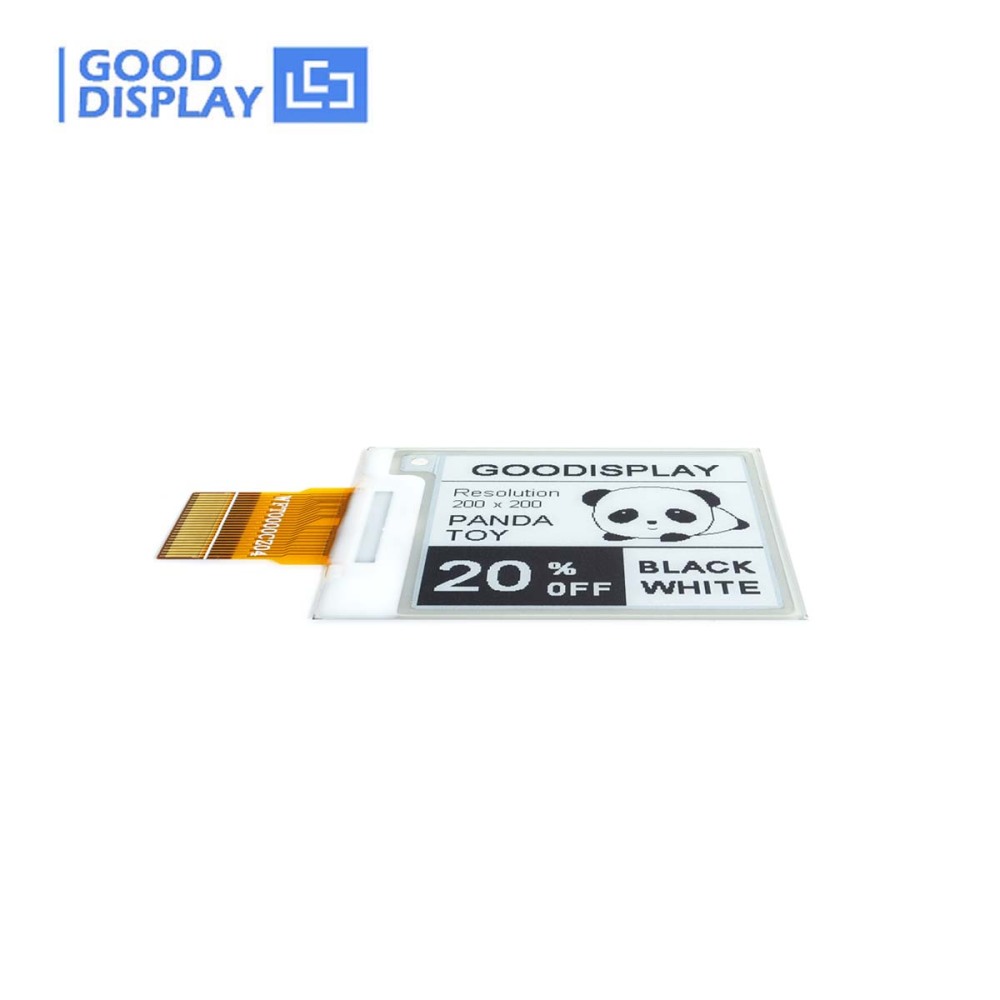

Small 1.54inch Epaper 200x200 SPI Cheap E ink Display, GDEW0154T11

This cheap 1.54inch e ink display is a TFT active matrix electrophoretic display, with interface and a reference system design. The 1.54 inch active area contains 200x200 pixels.
Sold:2
Price:
USD
$4.99
  • Product:
    EPD
    EPD with adapter board DESPI-C02
    EPD with demo kit DESPI-L(C02)
Quantity:
-
+
(9 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews


☆ INTRODUCTION




This is a small 1.54 inch cheap e ink display with 200x200 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This eink display GDEW0154T11 is perfect for low power devices powered by solar or batteries.



We provide the E-Ink Adapter Board for you to connect the E-paper Display.

We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array




 THE ABOVE PRICE INCLUDE

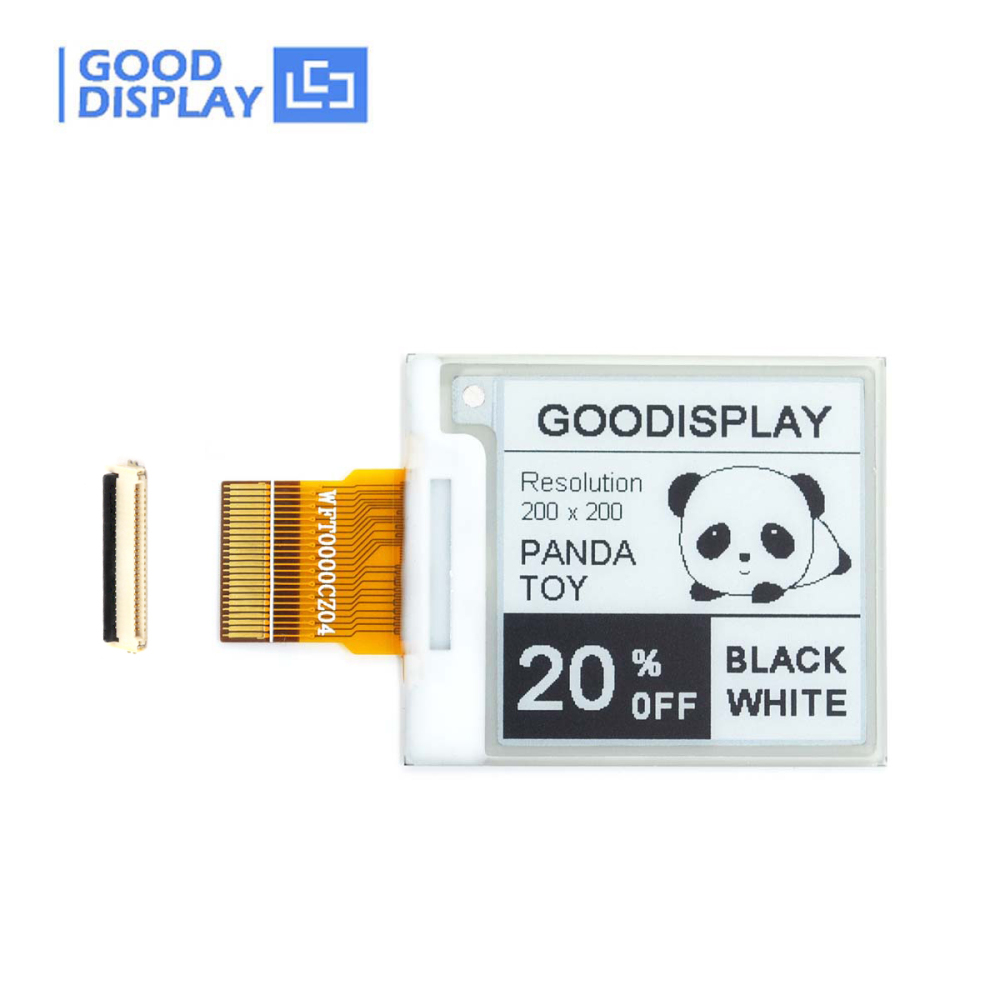

1) 1.54'' Epaper 200x200 SPI Cheap Eink Display, GDEW0154T11 * 1pc
2) FPC Connector * 1pc




 MAIN PARAMETERS




PART NUMBER

GDEW0154T11

TYPE

Dot Matrix

STORAGE TEMP. -25℃~70℃

SIZE

1.54 inch

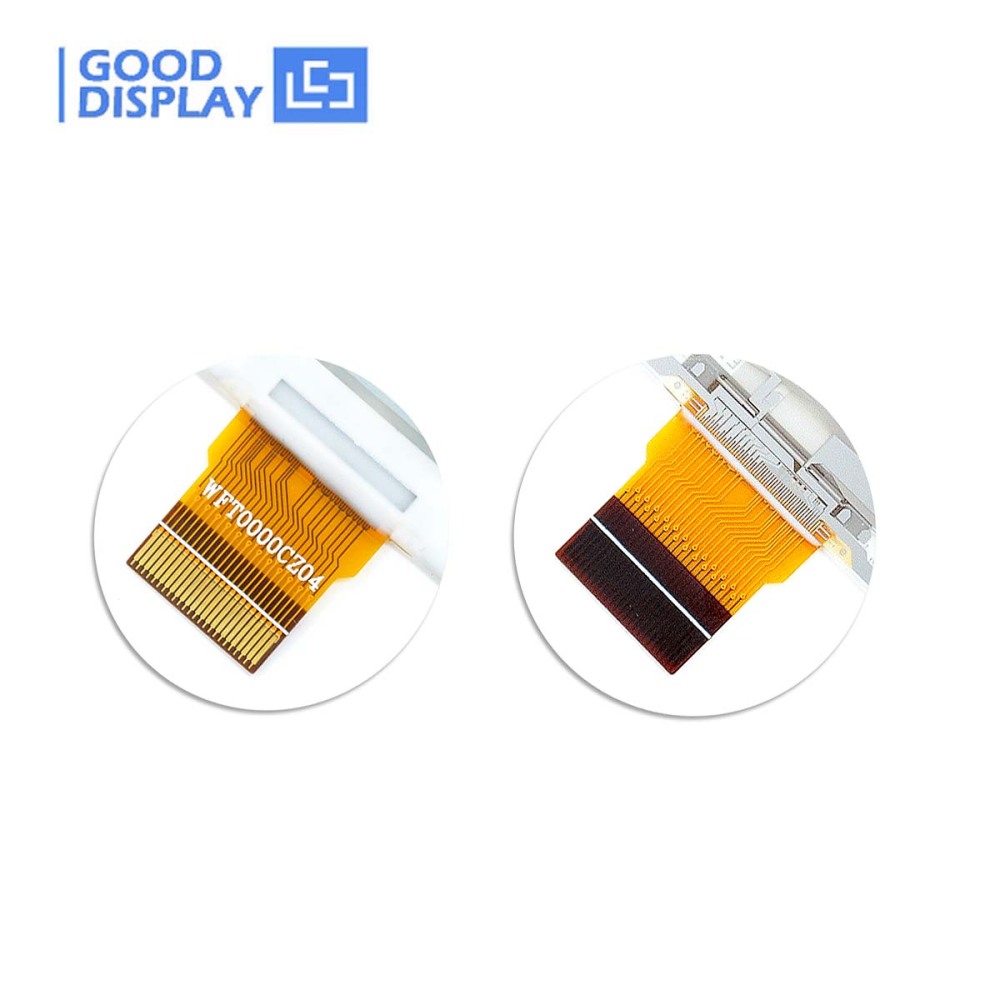

CONNECTOR 24 Pin FPC

IC

UC8154

MAX GRAYSCALE 2

RESOLUTION

200x200

COLOR Black,White

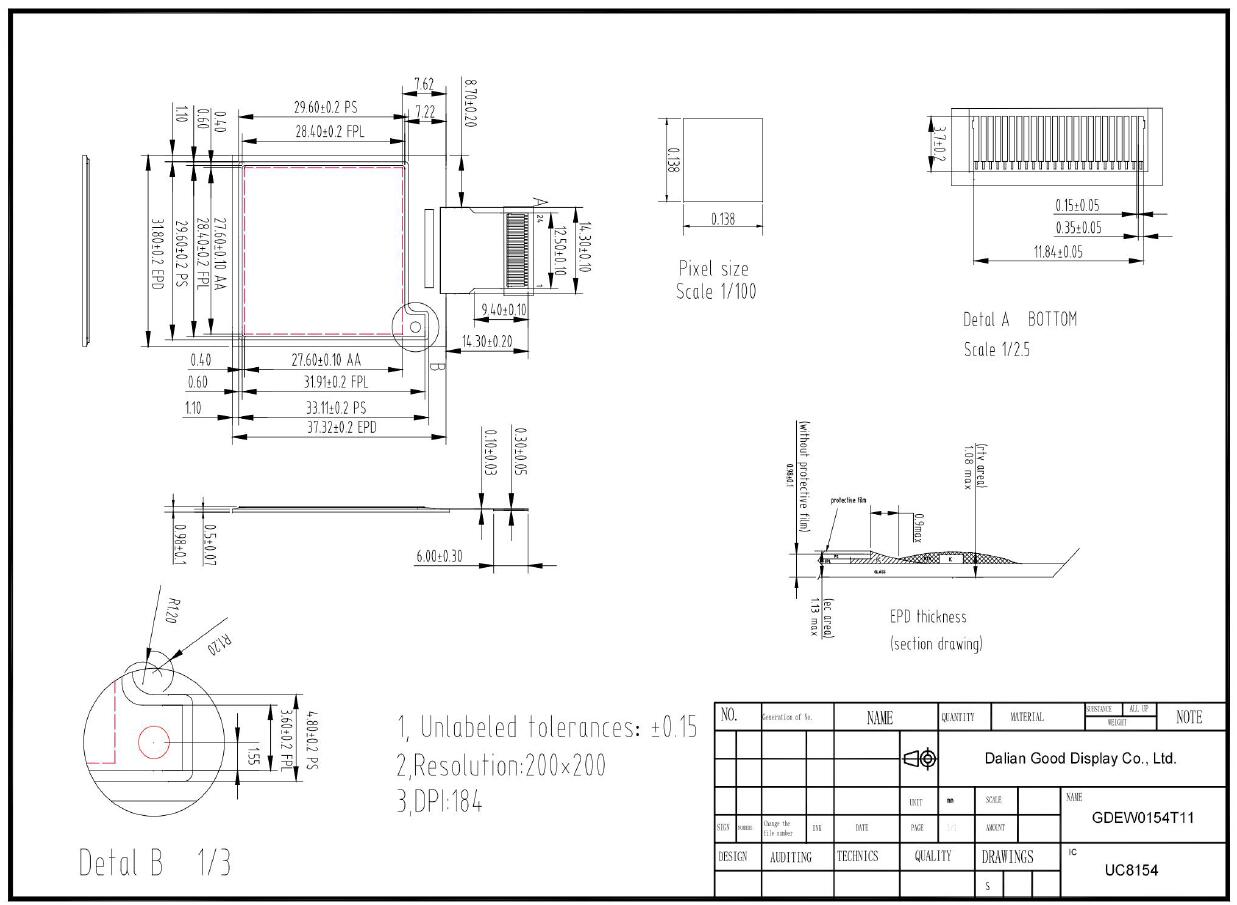

OUTLINE SIZE(mm)

31.8x37.32x0.98

INTERFACE SPI

ACTIVE SIZE(mm)

27.6x27.6

FULL REFRESH(s) 2

PIXEL PITCH(mm)

0.181x0.181

POWER CONSUMPTION OF THE REFRESH(mW) 26.4

OPERATING TEMP.

0℃~50℃

STANDBY POWER CONSUMPTION (mW) 0.0165


 DETAIL









 FEATURE




●  Black and white monochrome is easy to read

●  Versatile. Use in portrait or landscape format

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor

●  Development platform available STM32 / ArduinoRaspberry Pi / ESP8266 / ESP32



☆ MATCHED DEVELOPMENT KIT




● DESPI-C02 (E-ink Display HAT)

● DESPI-L(C02) (STM32 Platform/Universal)



● DEArduino-L(C02) (Arduino Platform)


● ESP8266-L(C02) (WiFi)


● ESP32-L(C02) (WiFi / Bluetooth)


● DESPI-PICO (Rasberry Pi Epaper HAT)



☆ WE ALSO SUGGEST...




1.54 inch DES e-paper display wide working temperature 152X152 resolution EPD GDEW0154M10

1.54 inch small eink display for support partial update E-paper screen module GDEH0154D67

1.54 inch electronic paper display Customizable 1.5s fast refresh partial refresh digital price tags screen, GDEY0154D67

1.54 inch small e-ink display with frontlight 4 Grayscale display panel, GDEW0154T8-FL

Epaper-display Thin 1.54inch epaper Electronic Shelf Label E Ink Panel, GDEM0154Z91

1.54 inch colorful red e-paper display panel, GDEH0154Z90

1.54 inch e-ink panel 152x152 flexible partial refresh epaperdisplay ACF Thermal Compression Bonding, GDEW0154I9FC

e-paper display 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh GDEW0154T8D
