1.54 Inch Small E-Ink Panel With Arduino Platform Driving Board, 2pcs GDEW0154M10+DEArduino-L(C02)

DES 1.54 inch e-paper display with 152X152 resolution, 24 pins FPC connection, SPI interface.
Price:
USD
$30.99
Quantity:
-
+
(99 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews



☆ INTRODUCTION




This is a set of development kit with DES 1.54 inch e-paper display, 152X152 resolution, SPI interface, and the e-paper display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. This 1.54 inch DES electronic paper display GDEW0154M10 breaks the limitations of traditional e-paper display on the working environment, apply to more projects.

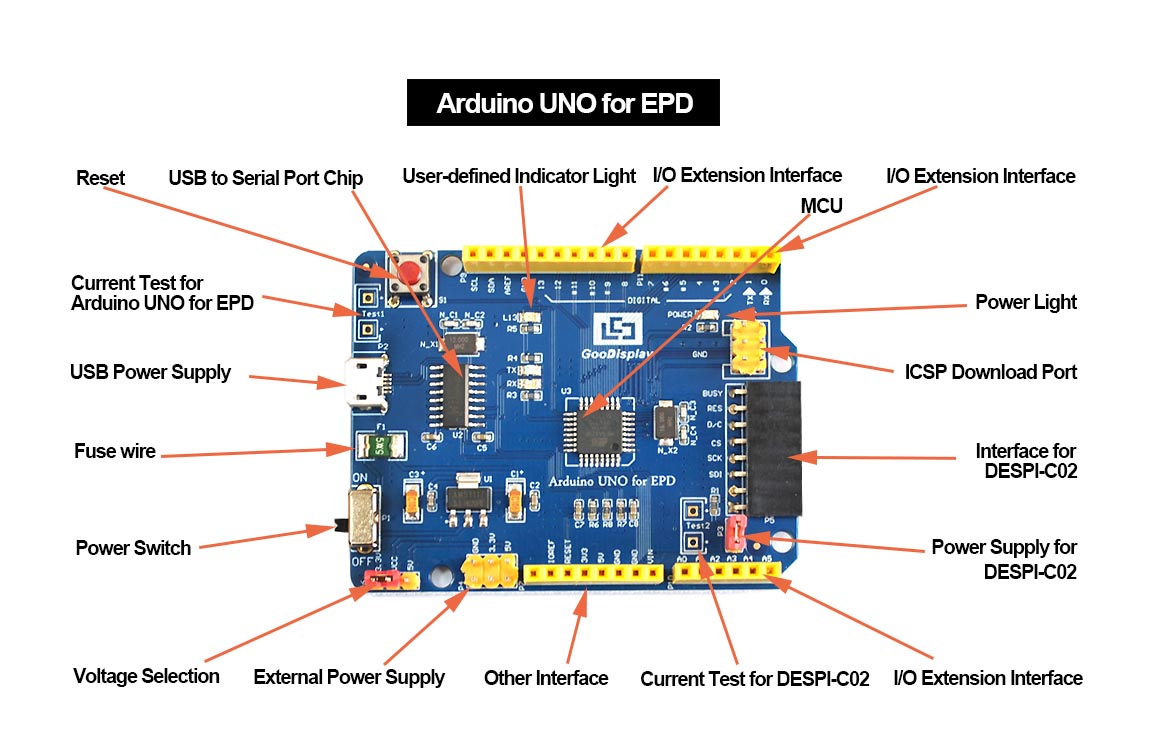

DEArduino-L(C02) is its most basic development board. Its processor core is ATmega328, and it has 14 digital input / output ports (of which 6 can be used as PWM output) , 6 analog inputs. With peripheral devices (sensors, control switches, LED screens, etc.), anyone with a slight electronic circuit foundation can quickly build a practical electronic circuit with various interesting functions based on this platform.


We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.


You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array


TIPS: Pressing the DES product may cause a black shadow on the display screen, which is considered a normal occurrence. The original display can be restored by update again. The product is currently undergoing research and improvement. For more information, please consult customer service.



☆ THE ABOVE PRICE INCLUDE

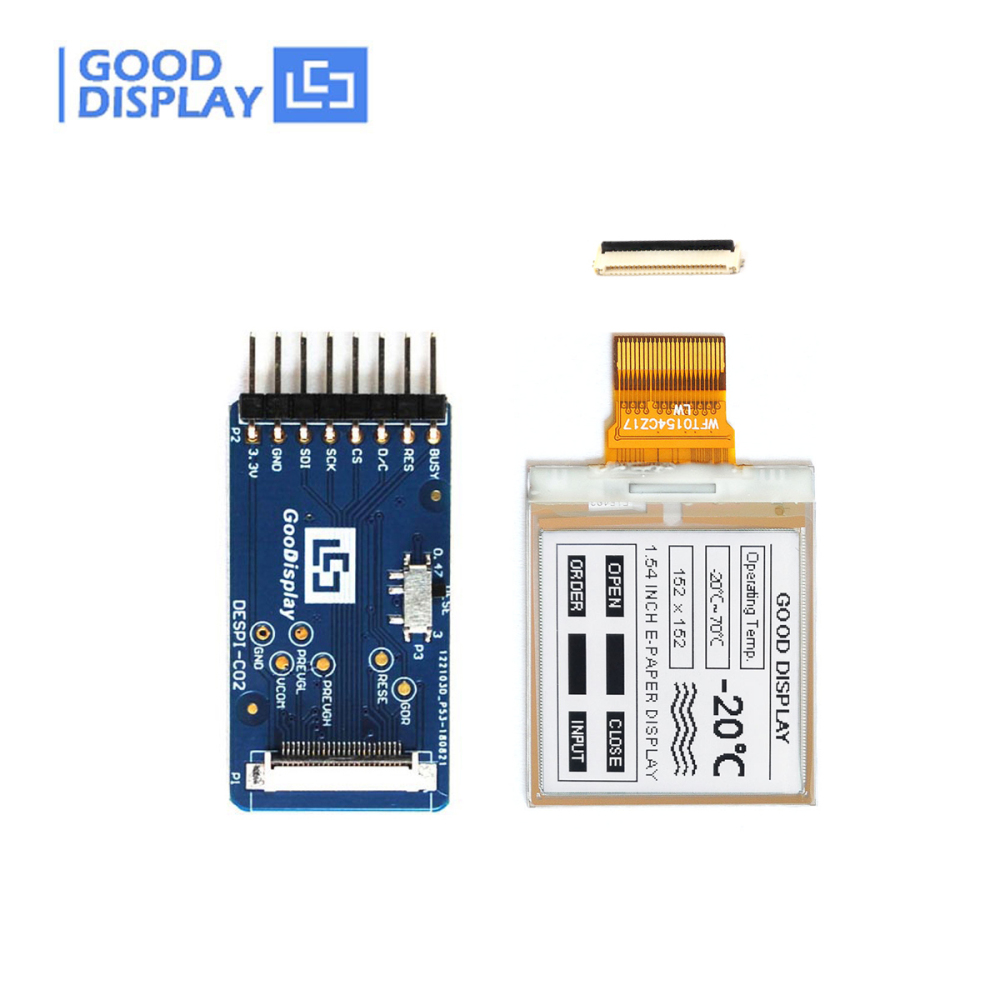

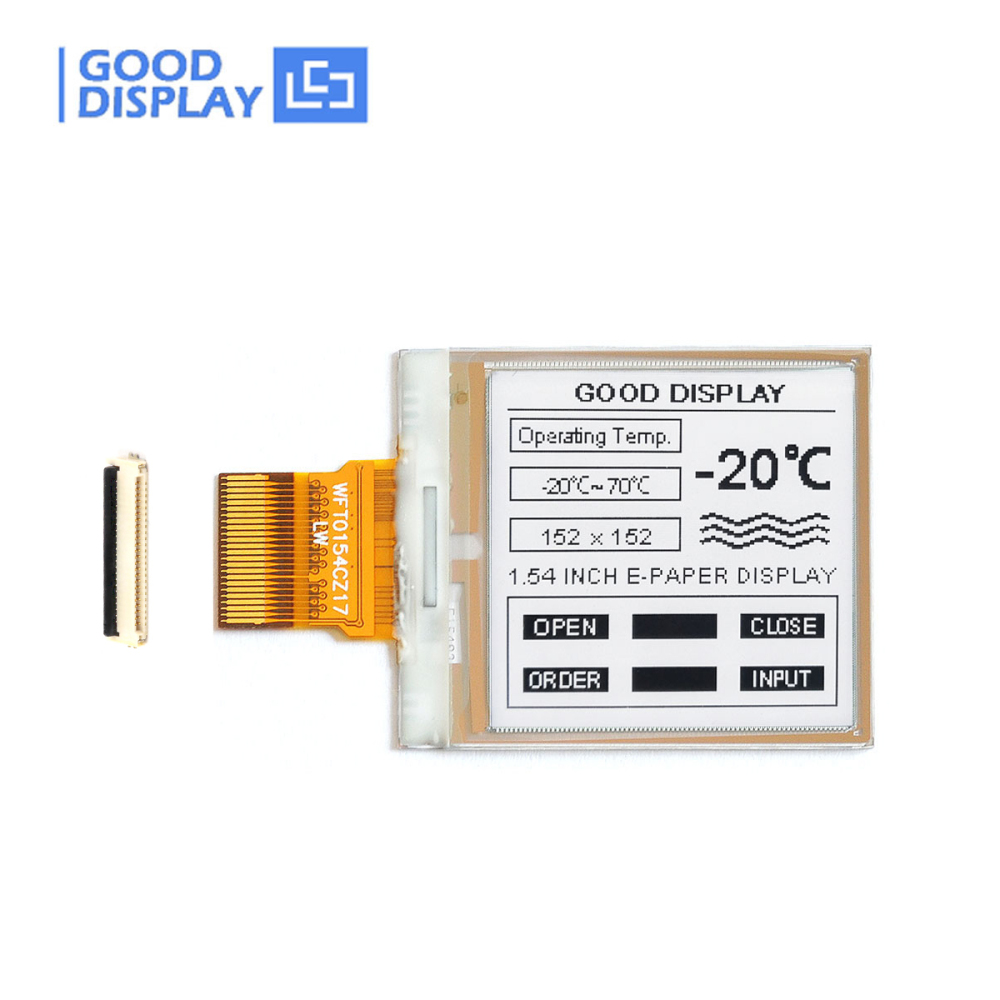

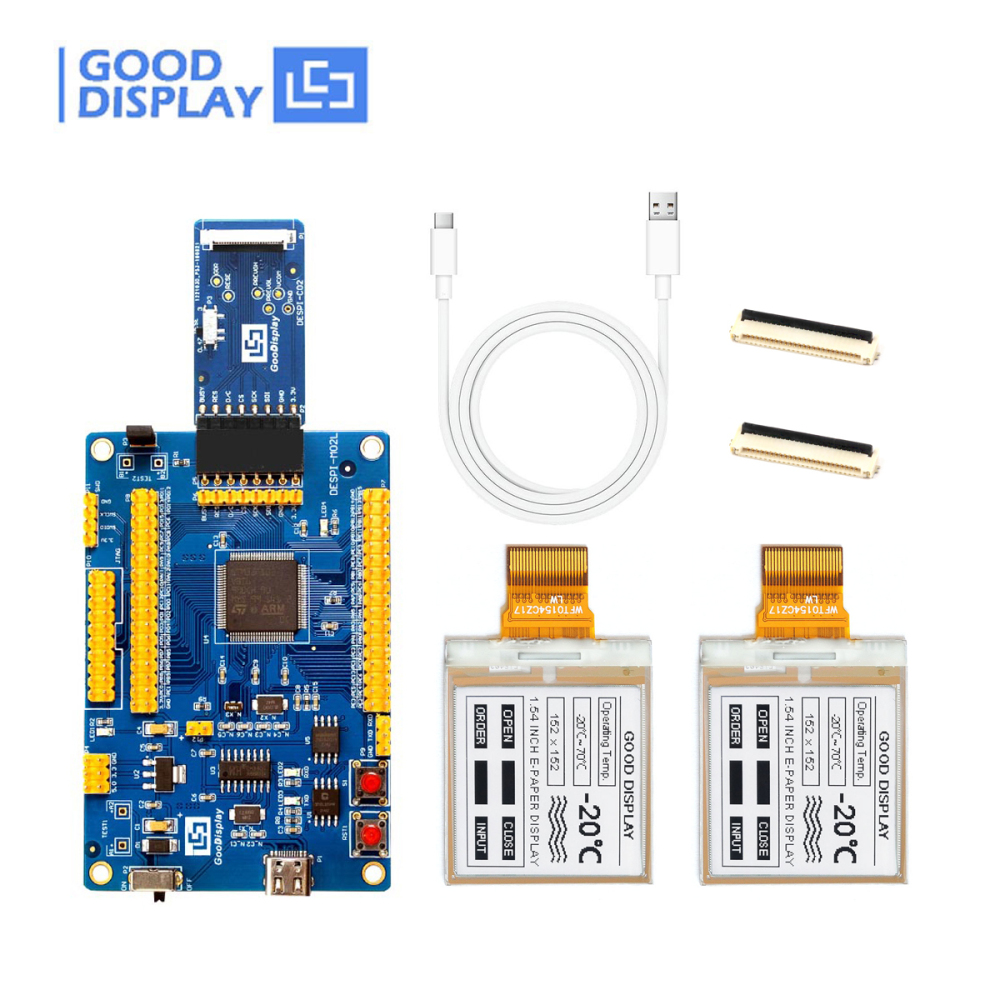

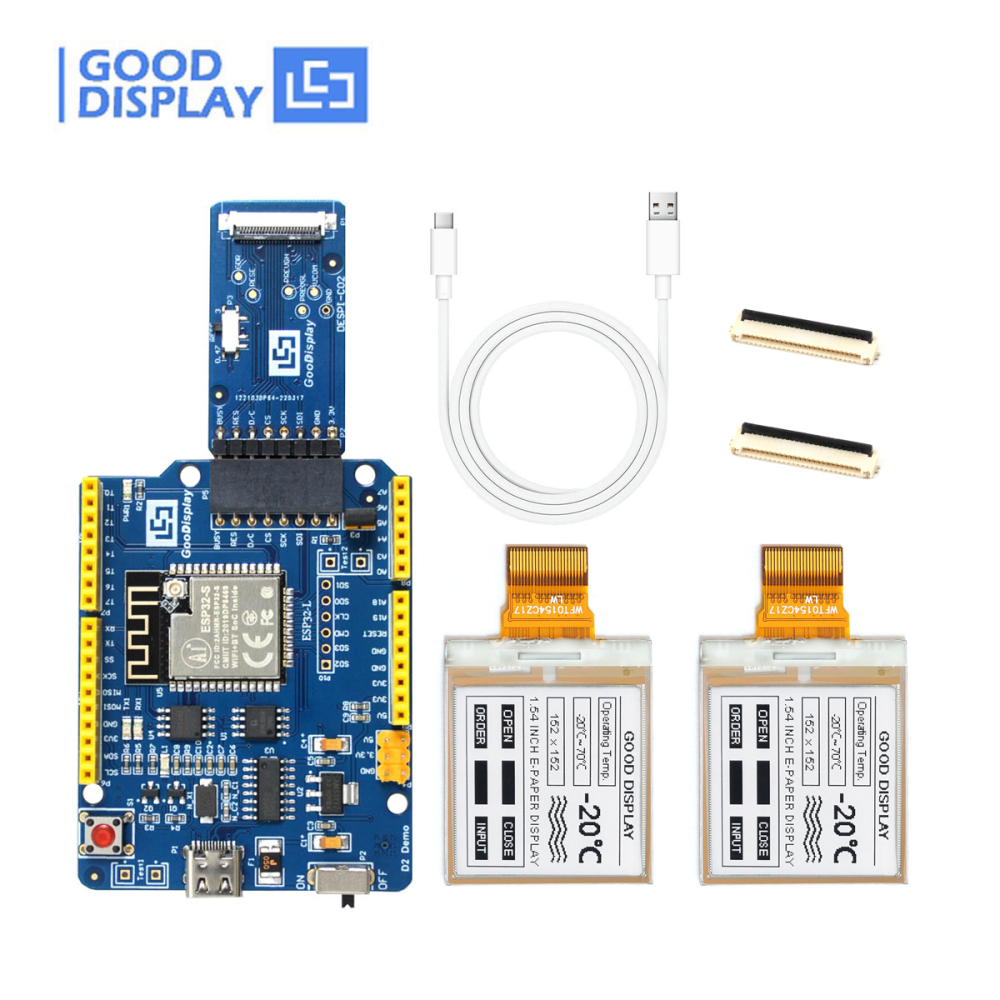

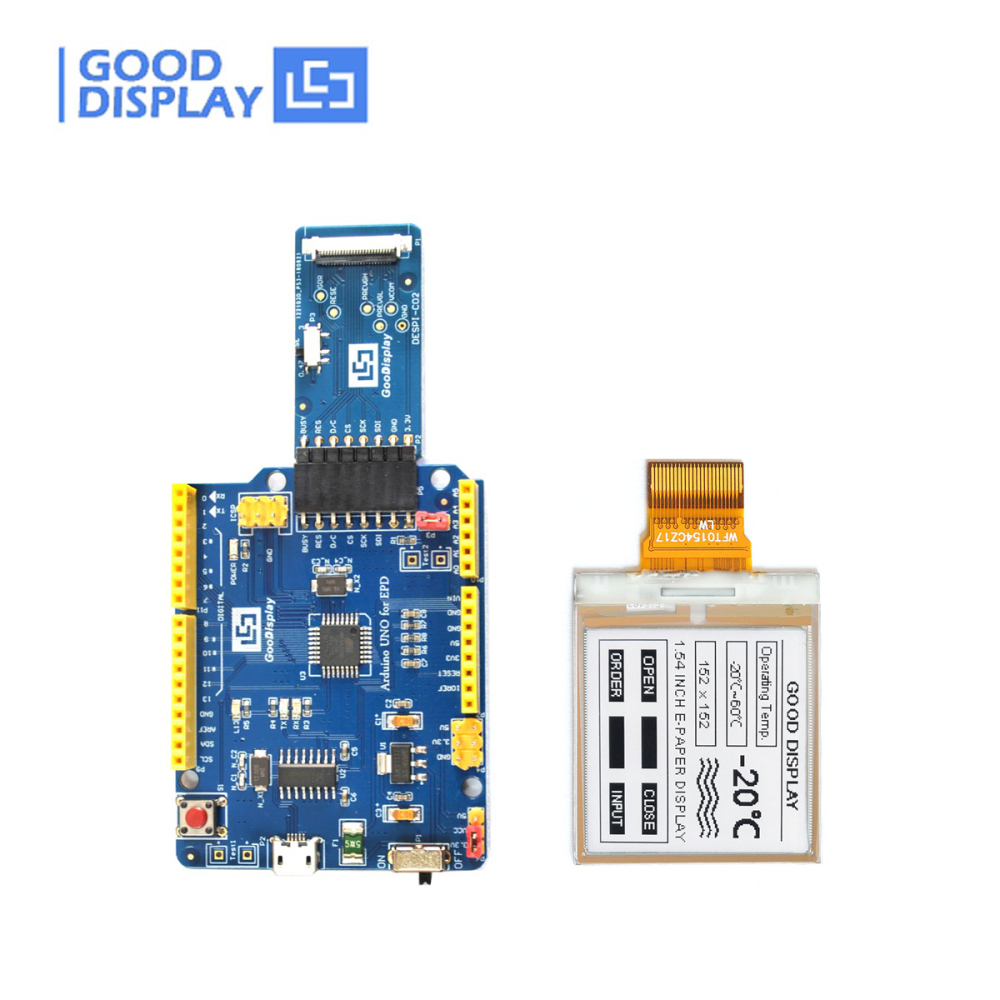

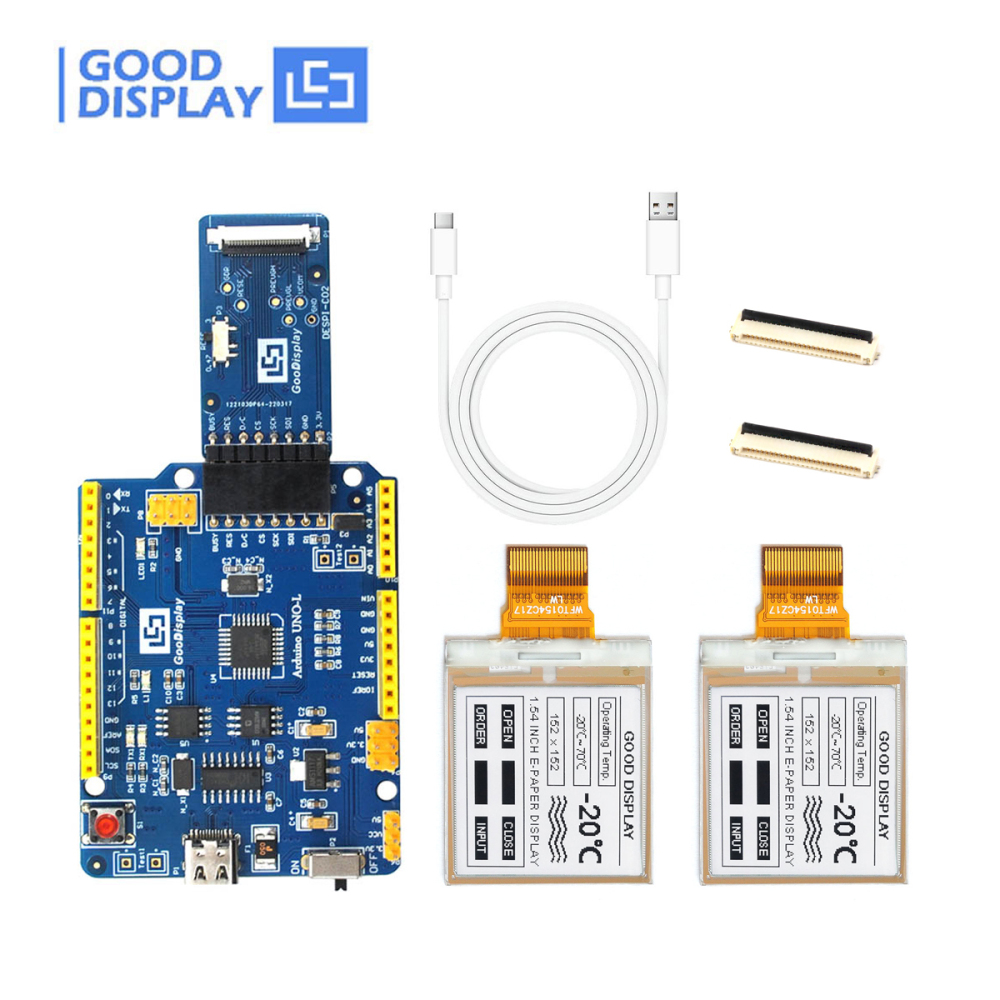

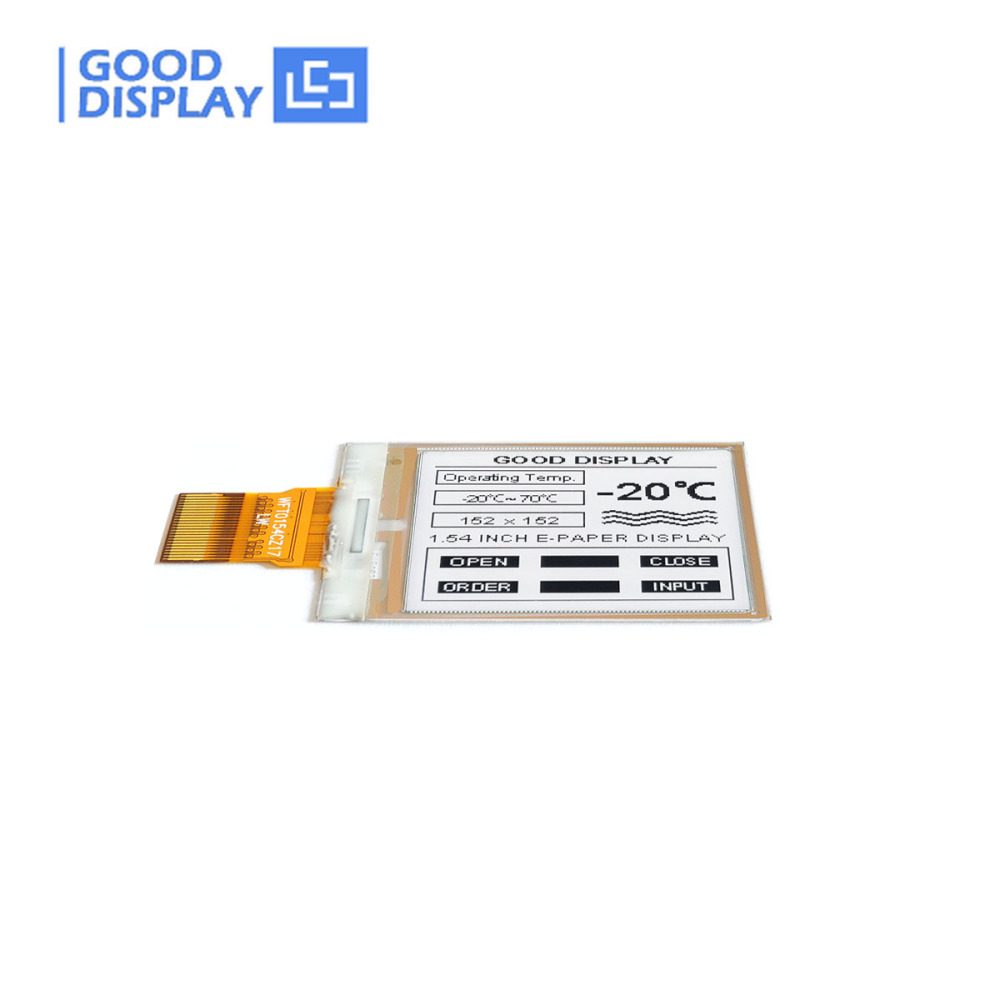

1) 1.54 inch DES e-paper display wide working temperature 152X152, GDEW0154M10 * 2pc
2) FPC Connector * 2pc

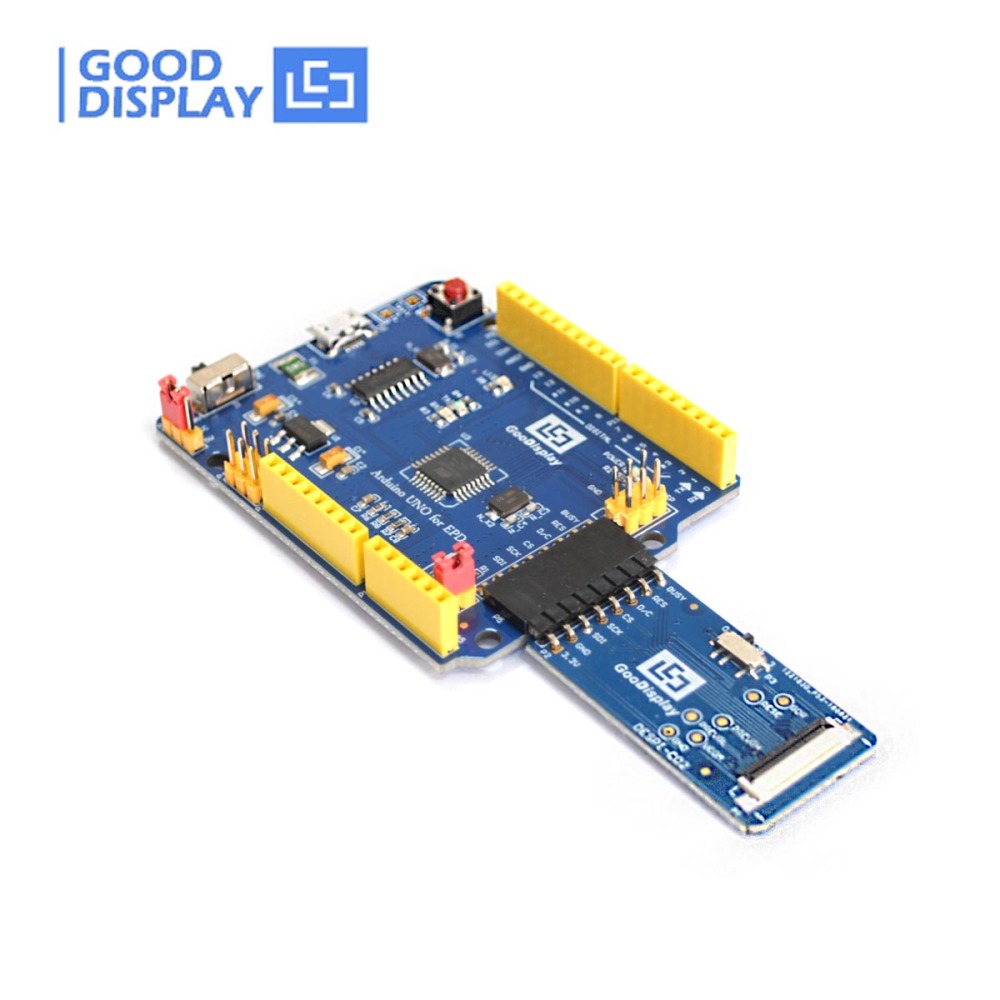

3) Driving board for Arduino Platform *1pc

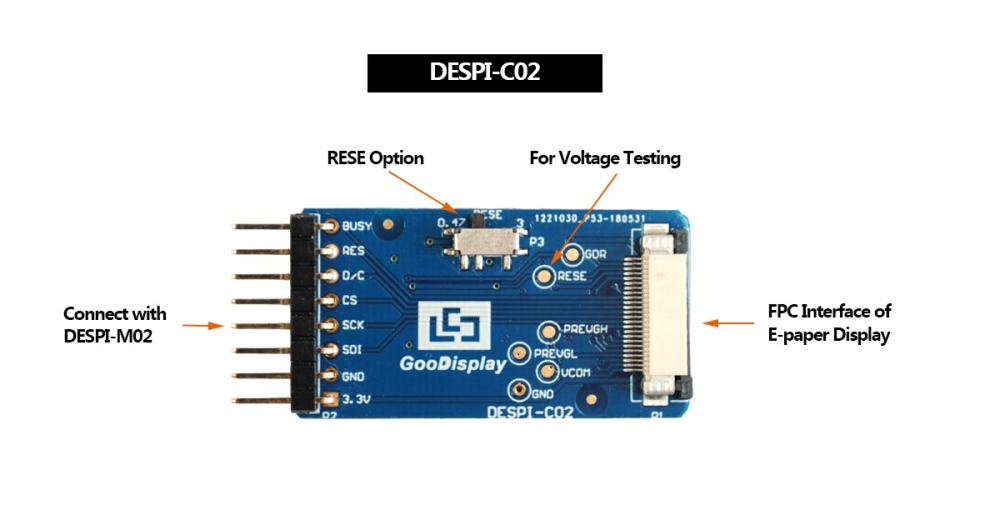

4) Connector board DESPI-C02 * 1pc
5) USB port cable *1pc




☆ MAIN PARAMETERS




PART NUMBER

GDEW0154M10

TECHNOLOGY

DES

STORAGE TEMP. -25℃~70℃

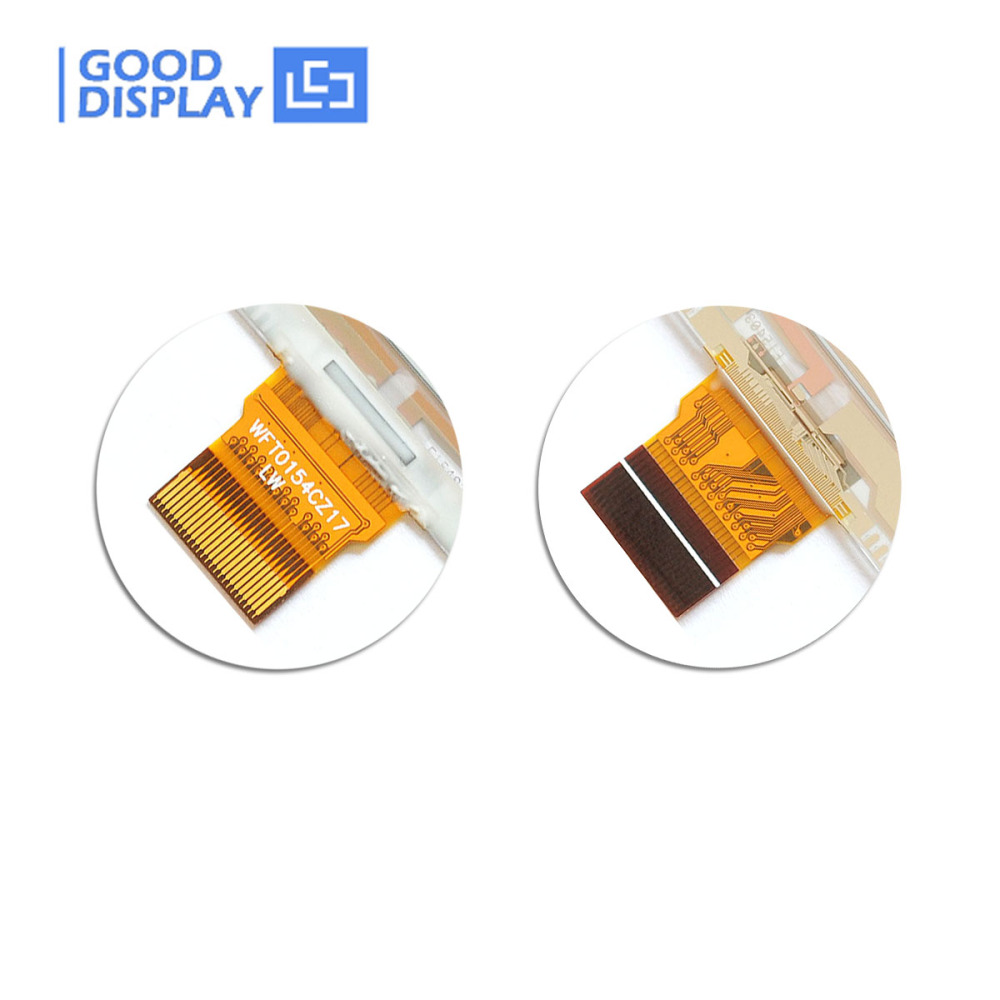

SIZE 1.54 inch CONNECTOR 24 Pin FPC

IC

UC8151D

MAX GRAYSCALE 2

RESOLUTION

152x152

COLOR Black,White

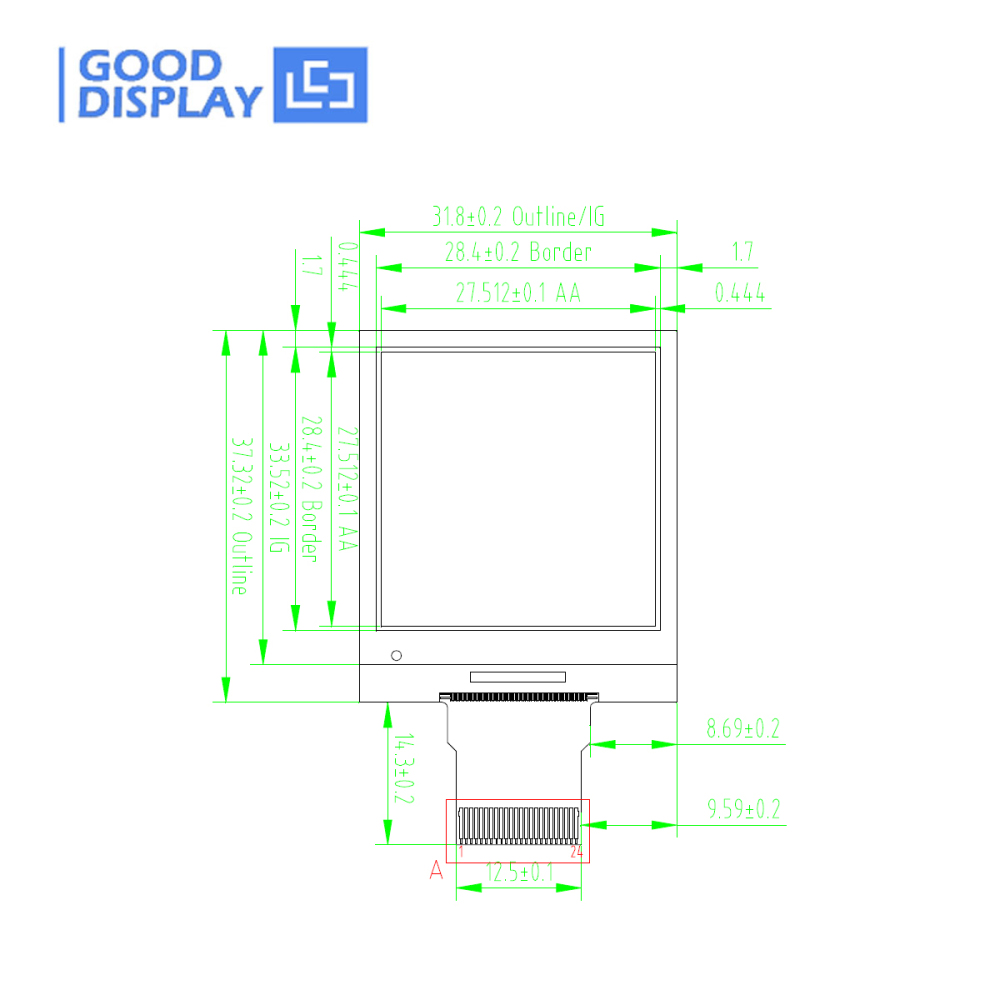

OUTLINE SIZE(mm)

31.8x37.32x1.02

INTERFACE SPI

ACTIVE SIZE(mm)

27.512x27.512

FULL REFRESH(s) 3

PIXEL PITCH(mm)

0.181x0.181

POWER CONSUMPTION OF THE REFRESH(mW) 18

OPERATING TEMP.

-10℃~60℃

STANDBY POWER CONSUMPTION (mW) 0.0165

PARAMETER SPECIFICATIONS
PLATFORM Arduino OUTSIDE DIMENSION (mm) 70x54
FUNCTION Drive E-paper Display POWER INTERFACE USB Interface
EXAMPLE CODE Available OPERATING TEMP. -20℃~70℃
MAIN FUNCTION 1. Learn how to drive E-Paper Display based on Arduino.
2. Test and evaluate the E-Paper Display.
3. Secondary development based on DEARDUINO.
ADDITIONAL FUNCTION USB to serial port, indicator, light, keys, current detection and so on.



☆ FEATURE




●  Black and white monochrome is easy to read
●  Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.26s/frame
●  Bistable. (Will continue to display with no power source)
●  I2C Signal Master Interface to read external temperature sensor




☆ DETAILS






☆ RELATED INFORMATION DOWNLOAD



● GDEW0154M10 Specification

● IC Driver UC8151D

● GDEW0154M10 STM32 Sample Code

● GDEW0154M10 Arduino Sample Code

● GDEW0154M10 ESP8266 Sample Code

● GDEW0154M10 ESP32 Sample Code

● GDEW0154M10 Raspberry Pi Pico Sample Code


● DEArduino-L(C102) Specification

● DEArduino-L UNO for EPD-SCH

● DESPI-C102 Specification

● DESPI-C102-SCH
