16x1 character yellow and green LCD display module YM1601A

YM1601A
16x1 character yellow and green LCD display module YM1601A, Operating Temperature -10~60℃, with LED backlight.
Price:
USD
$3.36
Quantity:
-
+
(100 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews



☆ MAIN PARAMETERS






Manufacturer GOOD DISPLAY
Part Number YM1601A
Outline Dimension 80.0x36.0x13.0 mm
View Area(W×H)  64.5x14.0 mm
Dot Size(W×H) 0.60x0.70 mm

 Operating Temp

-10~60℃

 Storage Tempe

-20~70℃

Dot Pitch(W×H) 0.65x0.75 mm
Char Size(W×H) 3.05x5.66 mm
Controller KS0066U
Operating voltage 5V
Package COB
Backlight LED






☆ INCLUDING



1) 16x1 character yellow and green LCD display module * 1 pc

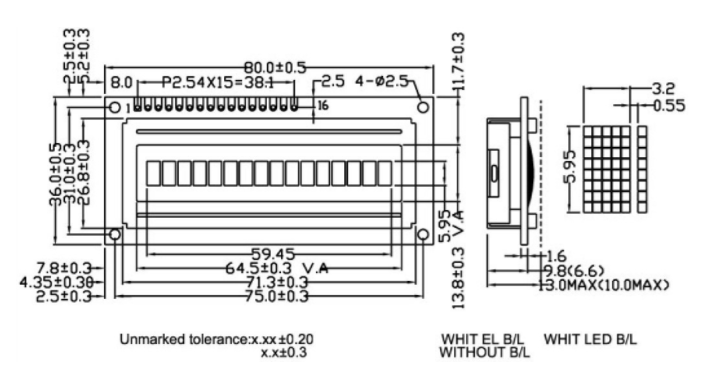

☆ DRAWING
