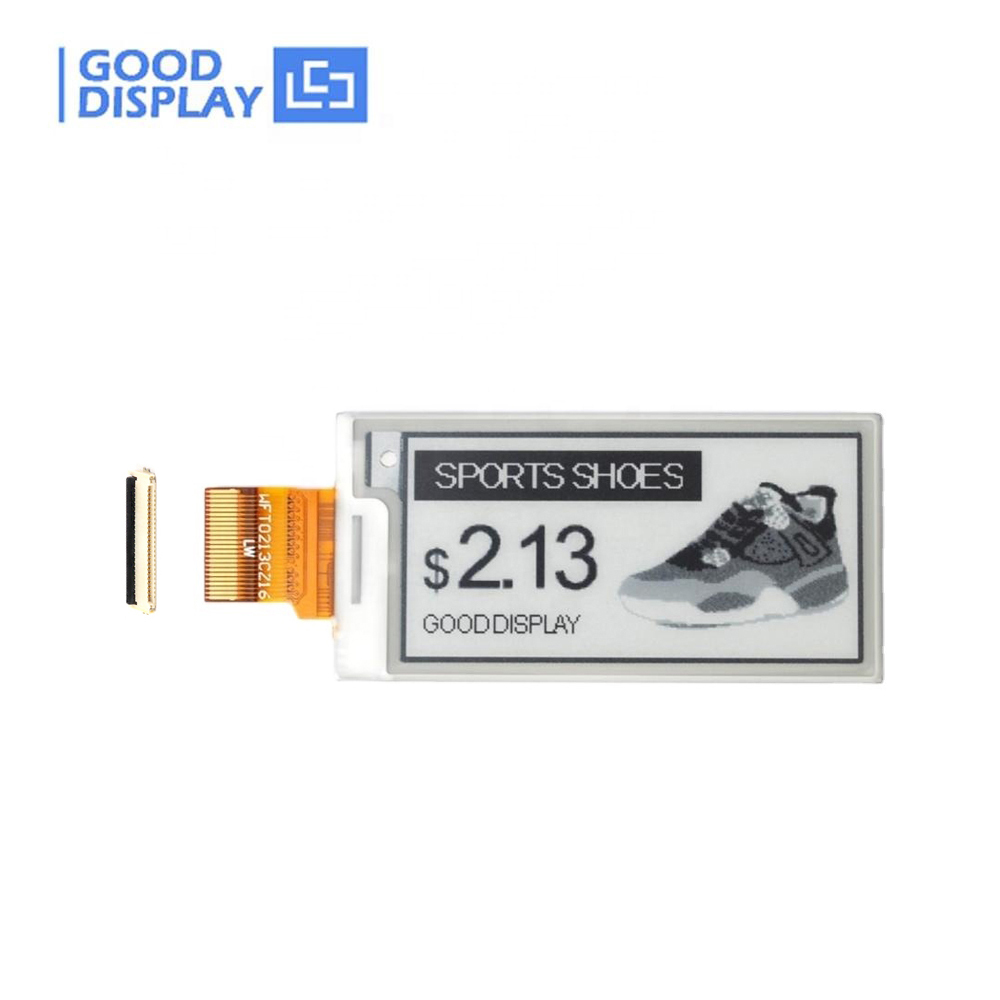

2.13 inch e-ink display black and white 4 Grayscale electronic paper screen partial refresh e-paper GDEW0213T5D

GDEW0213T5D

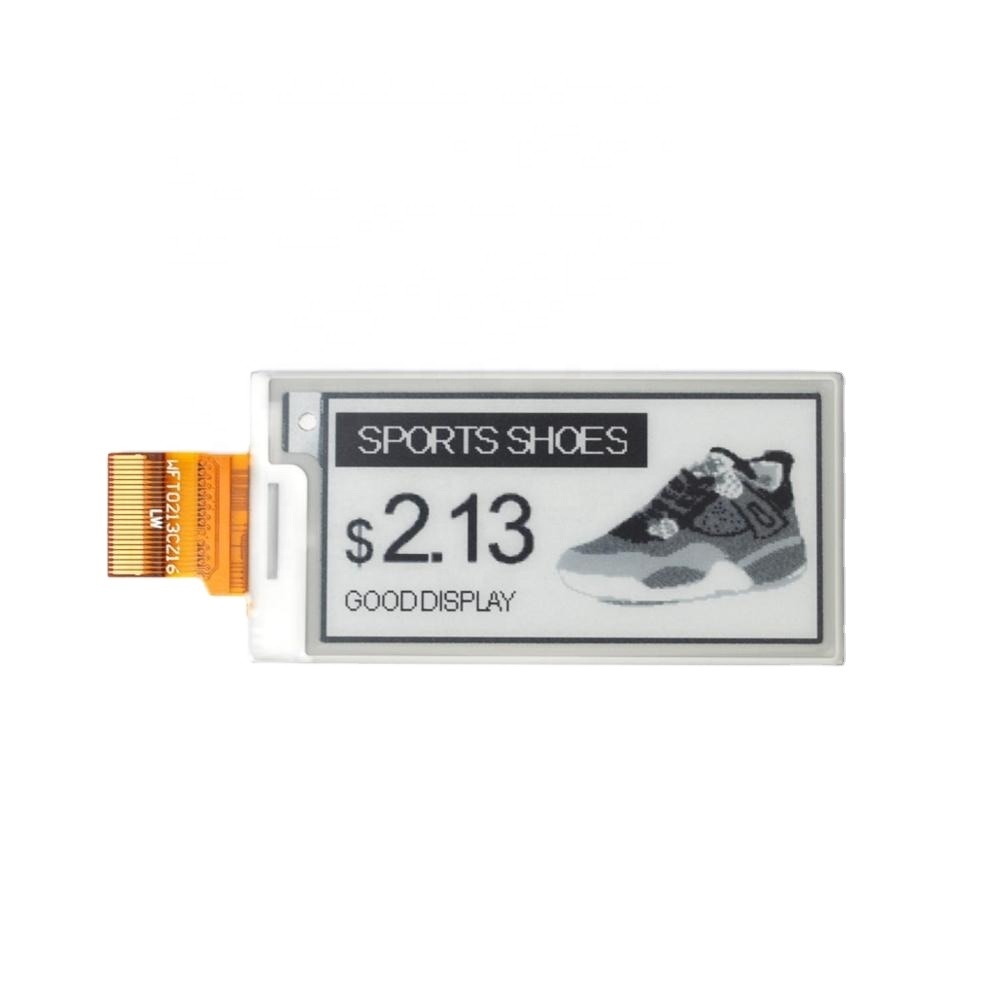

This is an E ink E paper display panel, 2.13 inch, 212*104 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, 4 Grayscale,  supports black and white.
Price:
USD
$5.80
Wholesale:
1+
$5.80
  • Product:
    EPD
    EPD with adapter board DESPI-C02
    EPD with demo kit DESPI-L(C02)
    EPD with demo kit DEArduino-L(C02)
    EPD with demo kit ESP8266-L(C02)
    EPD with demo kit ESP32-L(C02)
    adapter board
Quantity:
-
+
(50 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(2)



☆ INTRODUCTION




This is a 2.13 inch e-paper screen with 212x104 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 3s full refresh and 0.3s partial refresh. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW0213T5D is perfect for low power devices powered by solar or batteries.



We provide the E-Ink Adapter Board for you to connect the E-paper Display.


We could provide front light, touch screen and other accessories for you.

Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.




☆ THE ABOVE PRICE INCLUDE



Package A +

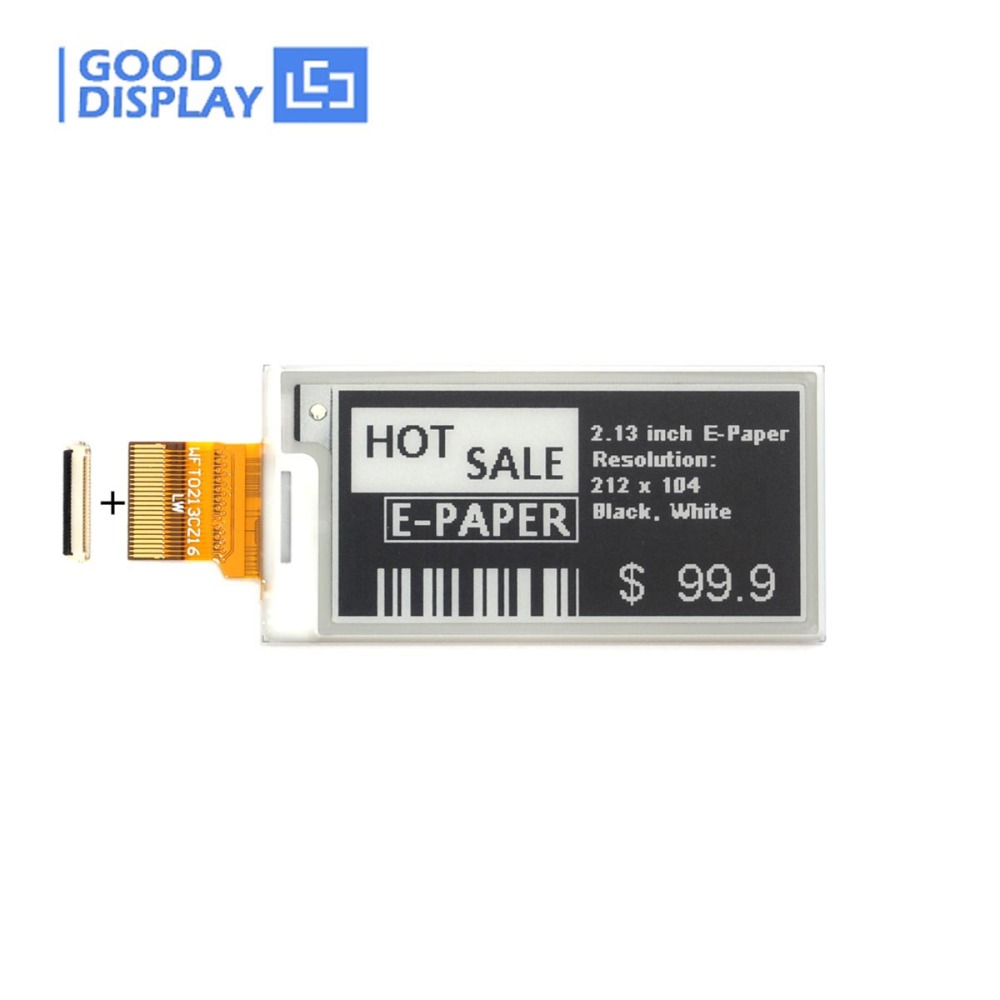

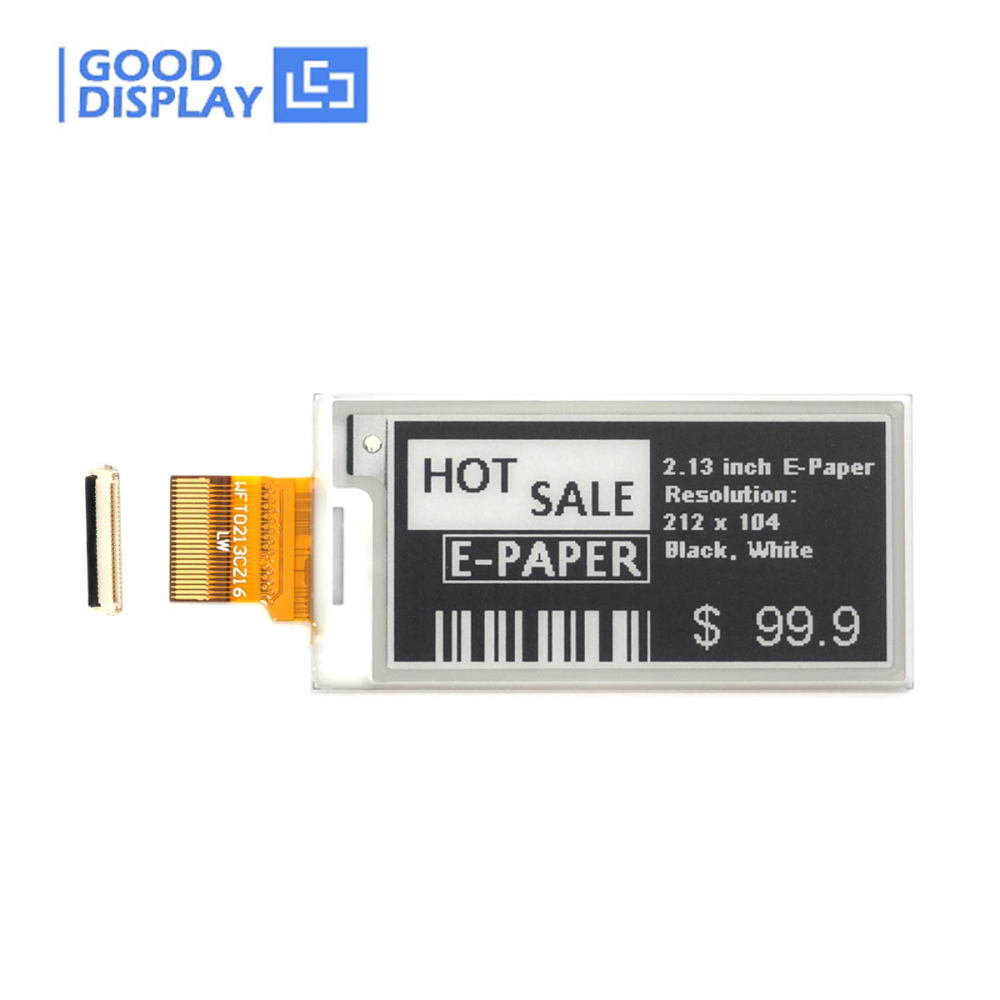

  a. 2.13 inch e-ink display black and white 4 Grayscale electronic paper screen partial refresh e-paper GDEW0213T5D  * 1pc   b. FPC Connector * 1pc



Package B + +

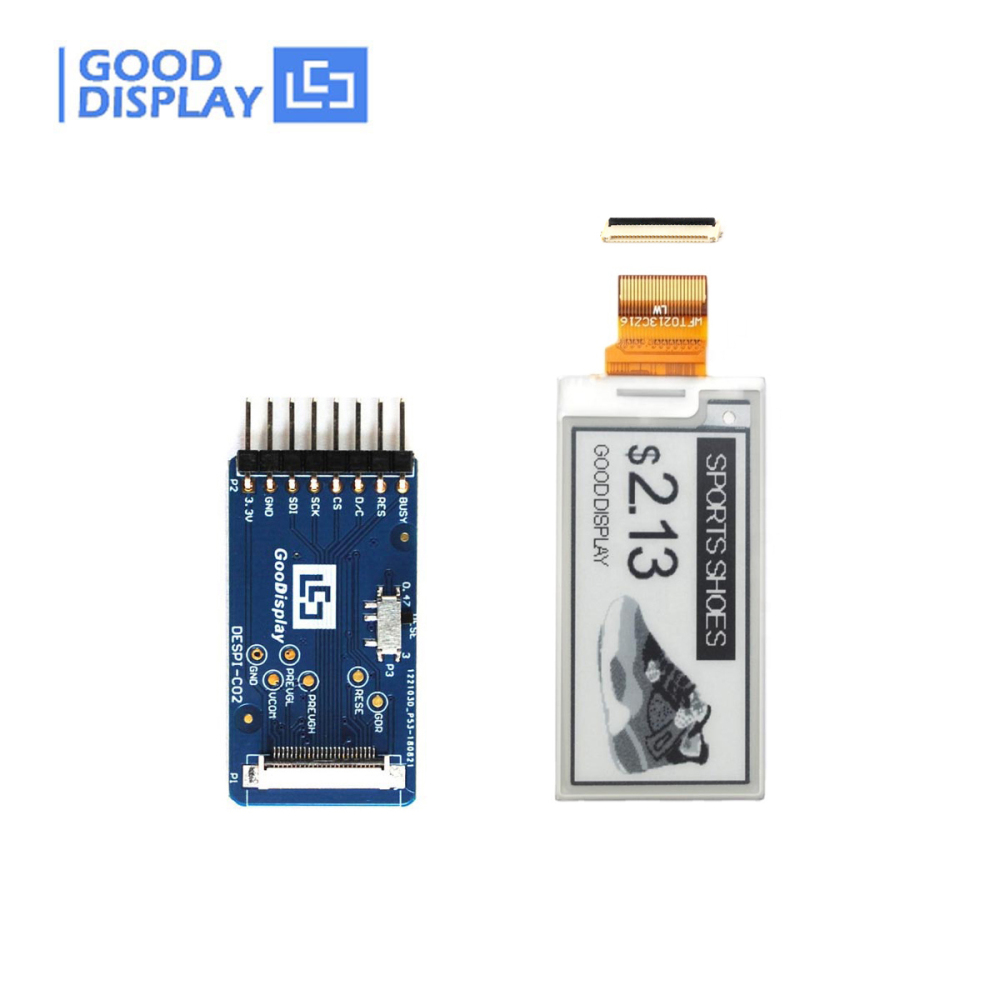

  a. 2.13 inch e-ink display black and white 4 Grayscale electronic paper screen partial refresh e-paper GDEW0213T5D  * 1pc   b. FPC Connector * 1pc   c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc

Package C + + +

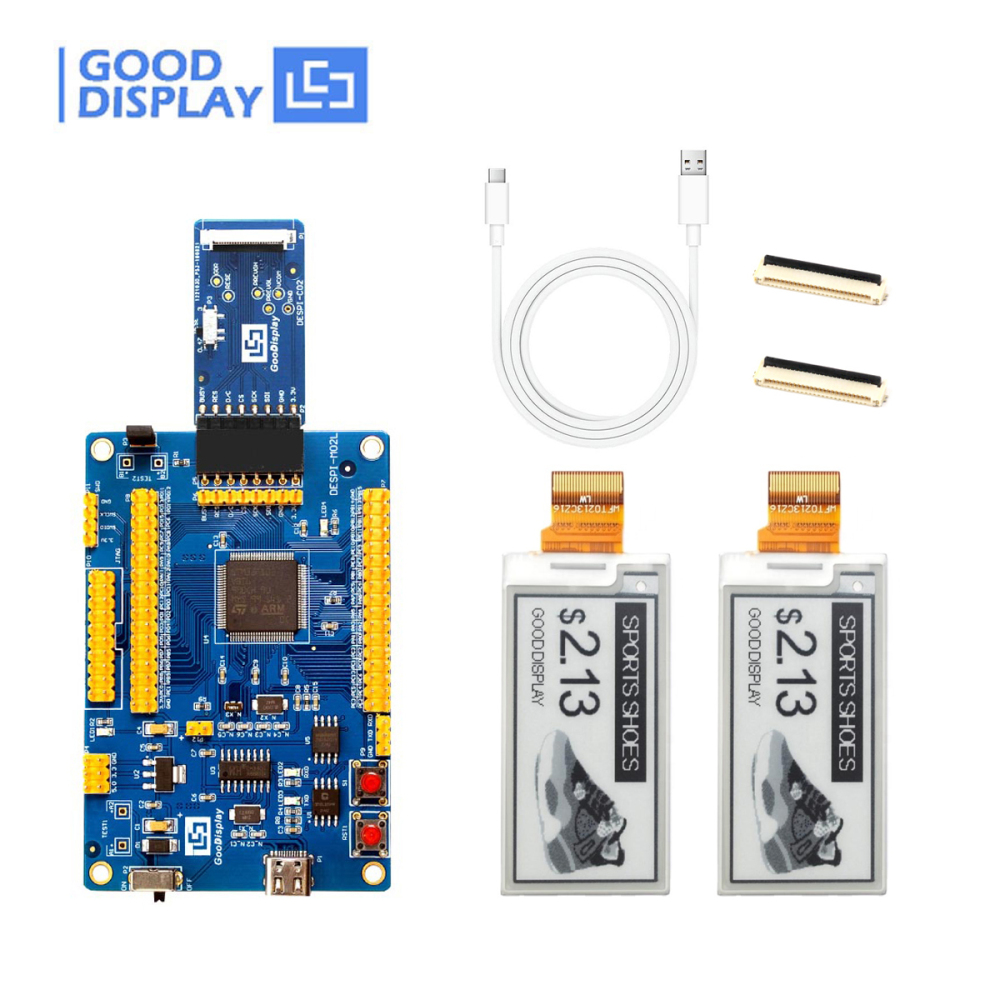

a. 2.13 inch e-ink display black and white 4 Grayscale electronic paper screen partial refresh e-paper GDEW0213T5D  * 2pcs   b. FPC Connector * 2pcs   c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02)* 1pc   d. USB Cable* 1pc

Package D

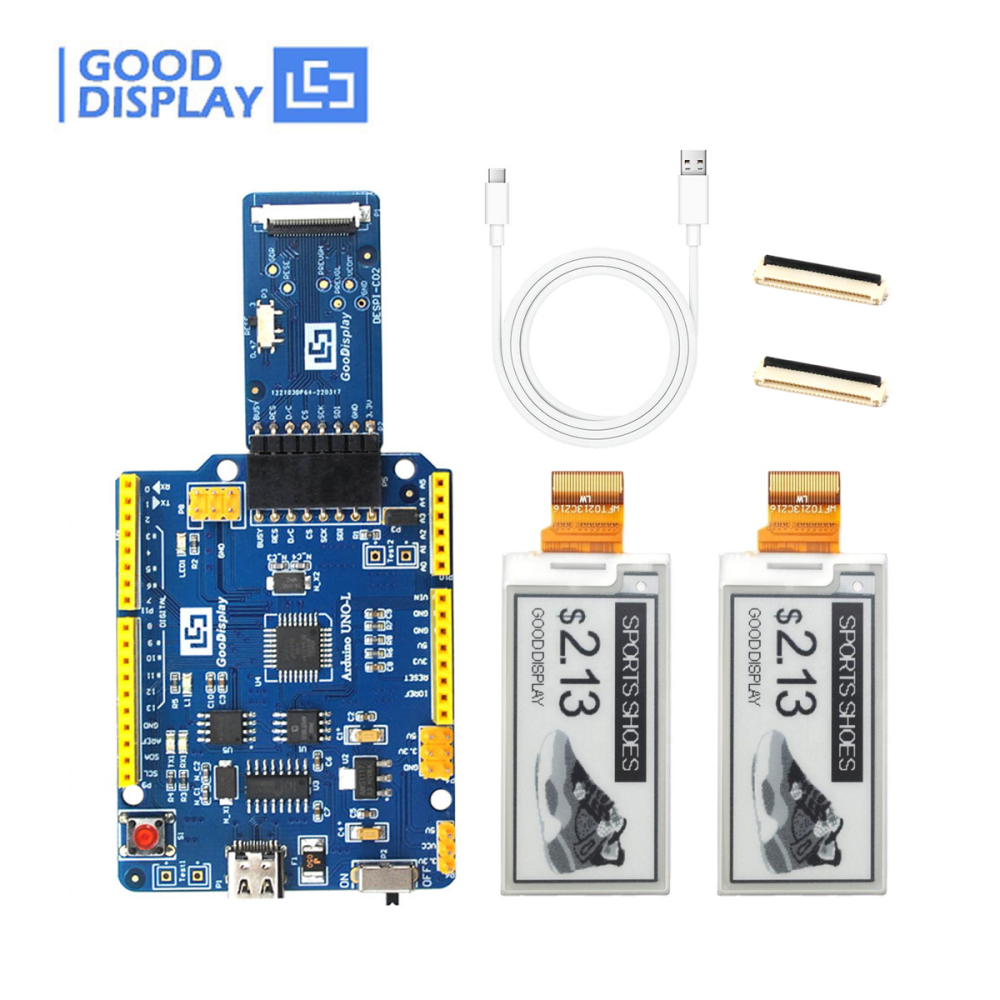

a. 2.13 inch e-ink display black and white 4 Grayscale electronic paper screen partial refresh e-paper GDEW0213T5D  * 2pcs   b. FPC Connector * 2pcs   c.Arduino E-paper Driving Board Type-C Interface EPD development kit, DEArduino-L(C02)* 1pc   d. USB Cable* 1pc

Package E

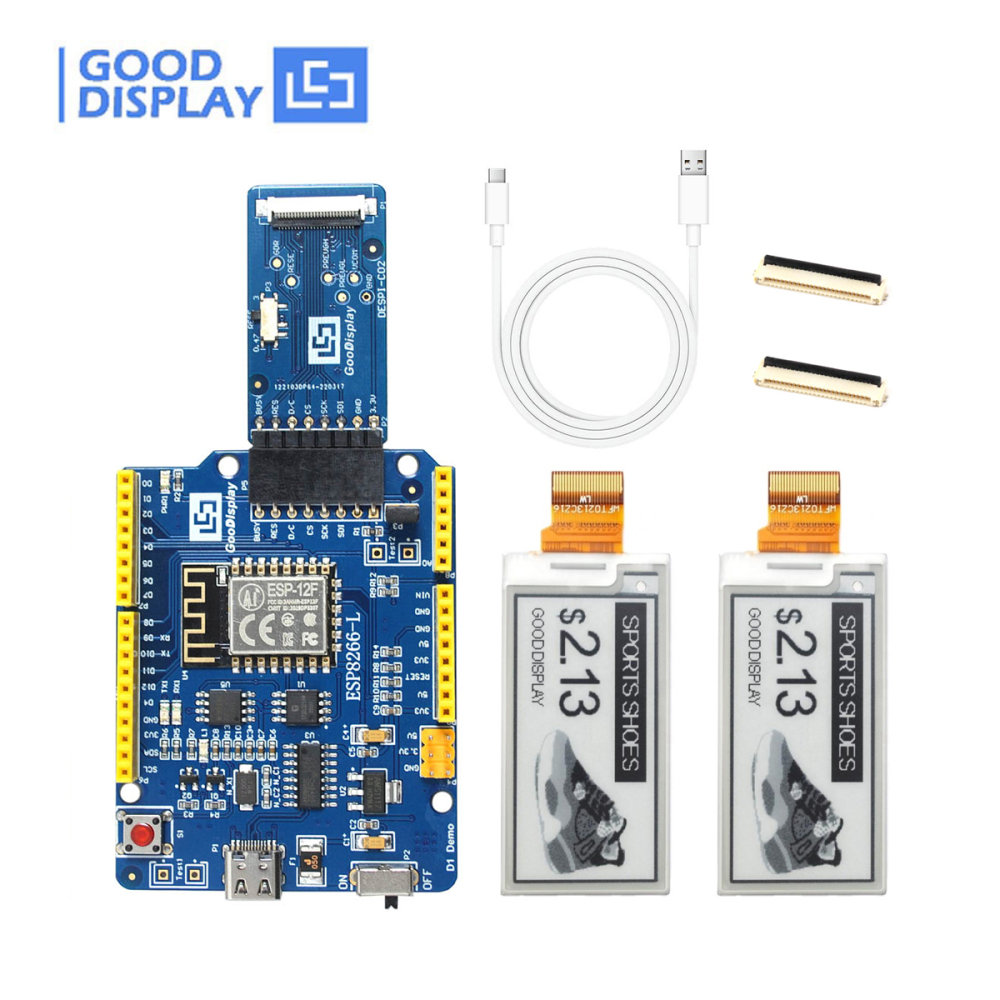

a. 2.13 inch e-ink display black and white 4 Grayscale electronic paper screen partial refresh e-paper GDEW0213T5D  * 2pcs   b. FPC Connector * 2pcs   c. ESP8266 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP8266-L(C02)* 1pc   d. USB Cable* 1pc

Package F + + +

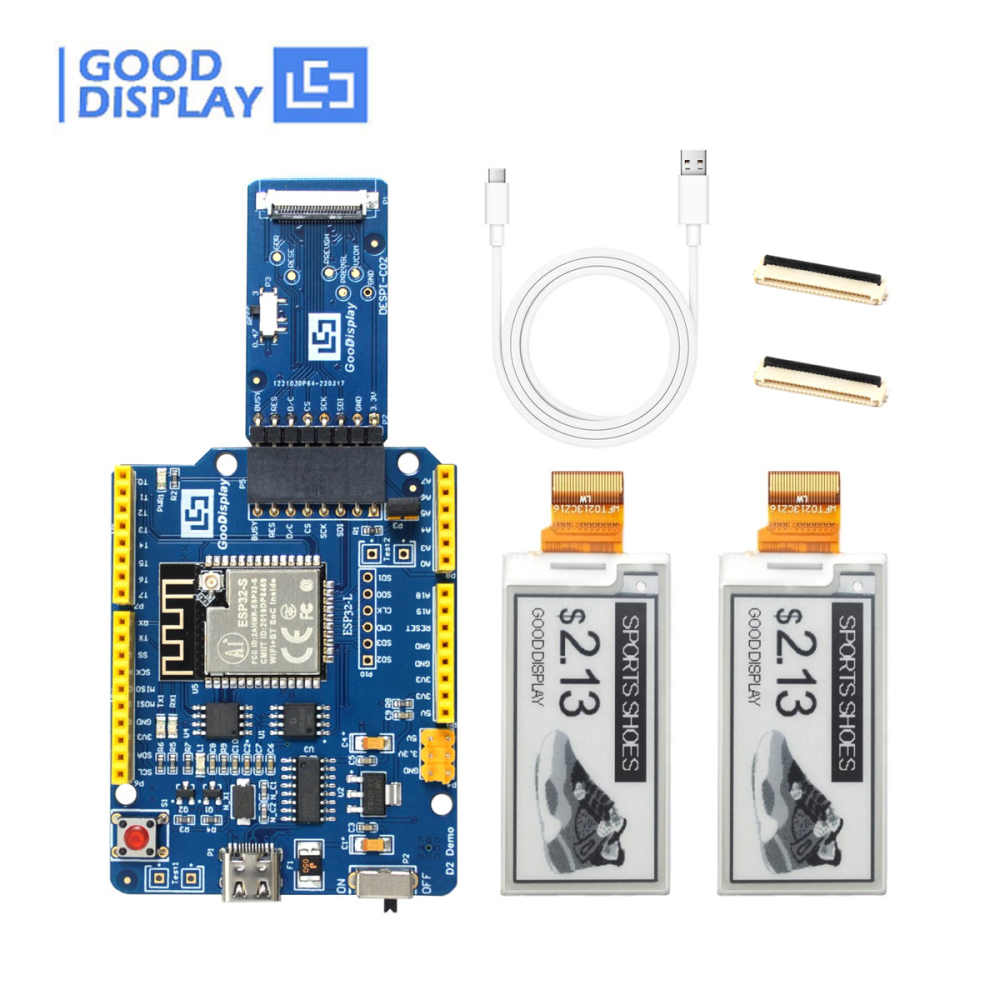

a. 2.13 inch e-ink display black and white 4 Grayscale electronic paper screen partial refresh e-paper GDEW0213T5D  * 2pcs   b. FPC Connector * 2pcs   c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02)* 1pc   d. USB Cable* 1pc



☆ MAIN PARAMETERS




PART NUMBER

GDEW0213T5D

TYPE

Dot Matrix

CONNECTOR 24 Pin FPC

SIZE

2.13 inch

MAX GRAYSCALE 4

IC

UC8151D

COLOR Black,White

RESOLUTION

212x104

INTERFACE SPI

OUTLINE SIZE(mm)

59.2x29.2x0.98

FULL REFRESH(s) 3

ACTIVE SIZE(mm)

48.55x23.71

PARTIAL REFRESH TIME(s) 0.3

PIXEL PITCH(mm)

0.229x0.228

POWER CONSUMPTION OF THE REFRESH(mW) 26.4

OPERATING TEMP.

0℃~50℃

STANDBY POWER CONSUMPTION (mW) 0.0165

STORAGE TEMP.

-25℃~70℃





☆ FEATURE




●  Support 4 Grayscale
●  Black and white monochrome is easy to read
●  Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.3s/frame
●  Bistable. (Will continue to display with no power source)
●  I2C Signal Master Interface to read external temperature sensor

●  Development platform available STM32 / ArduinoRaspberry Pi / ESP8266 / ESP32

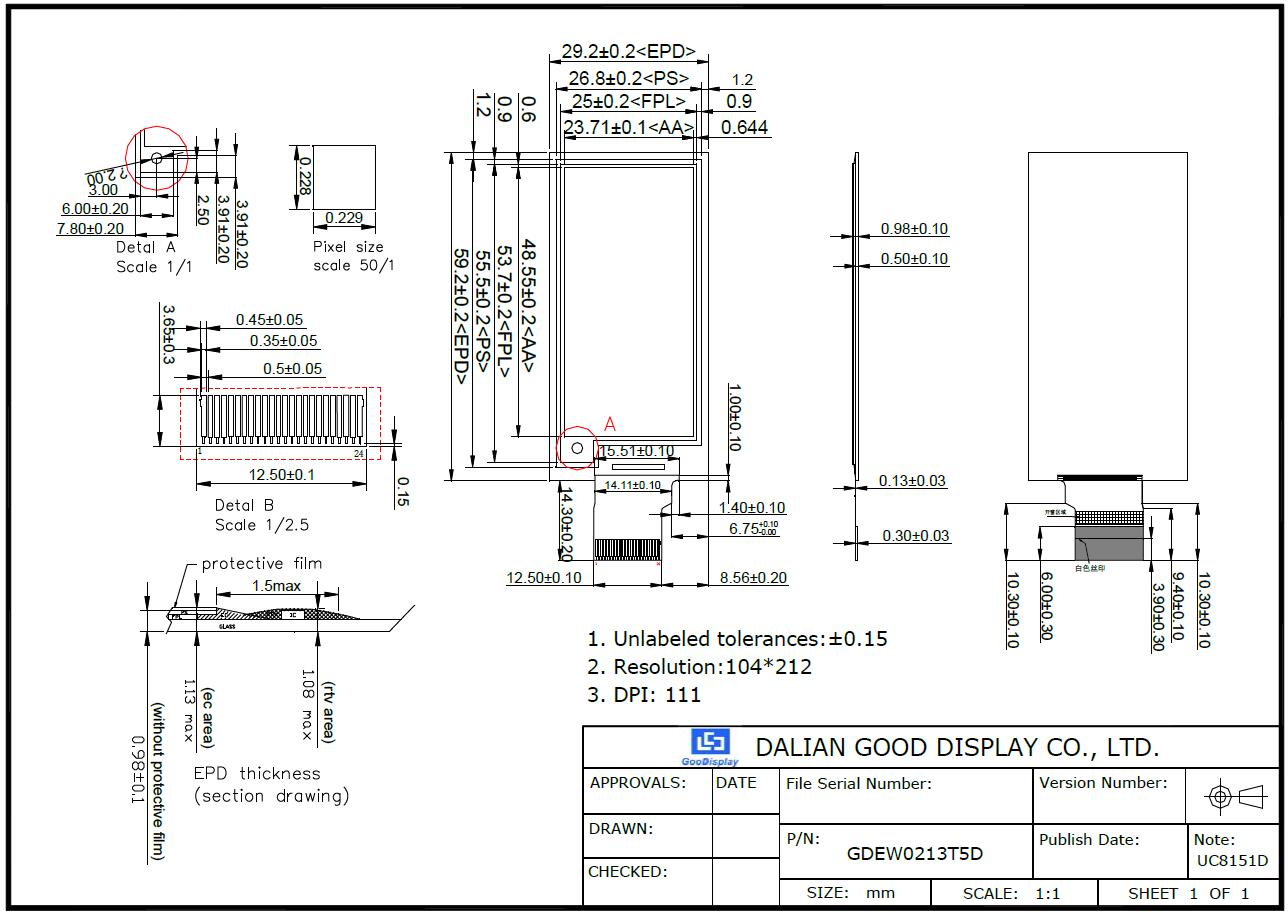

☆ DRAWING









☆ MATCHED DEVELOPMENT KIT




● DESPI-C02 (E-ink Display HAT)

● DESPI-L(C02) (STM32 Platform/Universal)



● DEArduino-L(C02) (Arduino Platform)


● ESP8266-L(C02) (WiFi)


● ESP32-L(C02) (WiFi / Bluetooth)


● DESPI-PICO (Rasberry Pi Epaper HAT)



☆ RELATED INFORMATION DOWNLOAD



● GDEW0213T5D Specification

● IC Driver UC8151D

● IC UC8151C to IC UC8151D Instructions

● GDEW0213T5D STM32 Sample Code

● GDEW0213T5D Arduino Sample Code

● GDEW0213T5D ESP8266 Sample Code

● GDEW0213T5D Raspberry Pi Pico Sample Code

● GDEW0213T5D ESP32 Sample Code
