2.7 inch eink epaper display 264x176 dots 4 Grayscale with development demo kit

GDEW027W3+DESPI
The display is a TFT active matrix electrophoretic display, with interface and a reference system design. The 2.7” active area contains 264×176 pixels, 4 Grayscale. Support partial refresh, black and white.
Price:
USD
$42.03
Quantity:
-
+
(50 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




This is a set of development kit with 2.7 inch small e-ink display with 264x176 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW027W3 is perfect for low power devices powered by solar or batteries.

This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)

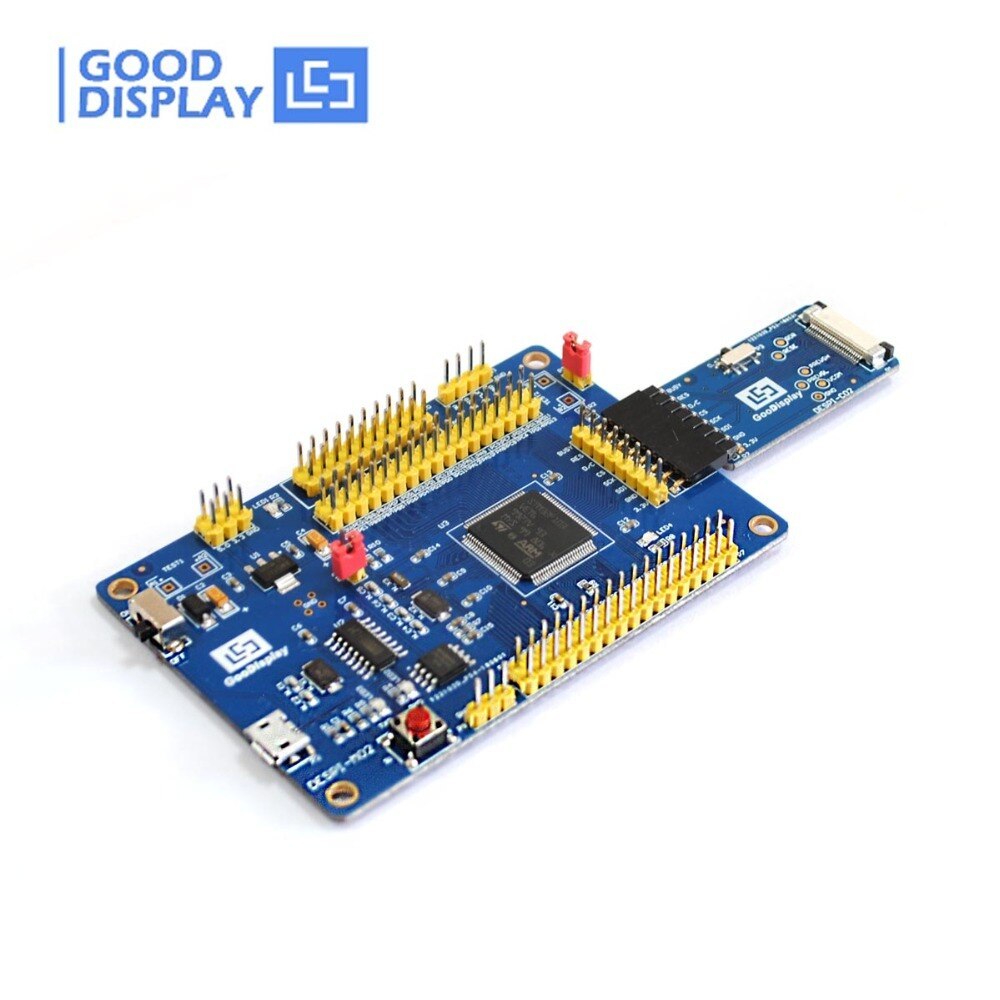

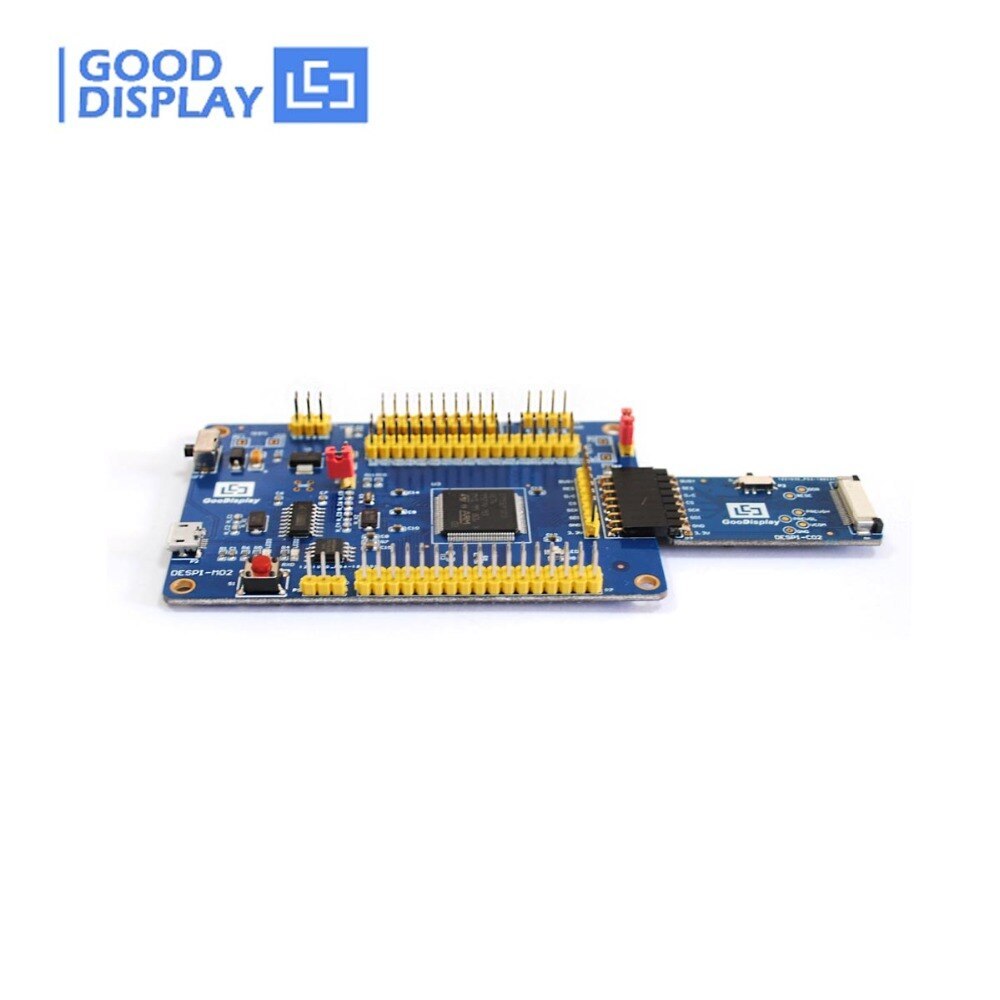

This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. And it is added the functions of USB serial port and LED indicator light ect. It also supports being updated by computer directly.



We could provide front light, touch screen and other accessories for you.

Relevant manual about this product on our official website (www.good-display.com), contact us please.

Use our free e-paper software to prepare your bitmap image for this display.











 FEATURE




●  Support 4 Grayscale

●  Black and white monochrome is easy to read

●  Versatile. Use in portrait or landscape format

●  It supports partial refresh, the refresh rate is 0.3s/frame

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor

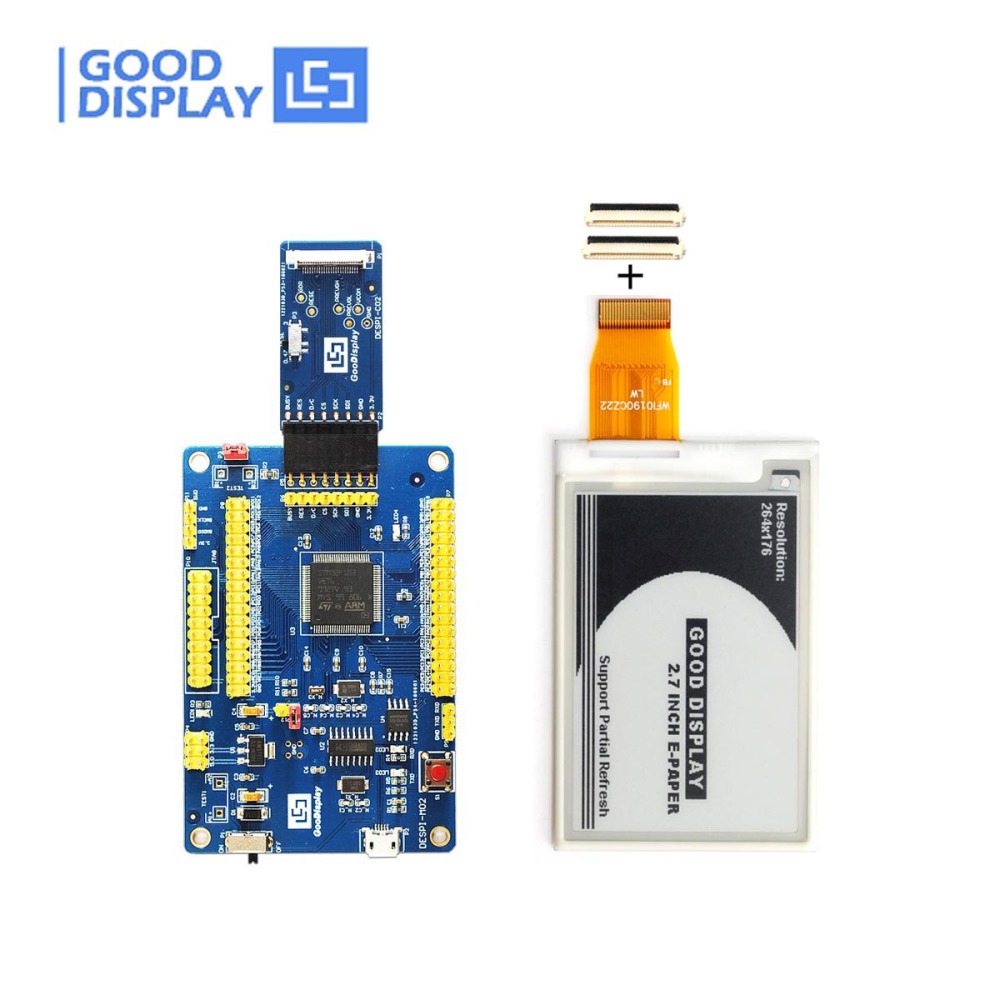

 THE ABOVE PRICE INCLUDE



1) Driving board DESPI-M01 *1pc
2) Connector board DESPI-C01 *1pc
3) USB port cable *1pc
4) Connection cable*1pc
5) 2.7 inch 264x176 display*2pcs
6) Matched FPC Connector*2pcs









 MAIN PARAMETERS




PART NUMBER

GDEW027W3

TYPE

Dot Matrix

SIZE

2.7 inch

IC

EK79652

RESOLUTION

264x176

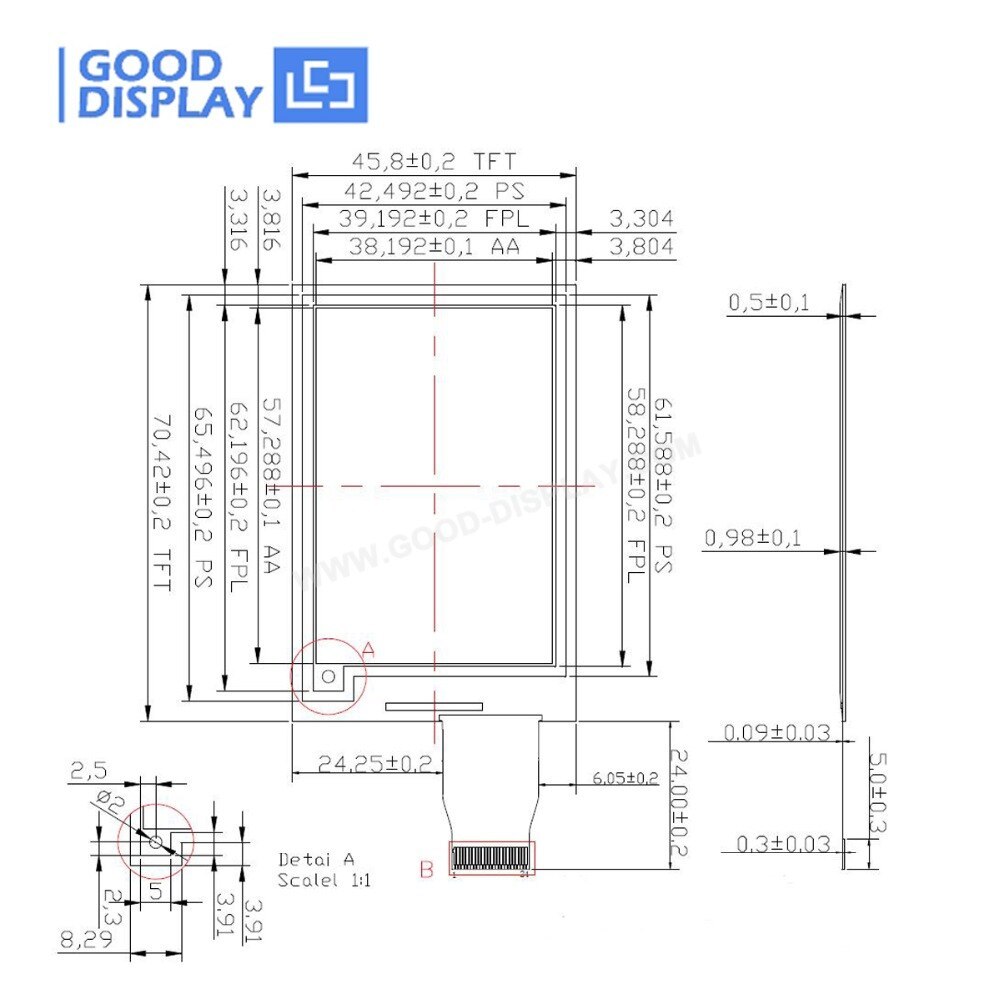

OUTLINE SIZE(mm)

70.42x45.8x0.98

ACTIVE SIZE(mm)

57.288x38.192

PIXEL PITCH(mm)

0.217x0.217

OPERATING TEMP.

0℃~50℃

STORAGE TEMP.

-25℃~70℃

CONNECTOR

24 Pin FPC

MAX GRAYSCALE

4

COLOR

Black,White

INTERFACE

SPI

FULL REFRESH(s)

3

PARTIAL REFRESH TIME(s)

0.3

POWER CONSUMPTION OF THE REFRESH(mW)

26.4

STANDBY POWER CONSUMPTION (mW)

0.0165






PART NUMBER

DESPI

PLATFORM

STM32

FUNCTION

Drive E-paper Display

OUTSIDE DIMENSION

90x60mm(DESPI-M02)

41x22mm(DESPI-C02)

INTERFACE

USB

POWER INPUT

DC5V

FEATURE

Fully and Partial Refresh

OPERATING TEMP.

-20℃~70℃

RECOMMENDED

Keil 4










☆ OTHER PRODUCTS




Part Number

Color

IC

Resolution

Features

Refresh Time

GDEW027W3

 B/W

EK79652

264x176

Partial refresh, 4 Grayscale

3s

GDEW027W3-T

B/W EK79652

264x176

Partial refresh, touch screen, 4 Grayscale

3s
