2.7-Inch ePaper Display with Red Tri-color, 1.8s Partial Update E Ink Screen

GDEM027Z71
This is a 2.7 inch e-ink screen with 264x176 resolution, SPI interface, and the display is capable to display images with 3 colors content.
Price:
USD
$6.23
  • Product:
    EPD
    EPD with adapter board
    EPD with STM32 Demo Kit
    EPD with ESP32 Demo Kit
    DESPI-C02
Quantity:
-
+
(60 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(3)

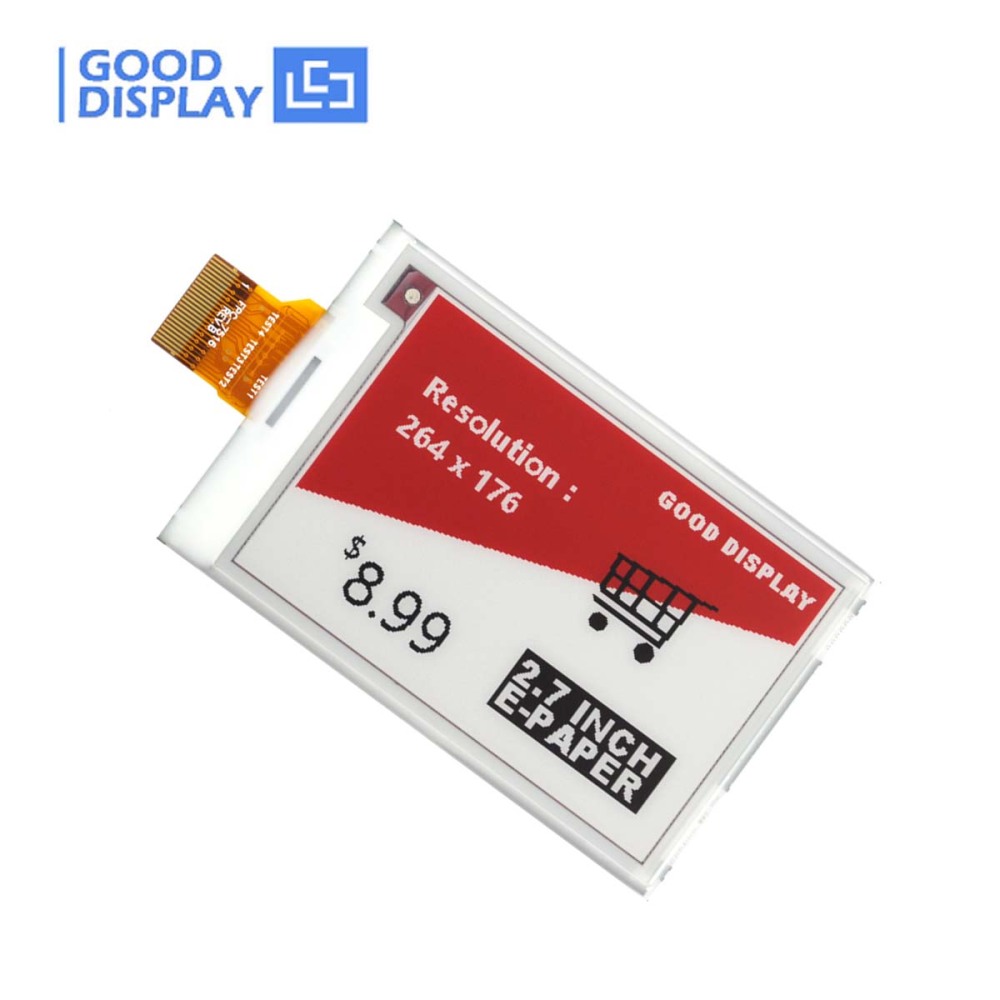

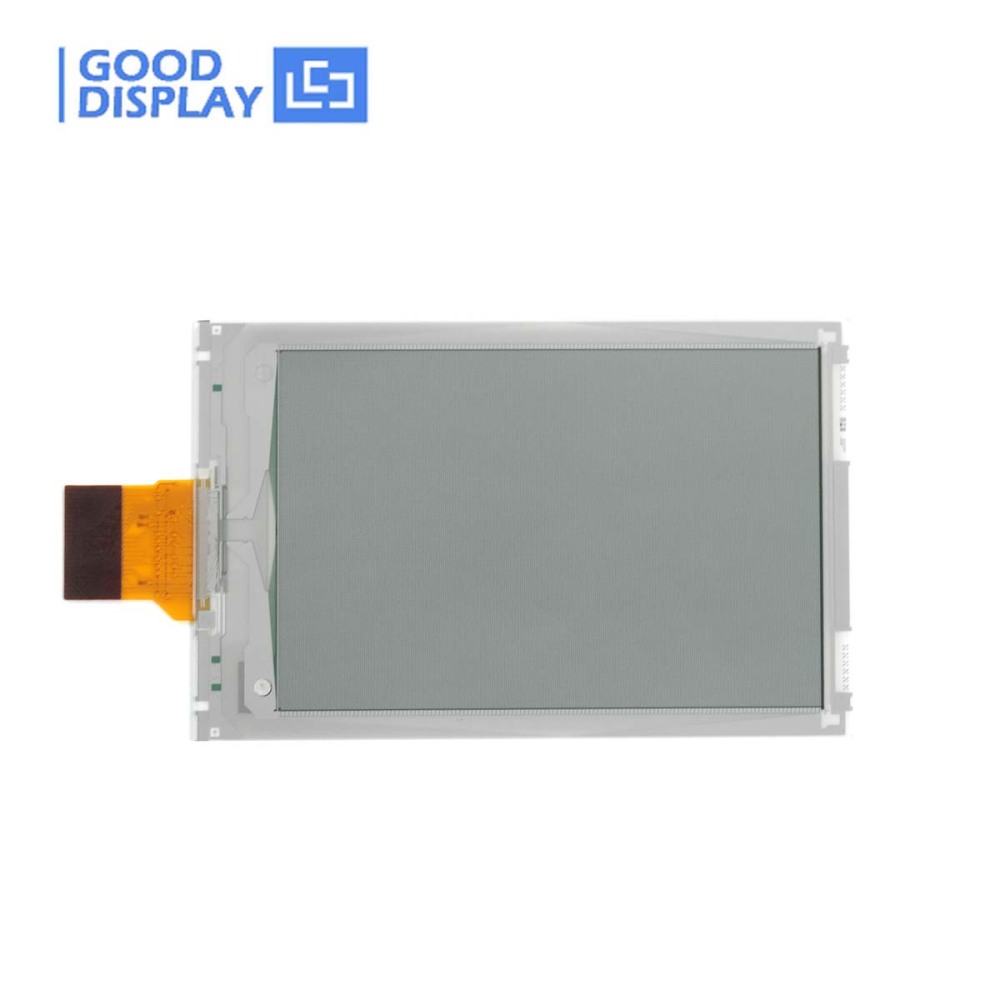

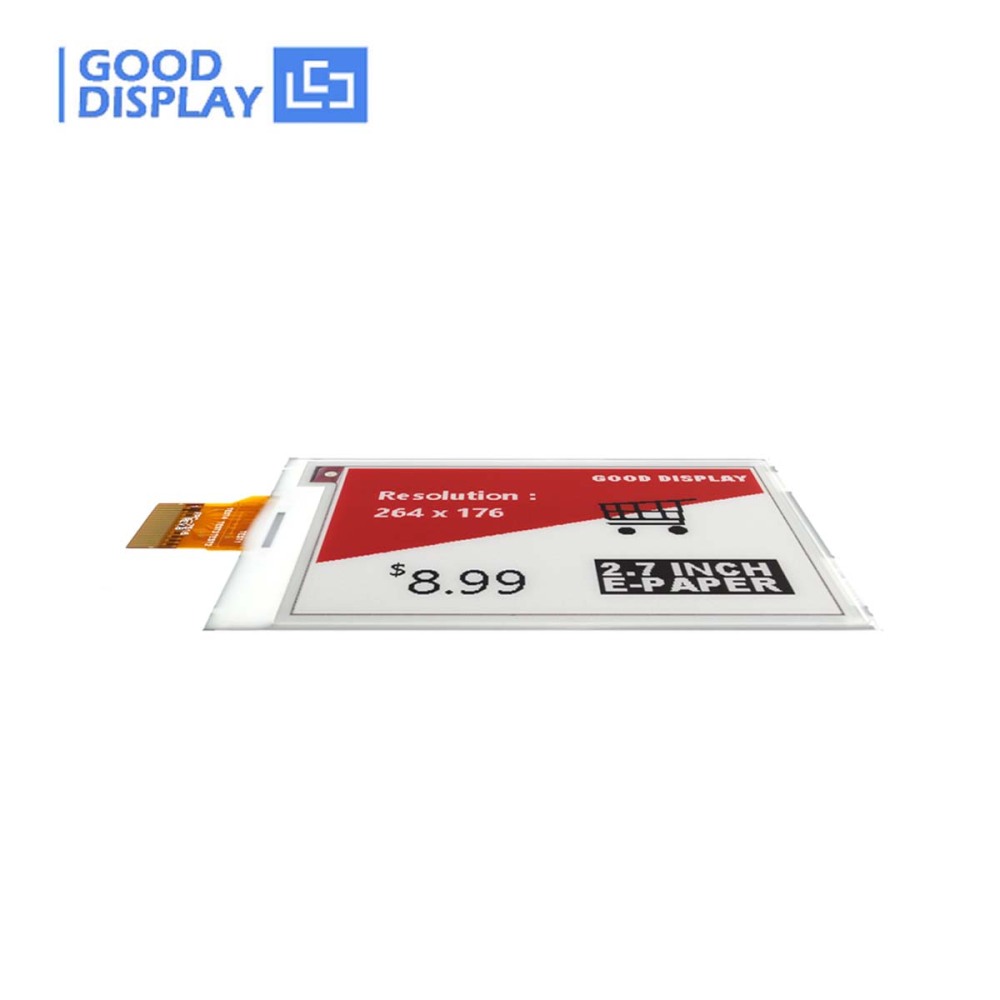

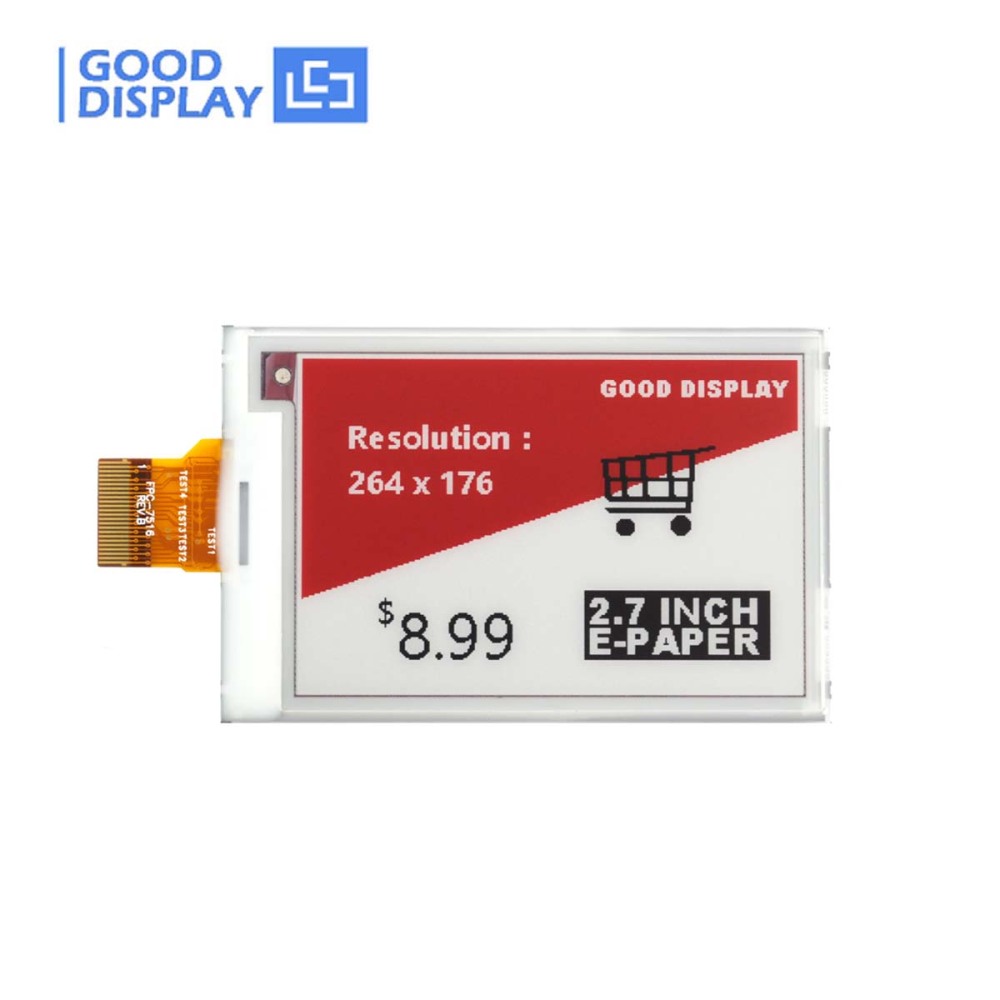

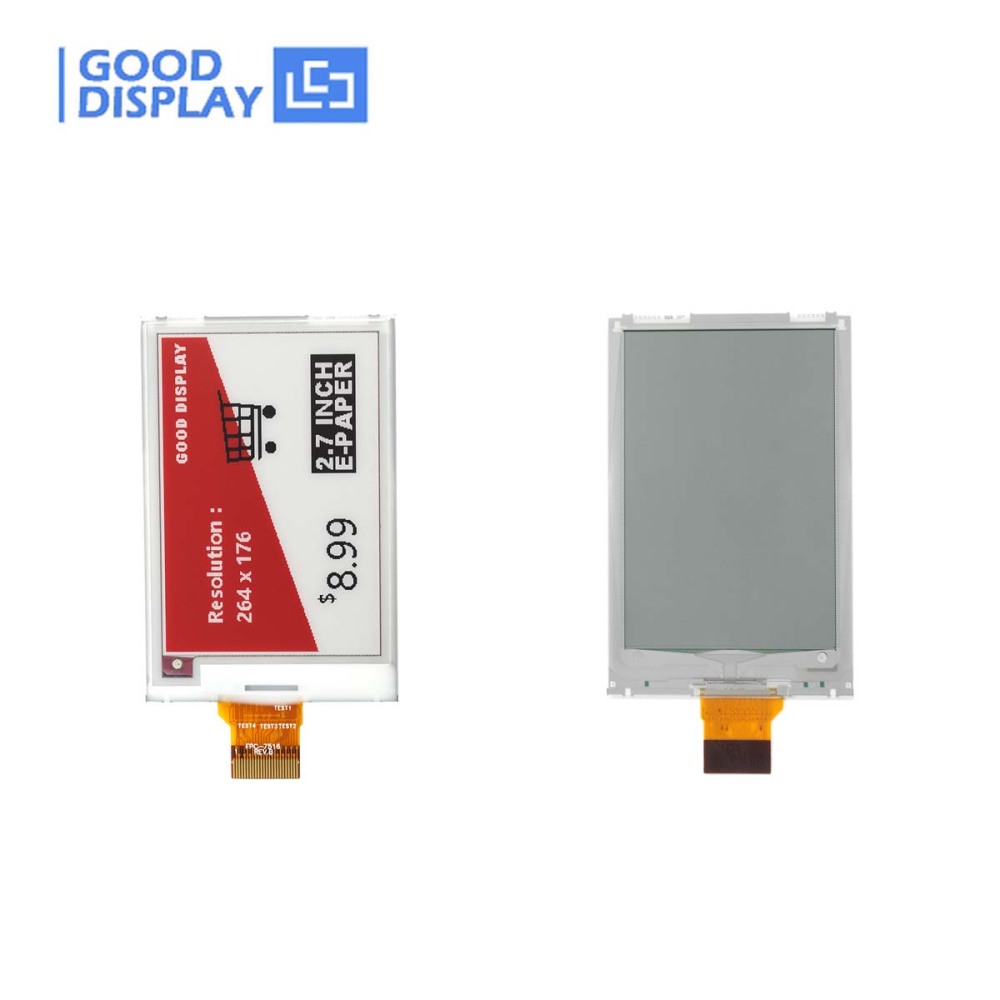

2.7-inch ePaper display with red tri-color 1.8s partial update E Ink screen

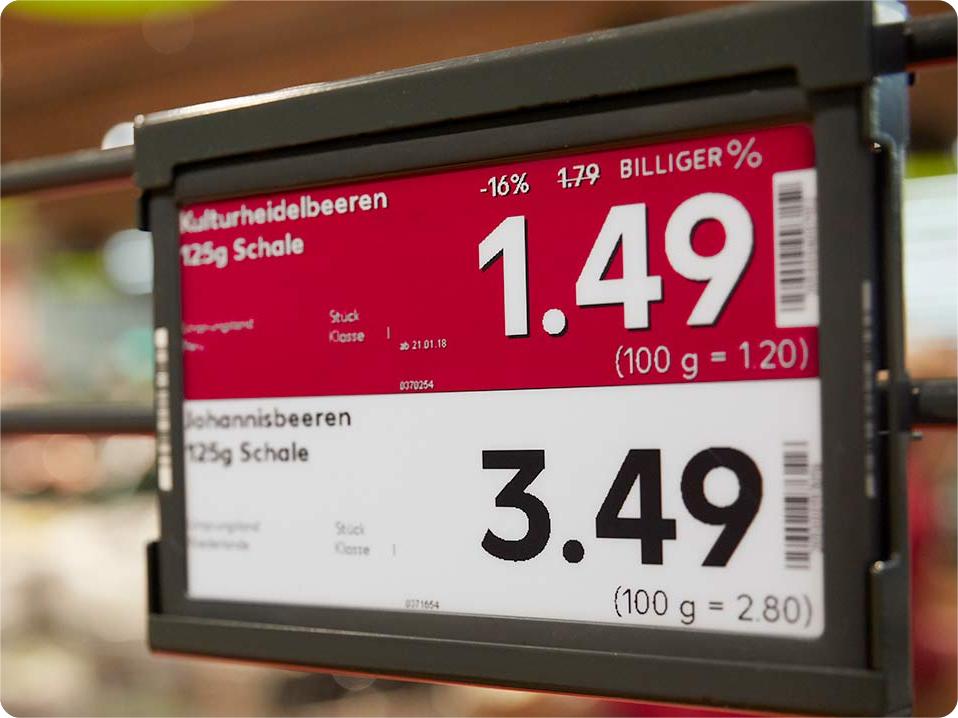

This is a 2.7-inch ePaper Display: a versatile, tri-color (black, white, and red) E Ink screen perfect for low-power applications. With a 264x176 resolution, SPI interface, and an operating voltage of 3.3V, it offers both full (20s) and partial (1.8s) refresh options. Ideal for shelf tags, smart tags, wearable devices, smart home applications, industrial instruments, and smart cards, this display maintains its image without power, making it perfect for solar or battery-powered devices. Enjoy affordable prices and reliable performance with the GDEM027Z71.








Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Ultra-Low Power Consumption: Once your image is up, this display holds it without any power! Perfect for solar or battery-powered devices, saving you energy and money.
  ●  Vibrant Tri-Color Display Unlike traditional black-and-white ePaper, the GDEM027Z71 supports black, white, and eye-catching red. Make your messages pop and get noticed!
  ●  Blazing Fast Partial Refresh Need quick updates? This display offers a 1.8-second partial refresh time (black and white), keeping your dynamic content fresh and timely.
  ●  Crystal Clear Resolution With a high resolution of 264x176, your content will look sharp and detailed, ensuring clear readability and a professional appearance.
  ●  Versatile Applications From shelf tags and smart tags to wearable devices and smart home applications, this display is perfect for a wide range of uses. It’s the ultimate solution for industrial instruments and smart cards too!
  ●  Wide Operating Temperature Range Operates seamlessly between 0-40°C, making it ideal for various environments and ensuring reliable performance wherever you are.








Technical Details

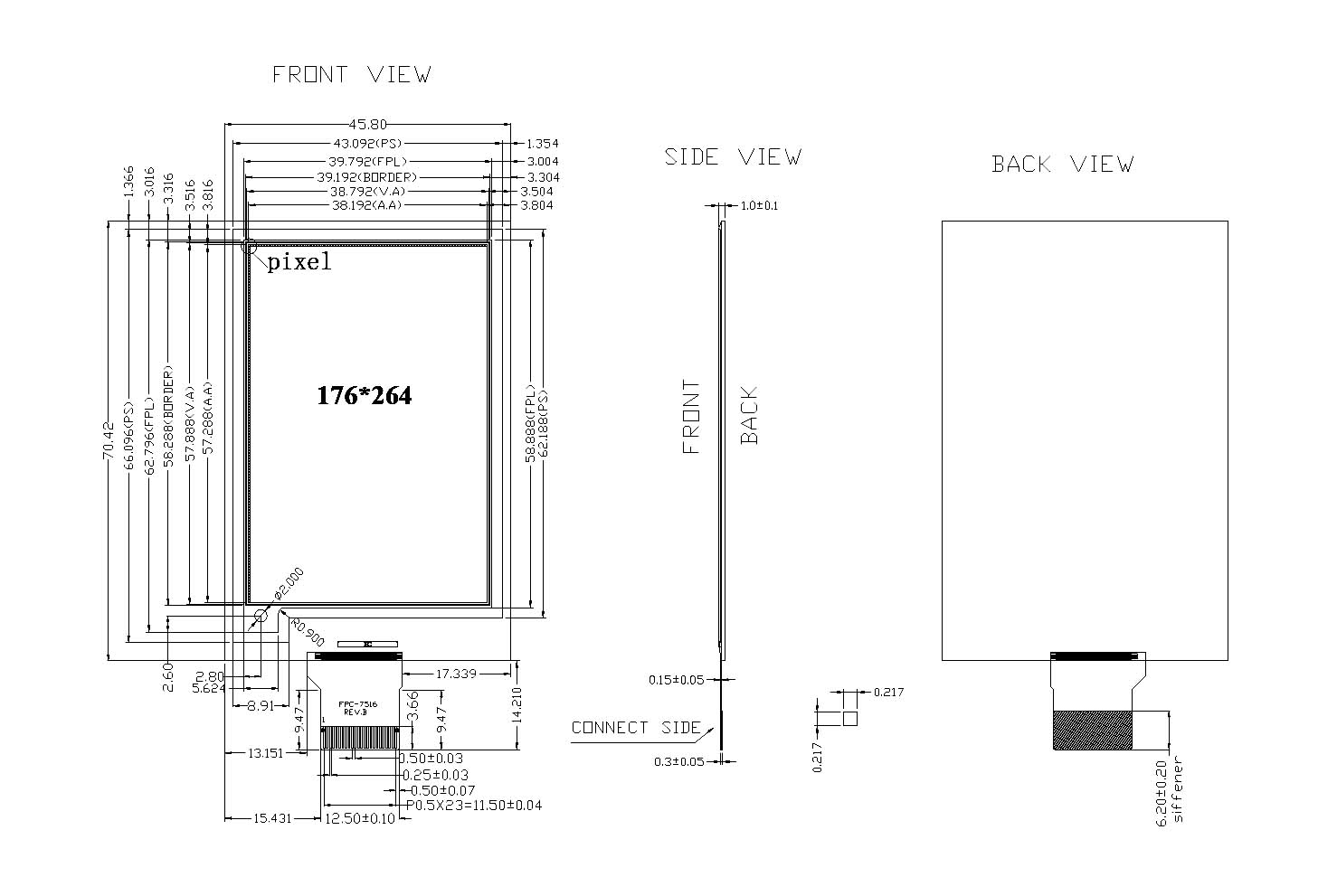

    Please refer to the product drawings for detailed dimensions









Product Specifications


    Please refer to the product specifications for more details

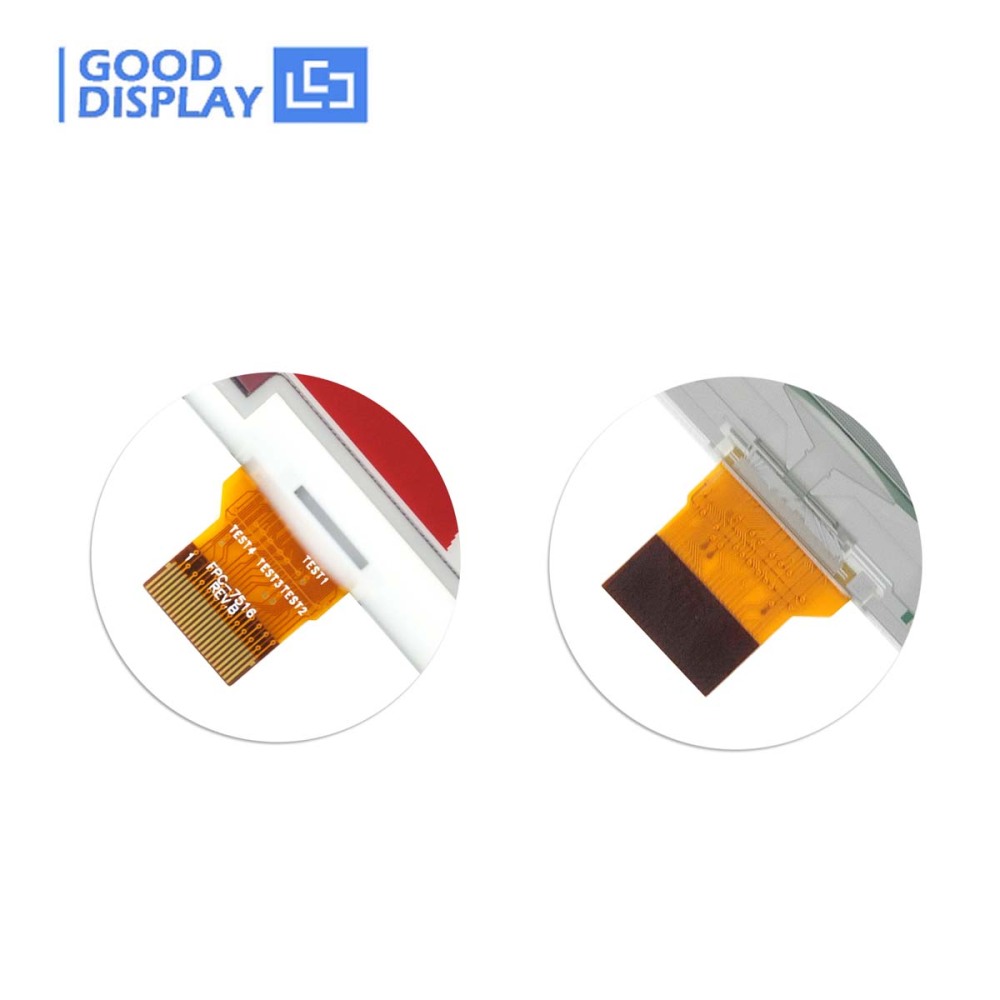

PART NUMBER GDEM027Z71 CONNECTOR 24 Pin 0.5mm
SIZE 2.7 inch TYPE Dot Matrix
IC SSD1680 MAX GRAYSCALE 4
RESOLUTION 264x176 COLOR Black, White, Red
OUTLINE SIZE(mm) 70.42×45.80×1.0 INTERFACE SPI
ACTIVE SIZE(mm) 60.088x30.704 FULL UPDATE TIME(s) 20
PIXEL PITCH(mm) 0.202x0.203 PARTIAL UPDATE TIME(s) 1.8
OPERATING TEMP. 0℃~40℃ TYPICAL POWER(mW) 12
STORAGE TEMP. -25℃~40℃ DEEP SLEEP POWER(mW) 0.003







  Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

a.DESPI-C02 (E-ink Display adapter Board) b.DESPI-L(C02) (STM32 Demo Kit) c.DEArduino-L(C02) (Arduino Platform Demo Kit)

d.ESP8266-L(C02) (ESP8266 Demo Kit) e.ESP32-L(C02) (ESP32 Demo Kit)







Related Information Download

Click on the subheadings below to download


  ● GDEM027Z71 Specification ● GDEM027Z71 Arduino Sample Code
  ● SSD1680 Driver IC Datasheet ● GDEM027Z71 ESP8266 Sample Code
  ● GDEM027Z71 STM32 Sample Code ● The latest Catalog of ePaper display
  ● GDEM027Z71 ESP32 Sample Code ● Disabling-Pop-Up-Blockers
