☆ INTRODUCTION
DESPI-L(C579) evaluation kit is used to help users develop Good Display's 5.79 inch e-paper display projects with provided source code to create more differentiated solutions. It is added the functions of USB serial port and LED indicator light, Reset button, user-defined button, font chip, Flash chip and etc. It also supports being updated via computer software directly.

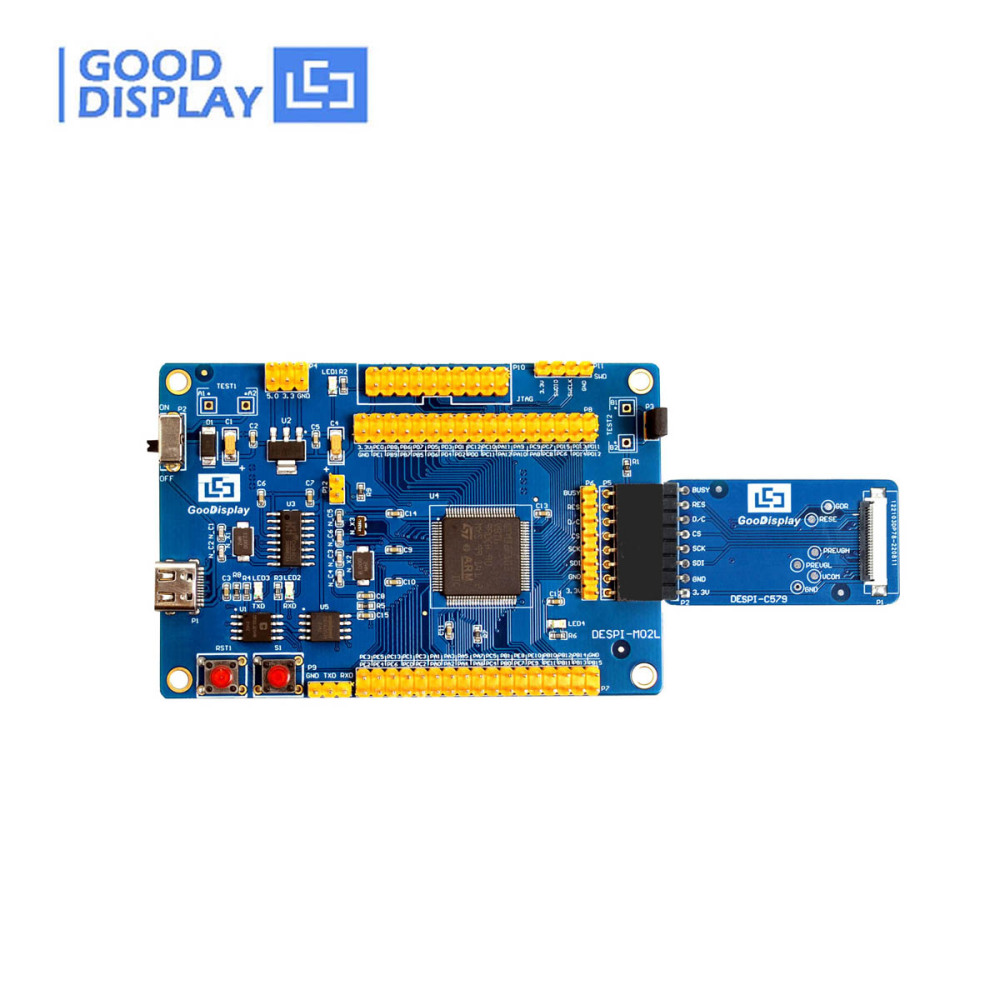

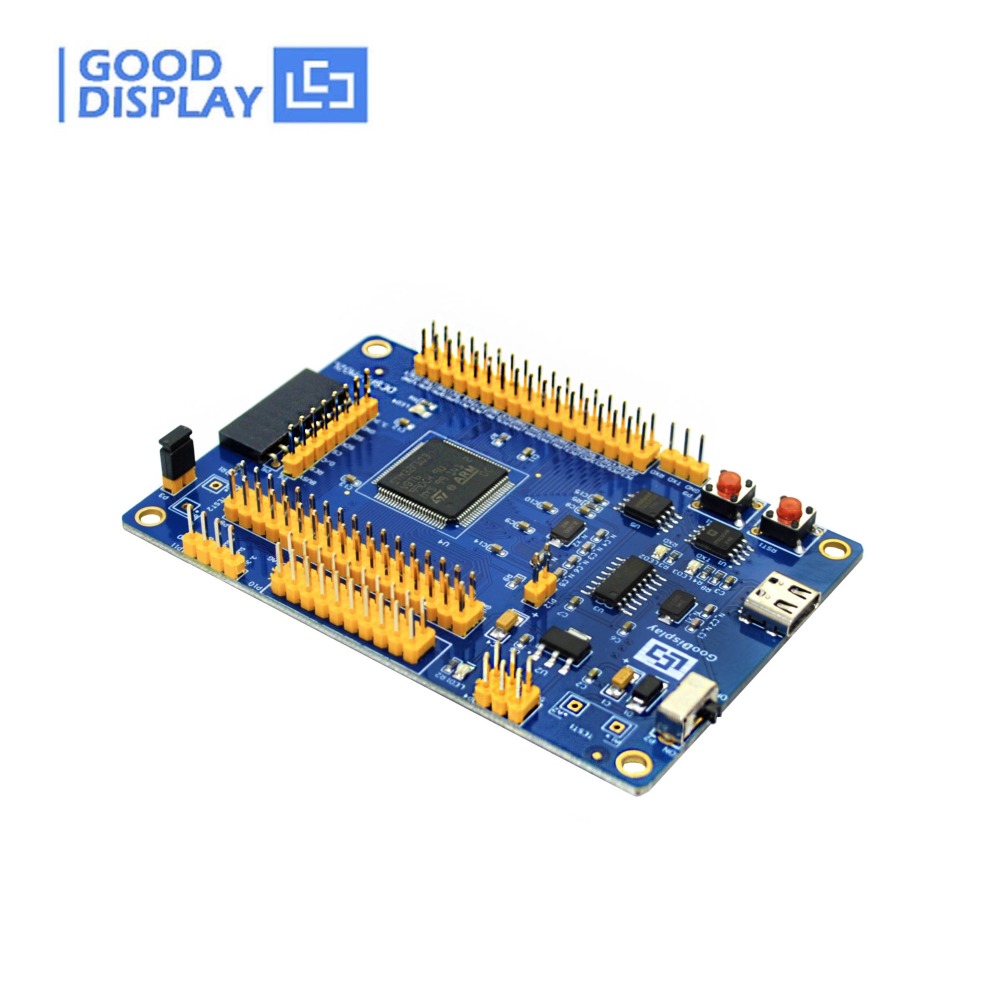

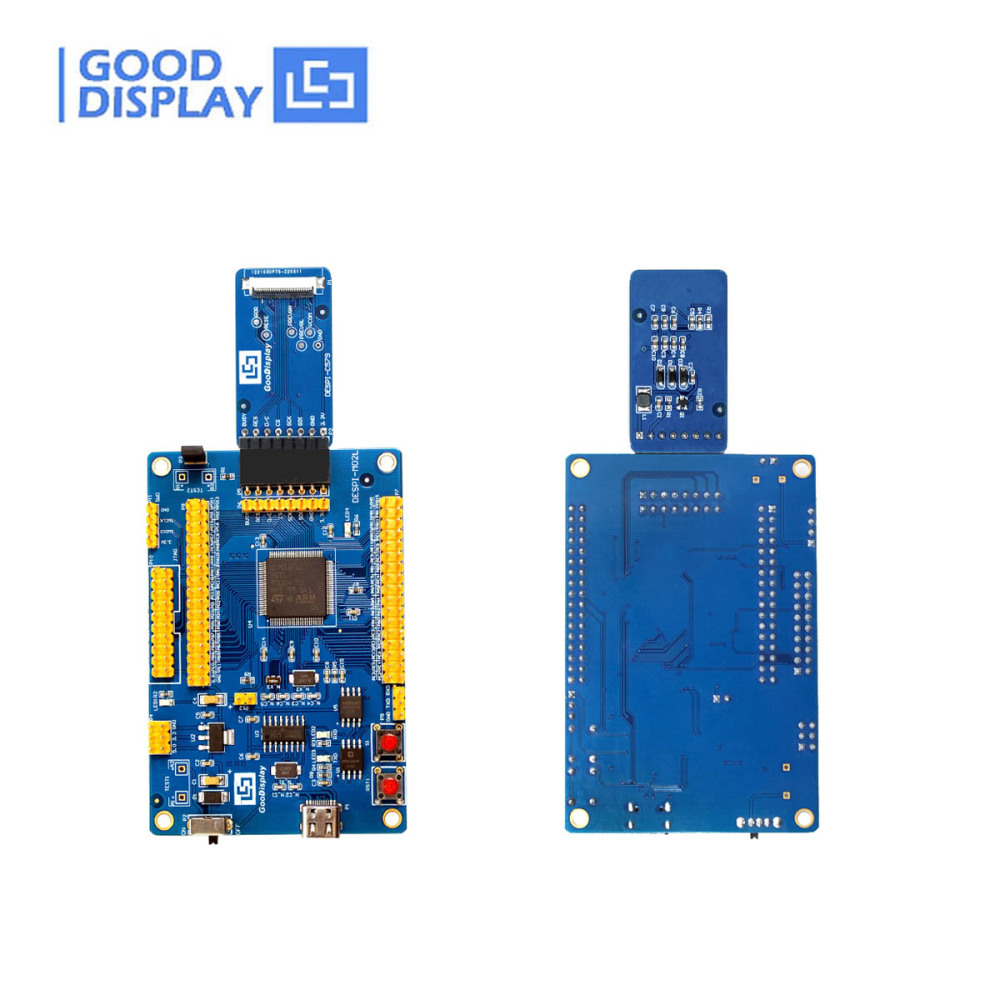

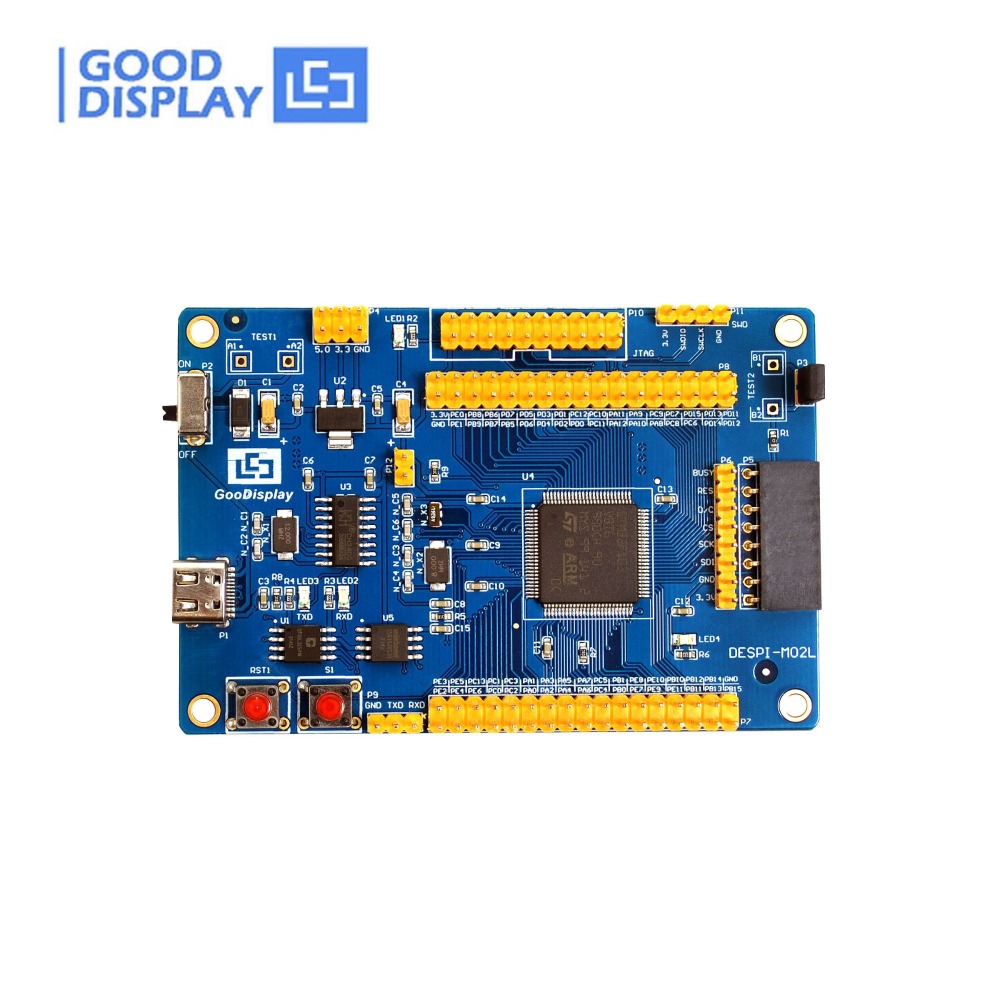

DESPI-L(C579) evaluation kit consists of motherboard DESPI-M02L and connector board DESPI-C579.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE
1) Driving board DESPI-M02L * 1pc
2) Connector board DESPI-C579 * 1pc
3) USB port cable * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
DESPI-L(C579) |
| PLATFORM |
STM32 |
OPERATING TEMP. |
-20~70℃ |
| FUNCTION |
Drive E-paper Display |
POWER INTERFACE |
Type-C |
| EXAMPLE CODE |
Available |
POWER INPUT |
DC5V |
| GRAY SCALE LEVEL |
Max 2 Grayscale |
FEATURE |
Support fully refresh, fast refresh and partial refresh |
| MAIN FUNCTION |
Learn to drive E-paper display;
Test and evaluate e-paper display;
Support secondary development |
OUTSIDE DIMENSION |
90x60mm (DESPI-M02L)
41x22mm (DESPI-C579) |
| RESERVED FUNCTION |
Type-C, LED indicator, User-defined button, Reset button, Font chip, Flash chip, Current detection |

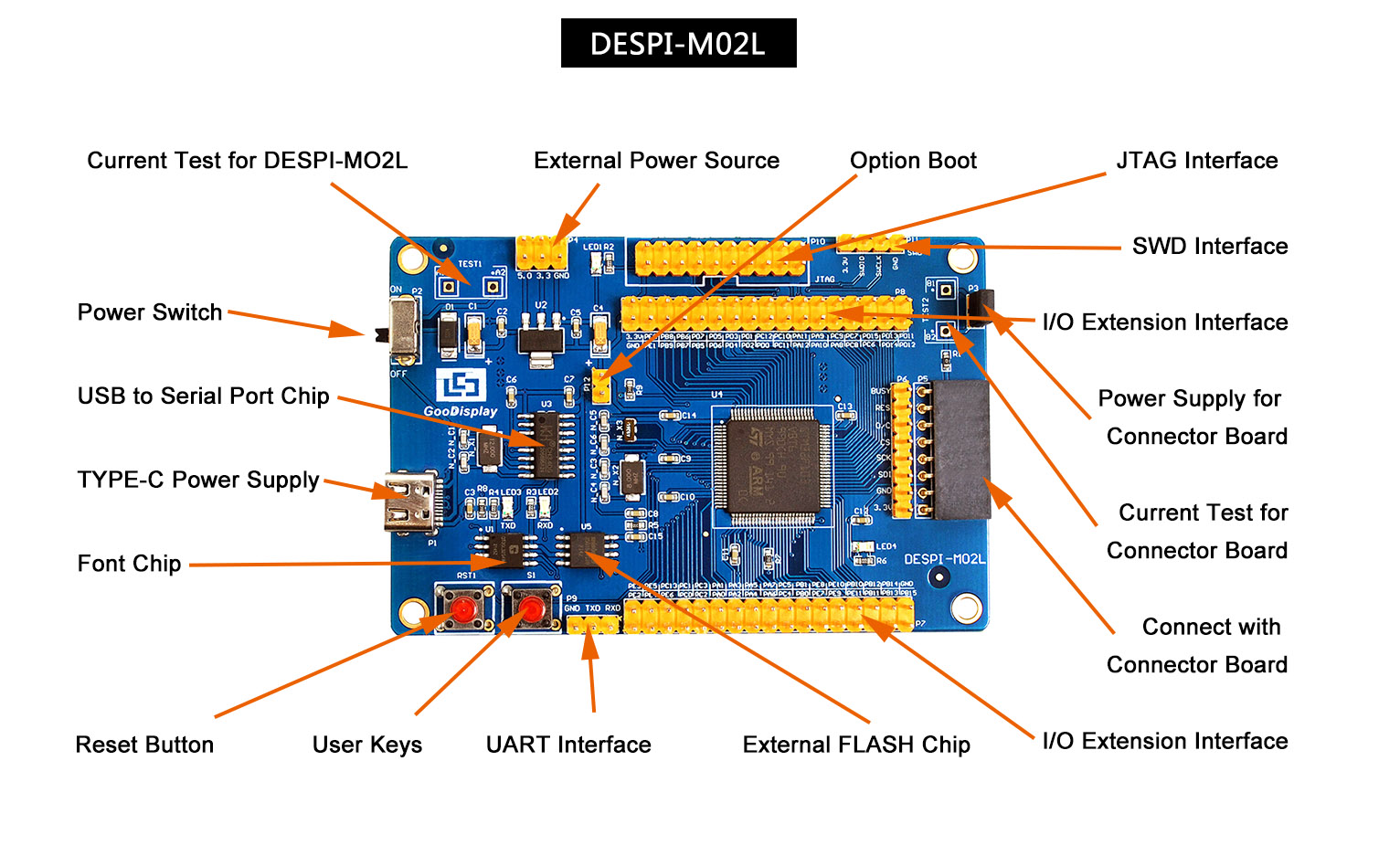

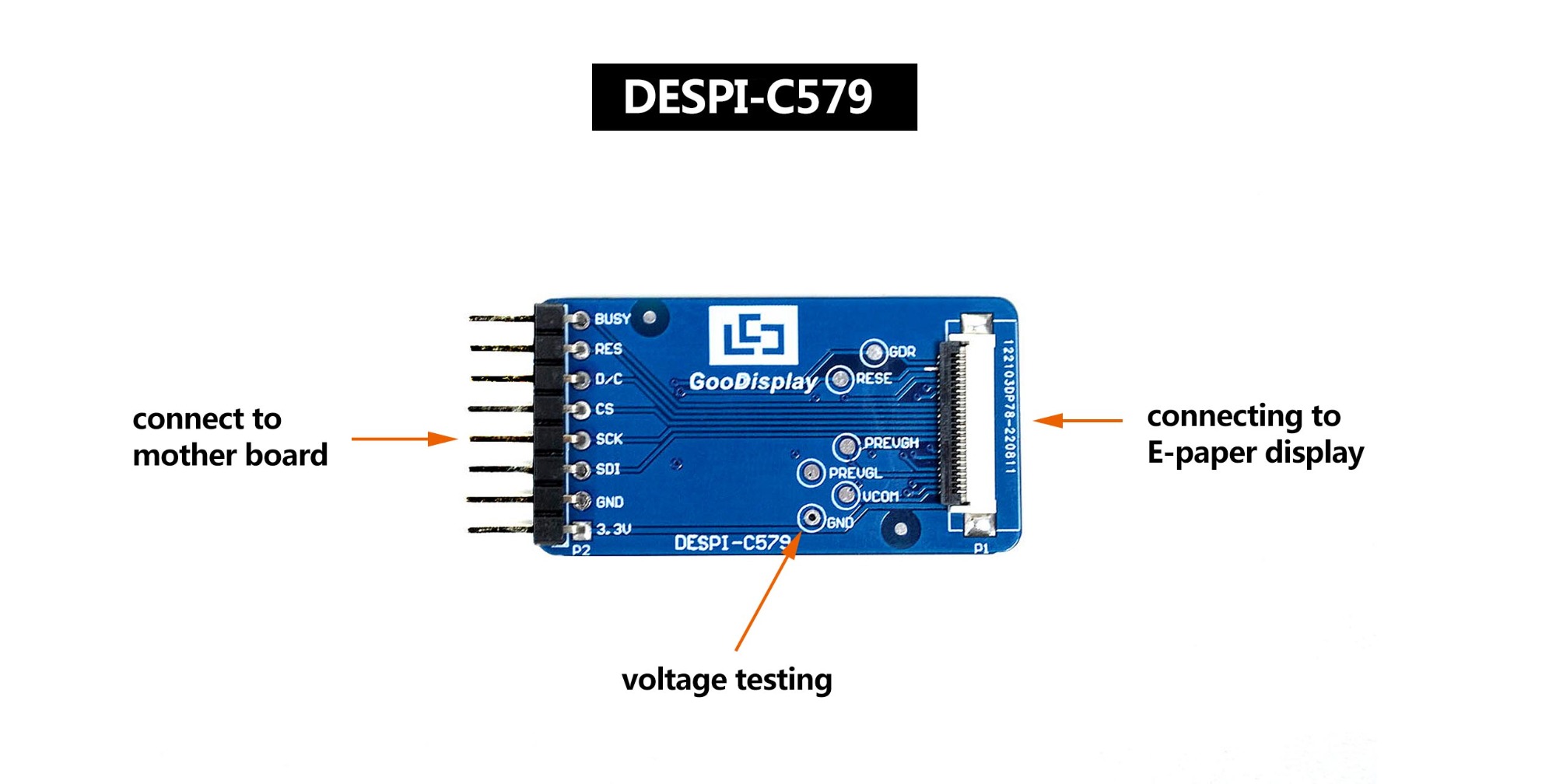

☆ DRAWING
☆ RELATED INFORMATION DOWNLOAD
● DESPI-L(C579) Specification
● DESPI-C579 Specification
● DESPI-M02L-SCH
● DESPI-C579_SCH

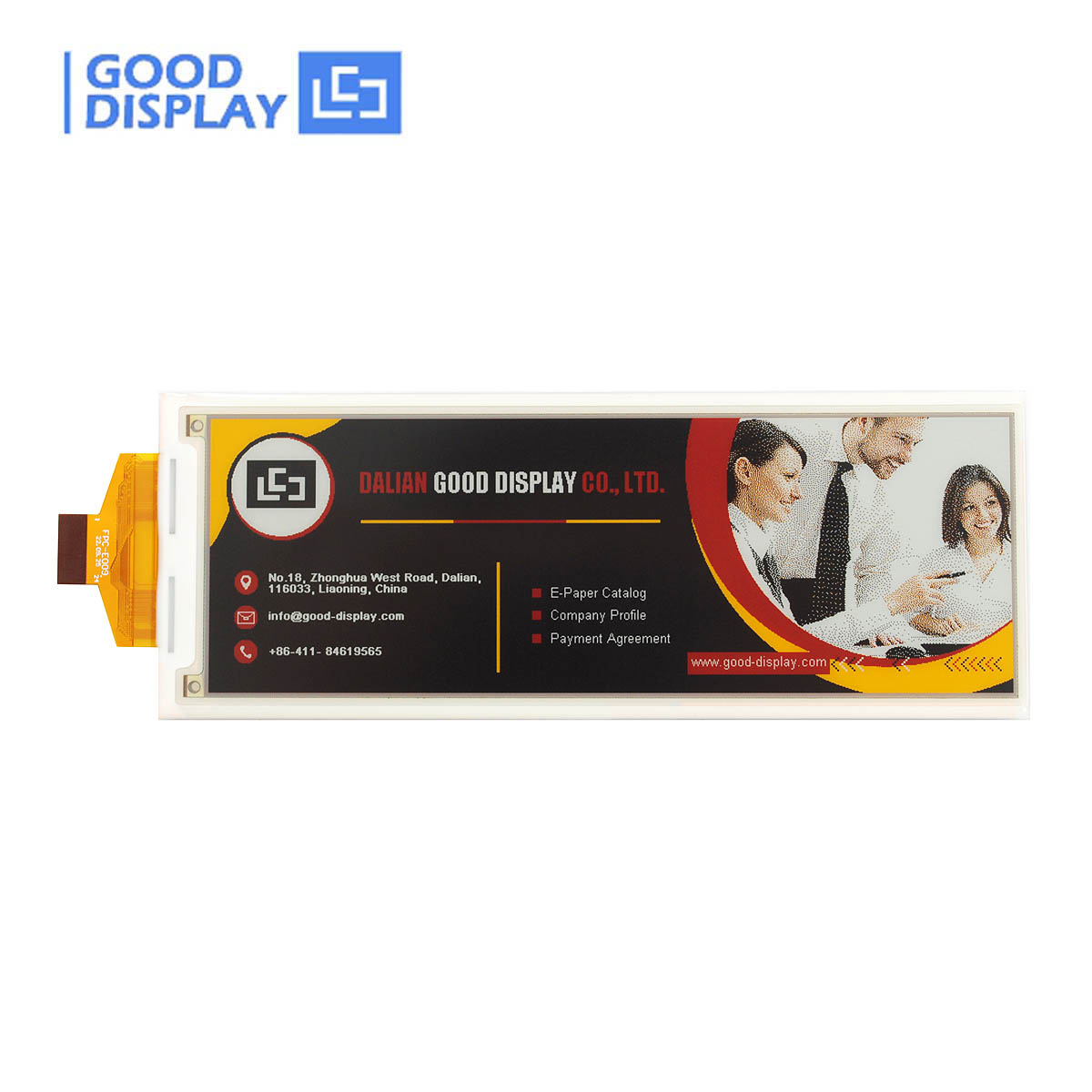

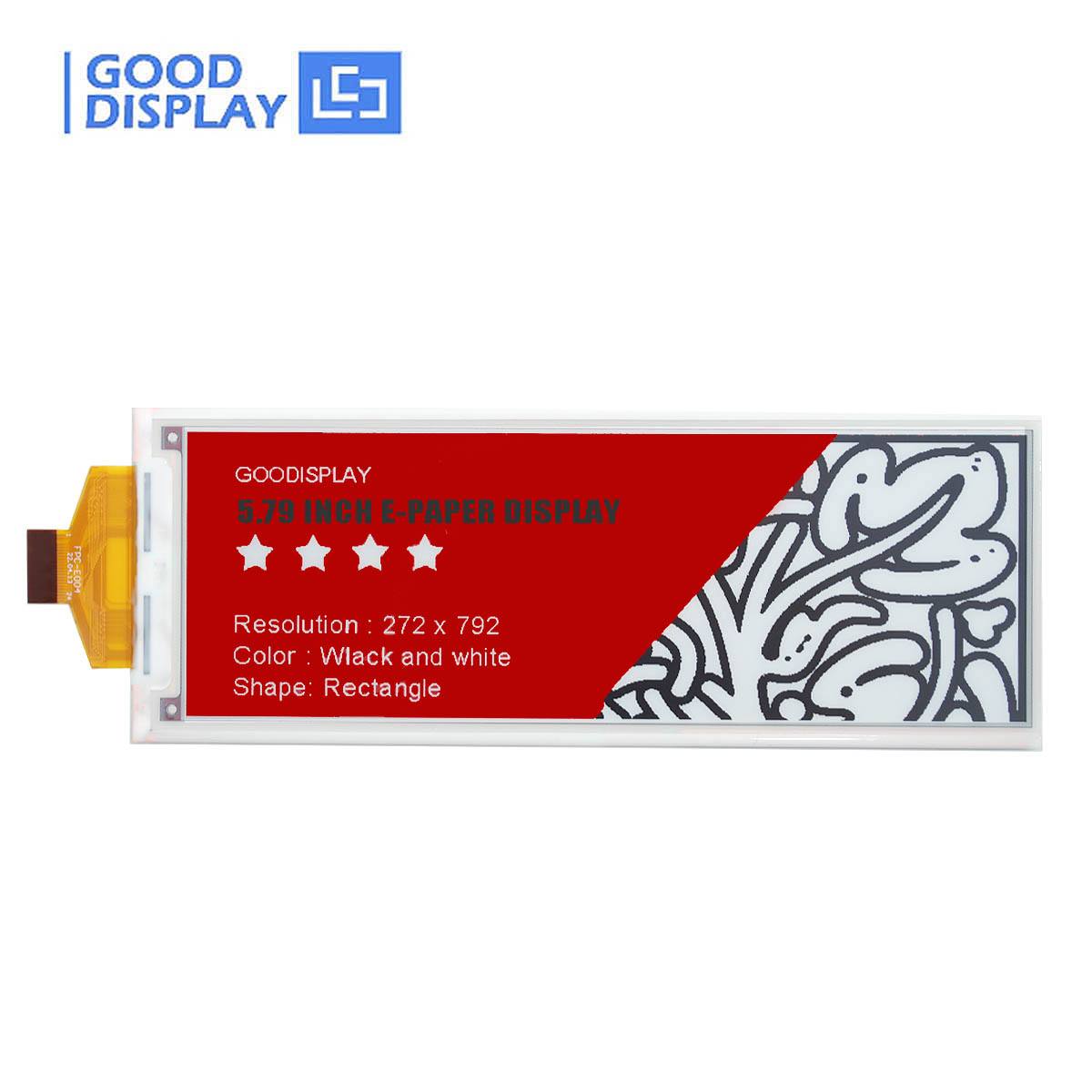

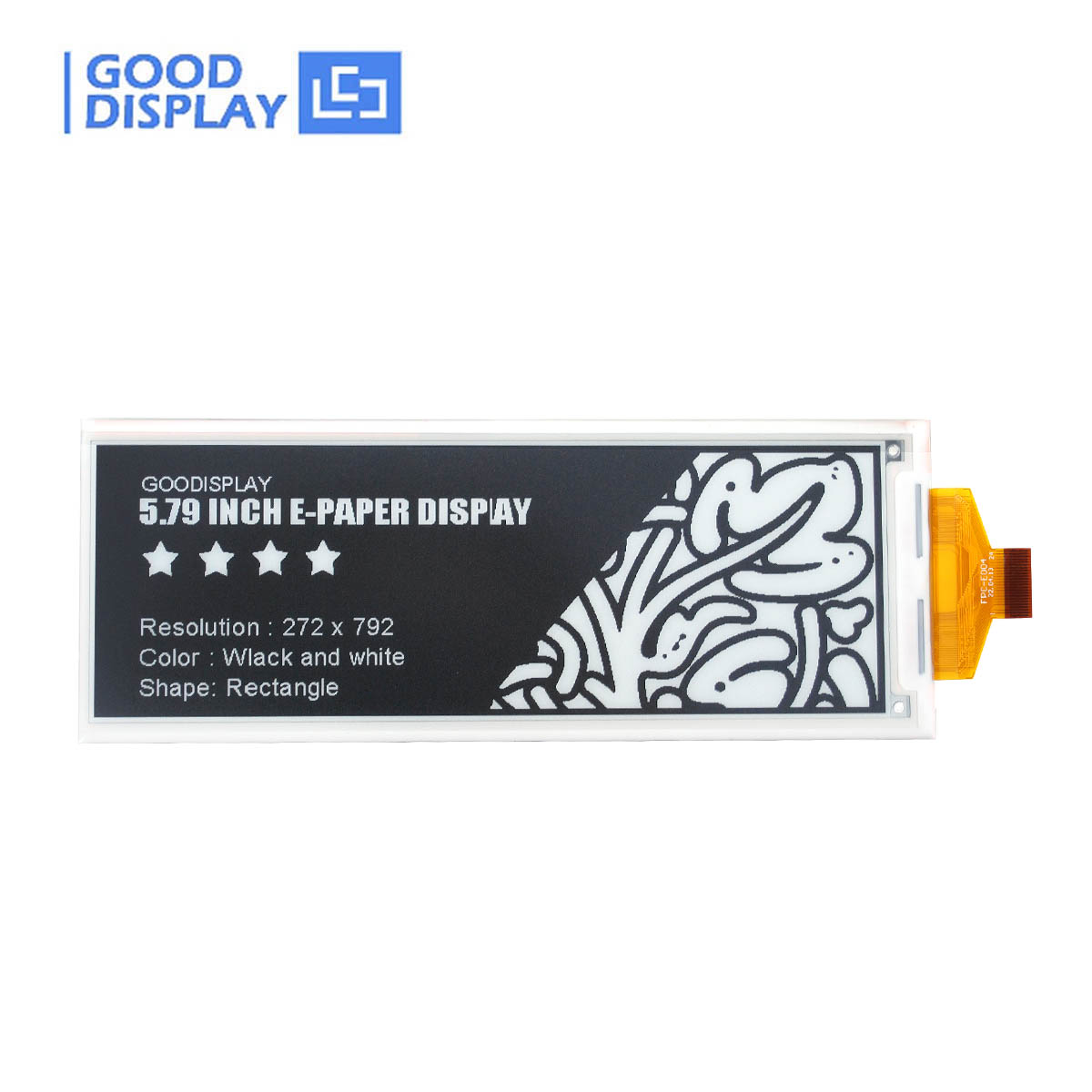

☆ SUITABLE E-PAPER DISPLAY
☆ ABOUT US
Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
