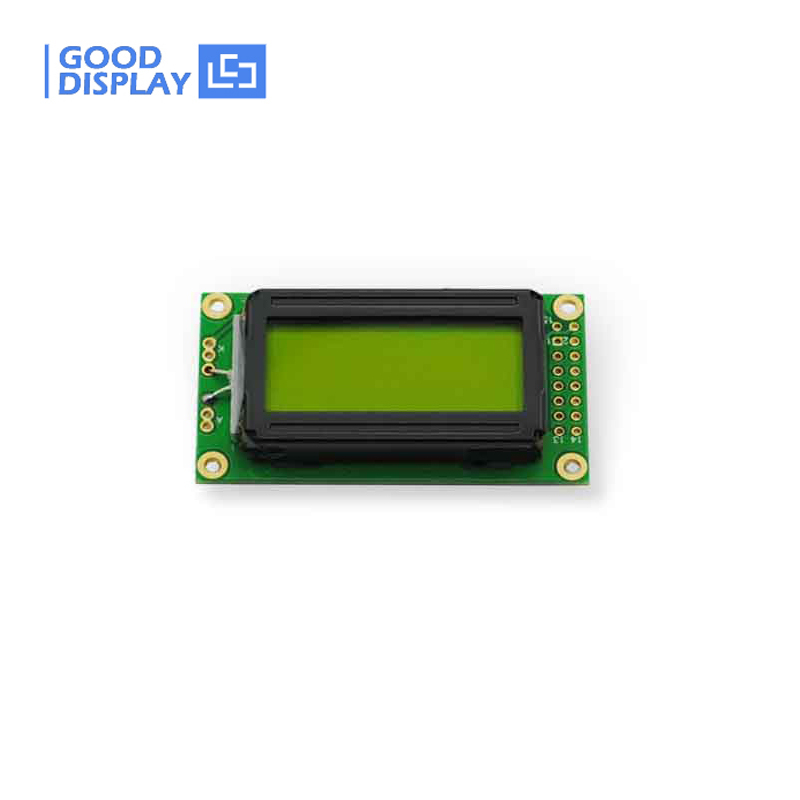

8x2 LCD screen display module yellow and green, YM0802B

YM0802B
8x2 LCD screen display module yellow and green YM0802B, Operating Temperature -10~60℃, with LED backlight.
1 Review(s) Sold:1
Have a question?
Price:
USD
$4.00
Quantity:
-
+
(9 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • LCD Other Product
  • Reviews(1)


☆ THE ABOVE PRICE INCLUDE


1)  8x2 LCD screen display module yellow and green YM0802B * 1 pc




☆ MAIN PARAMETERS



Part Number YM0802B
View Angle 6 o’clock Operating voltage 5V
Operating Temp. -10~60℃ Outline Dimension 58.0x32.0x13.0 mm
Storage Temp. -20~70℃ View Area(W×H) 38.0x16.0 mm
Controller KS0066U Dot Size(W×H) 0.56x0.66 mm
Package COB Dot Pitch(W×H) 0.60x0.70 mm
Backlight LED Char Size(W×H)  2.96x5.56 mm

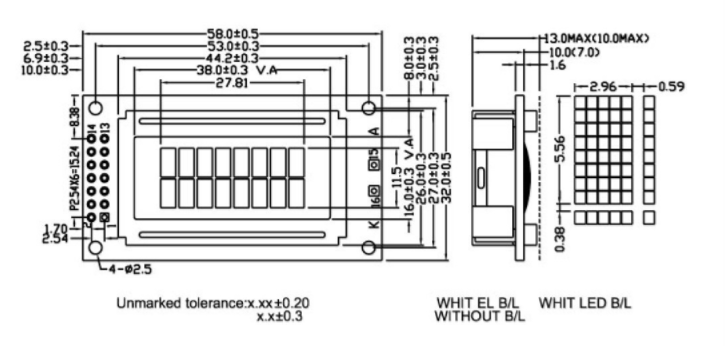

☆ DETAILS






☆ ABOUT US


Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].



PART NUMBER

DIGIT

OUTLINE DIMENSION

ACTIVE(VIEW) AREA

DRIVE METHOD

GDC02693

2

7.5x10x1.1mm

5.5x4.0mm

1/4D,1/2B

GDC0209

4

23x10x2.8mm

20x6mm

1/4D,1/3B

GDC0178

11

--

--

1/4D,1/3B

GDC8811D

--

36.00x36.00x2.00mm

33.00x31.00mm

Static

GDC21310

2

30x21x2.8mm

27x16mm

1/4D,1/3B

GDC03828

5

81.0×37.5×2.8mm

78.0×27.5mm

Static

GDC6375

--

98x34.3x2.8mm

92.64x24.94mm

1/4D,1/3B

GDC130

4

51.0x34.0x2.8mm

48.0x25.0mm

1/4 D, 1/3 B
GDC1156 6 253x65.5x2.8mm 250x60mm 1/4 D, 1/3 B
GDM0689 6 58.0x28.0x6.70mm 39.0x17.0mm 1/4Duty

GDM0328

8

55.8x37x2.8mm

45x27mm

1/4D,1/3B

GDC0689

6

42x25x2.8mm

39.0x17.0mm

1/4 D, 1/3 B
GDC9188 12 156x99x2.8mm 148x87mm Static

EDM1190-03

4

72.8x35.5x10.7mm

54.2x24mm

Static

EDC103

8

64x22.0x2.8mm

60.5x13.5mm

1/4D,1/3B

EDC190

4

50.8x30.48x2.8mm

45.72x17.78mm

Static

EDS819

2-1/2

30.0x26.17mm

26.0x17.17mm

Static

EDS816

4

93.98x45.72x2.8mm

86.36x30.48 mm

Static

EDS815

4

69.85x38.1x2.8mm

62.23x22.86mm

Static
EDS805 4 50.8x30.48x2.8mm 45.72x16.51mm Static

EDS809

6

69.85x30.48x2.8mm

64.77x16.51mm

Static

EDS810

6

93.85x38.1x2.8mm

86.36x24.13mm

Static

YM0801B

--

55.0x17.0x8.5mm

39.5x8.0mm

--

YM0802B

--

58.0x32.0x13.0mm

38.0x16.0mm

--

YM0802SYG-3

--

58x32x13.2mm

39x16mm

--

YM12864C

--

78x70x13mm

62x44mm

--

YM1601A

--

80.0x36.0x13.0mm

64.5x14.0mm

--

YM1604C

--

77.0x51.0x13.0 mm

61.7x25.2 mm

--

YM1602C

--

80.0x36.0x12.5mm

64.5x15.8mm

--

YM1602L

--

122.0x44.0x14.0mm

99.0x24.0 mm

--

YM128128G-3

--

46.5x56.7x4.0mm

39.64x46.04mm

--

YM320240B-3

--

139.0x120.0x13.2mm

103.0x79.0mm

--

YM19264A

--

130.0x65.0x13.0mm

104.0x39.0mm

--

YM12864FS-655

--

70.0x50.0x5.8mm

67.0x37.0mm

--

YM0802A-1

--

40.0x35.8x12.0mm

25.74x9.48mm

--

YM12864-G35

--

80.2x51.2x5.6mm

66.52x33.24mm

--

YM12864J

--

93.0x70.0x14.0mm

70.7x38.8mm

--

YM12864J-7

--

93x70x13.5mm

72x40mm

--
YM240128A-11 -- 144.0x105.5x15.0mm 107.95x57.55mm --
