ESP32‑Compatible Adapter Board Dual‑Size1.54" E6 & 3.7" Spectra 6 E‑Paper 24-Pin FPC , DESPI-E01

Name: ESP32‑Compatible Adapter Board Dual‑Size1.54" E6 & 3.7" Spectra 6 E‑Paper 24-Pin FPC , DESPI-E01
Brand: GOOD DISPLAY
SKU: DESPI-E01
Price: 6.99 USD
Availability: InStock

SKU: DESPI-E01

(0)

0 Sold

$6.99

A high-performance adapter board designed for the 1.54" & 3.7" E-Ink Spectra 6 display.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $2.00 OFF ON ORDERS OVER $100.00
GET $6.00 OFF ON ORDERS OVER $199.00
GET $10.00 OFF ON ORDERS OVER $298.00

01/06/2026/00:00:00 - 30/06/2026/00:00:00

Add to Favorites (0)

1/1

30-Pin E-Ink Display Adapter Board

Kickstart your color e-paper projects without the hardware headaches.

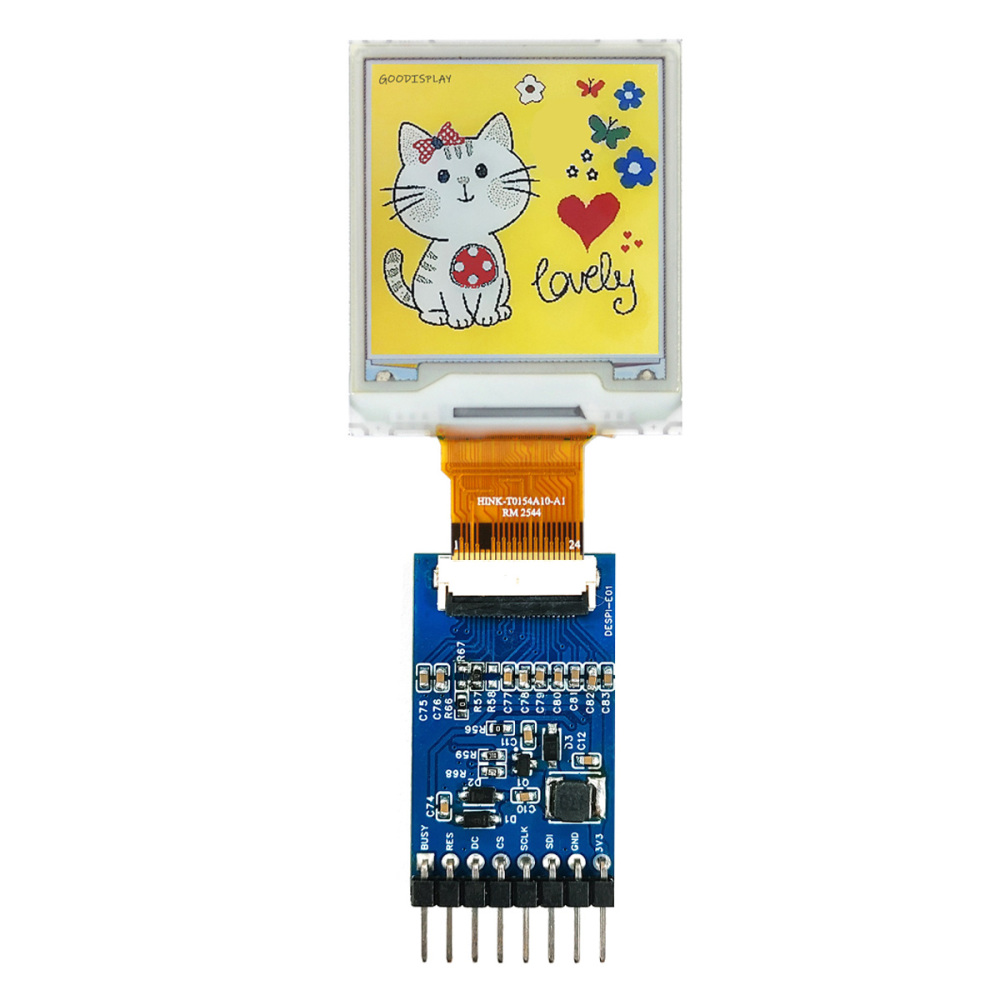

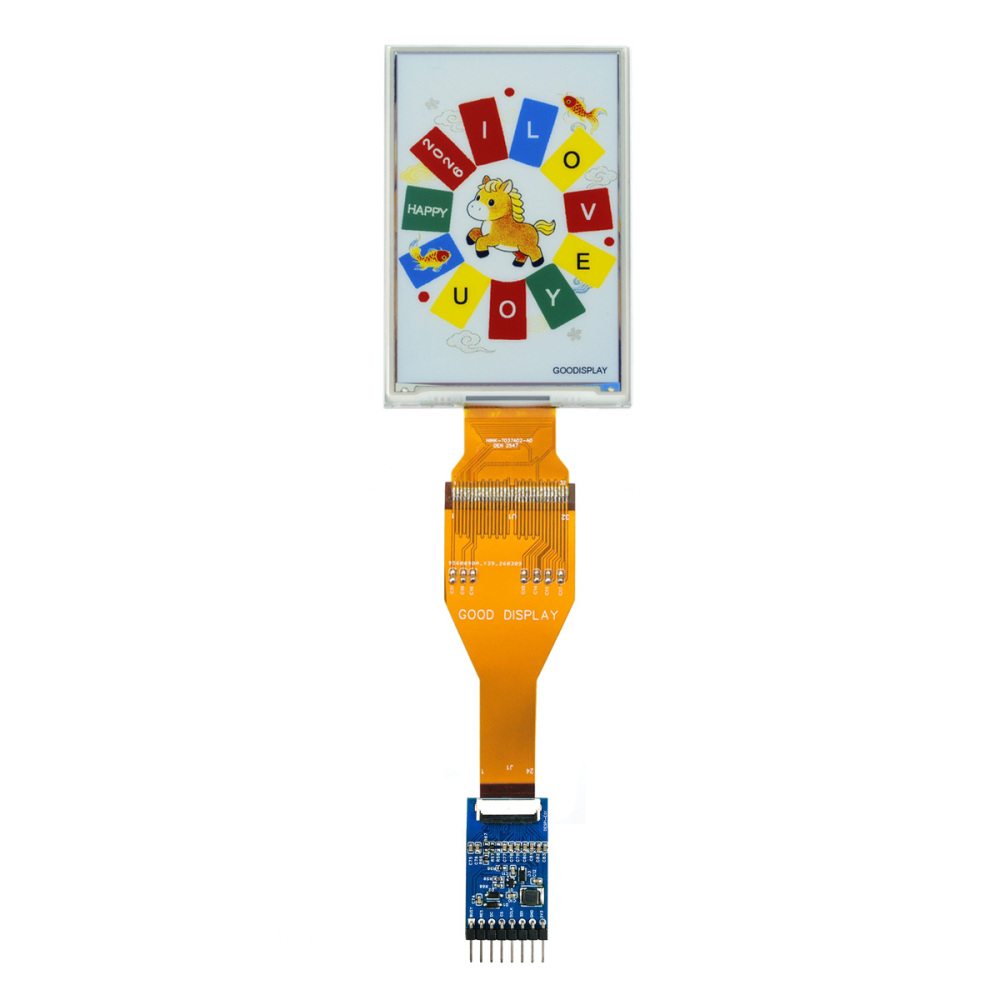

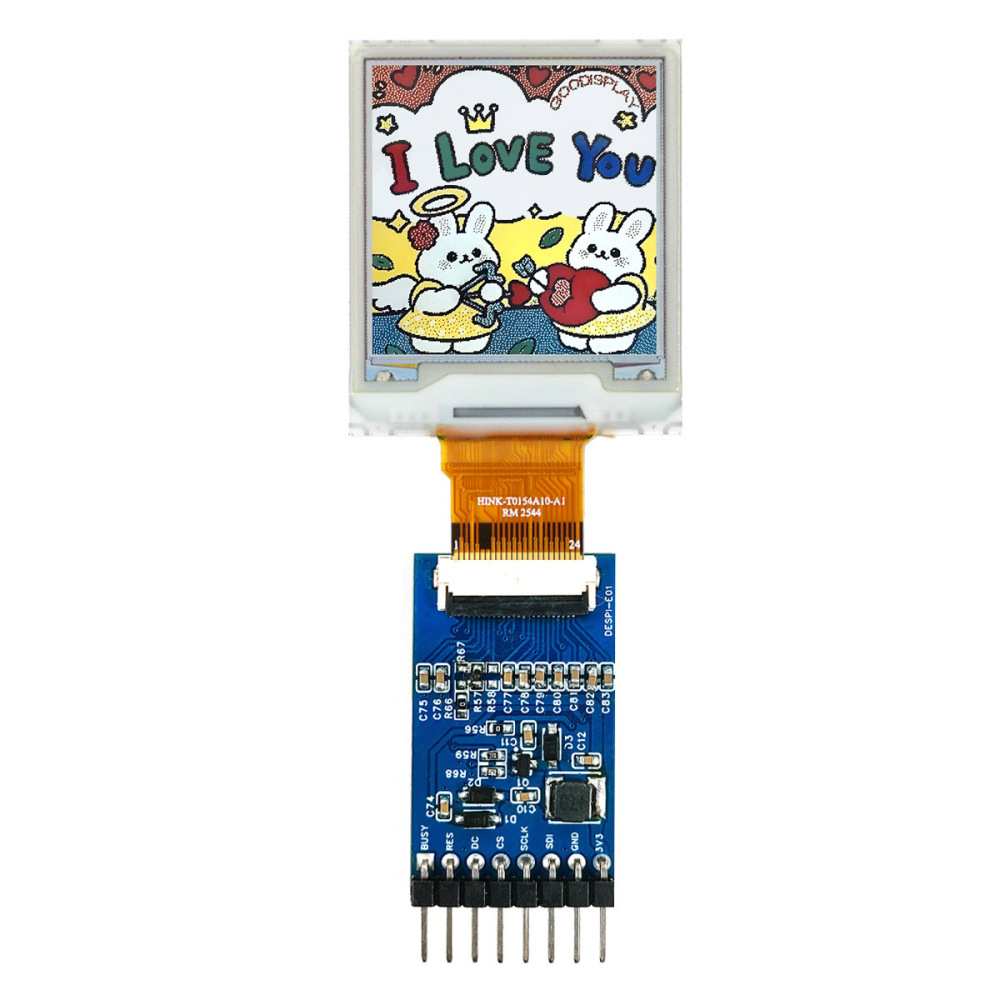

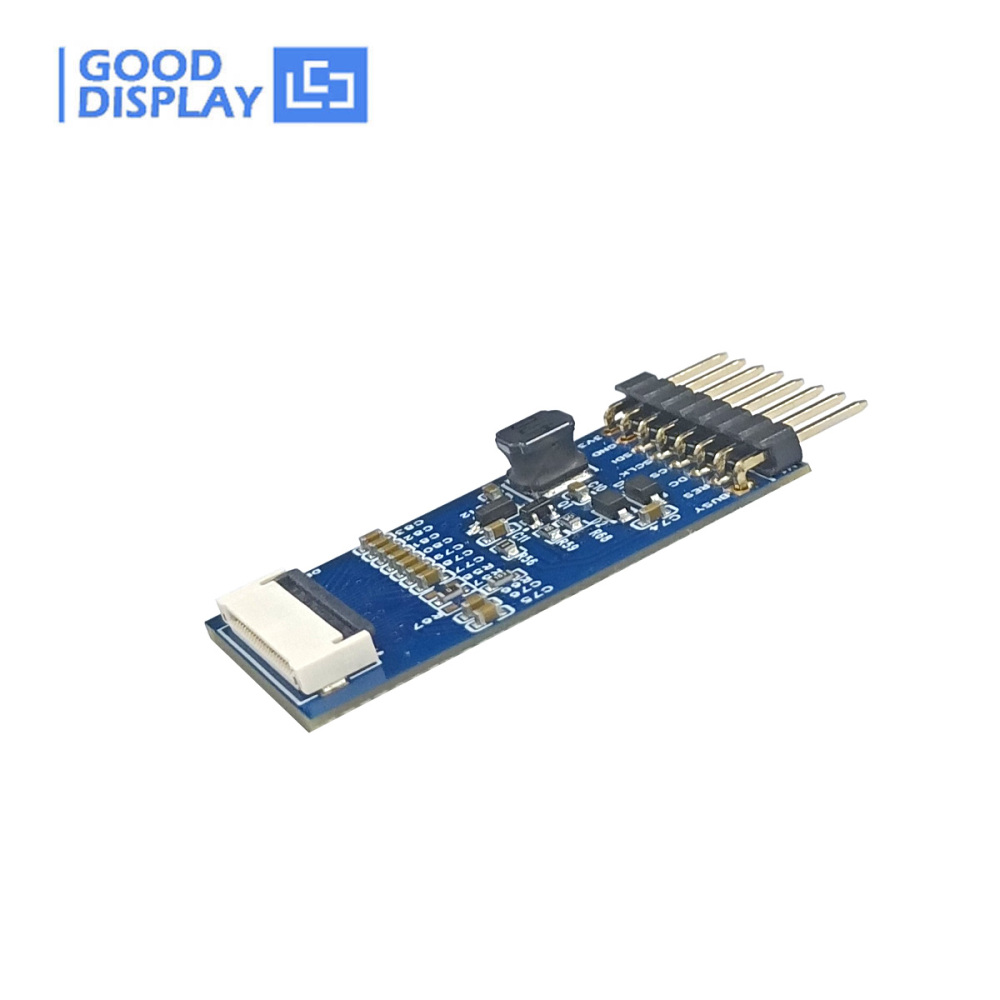

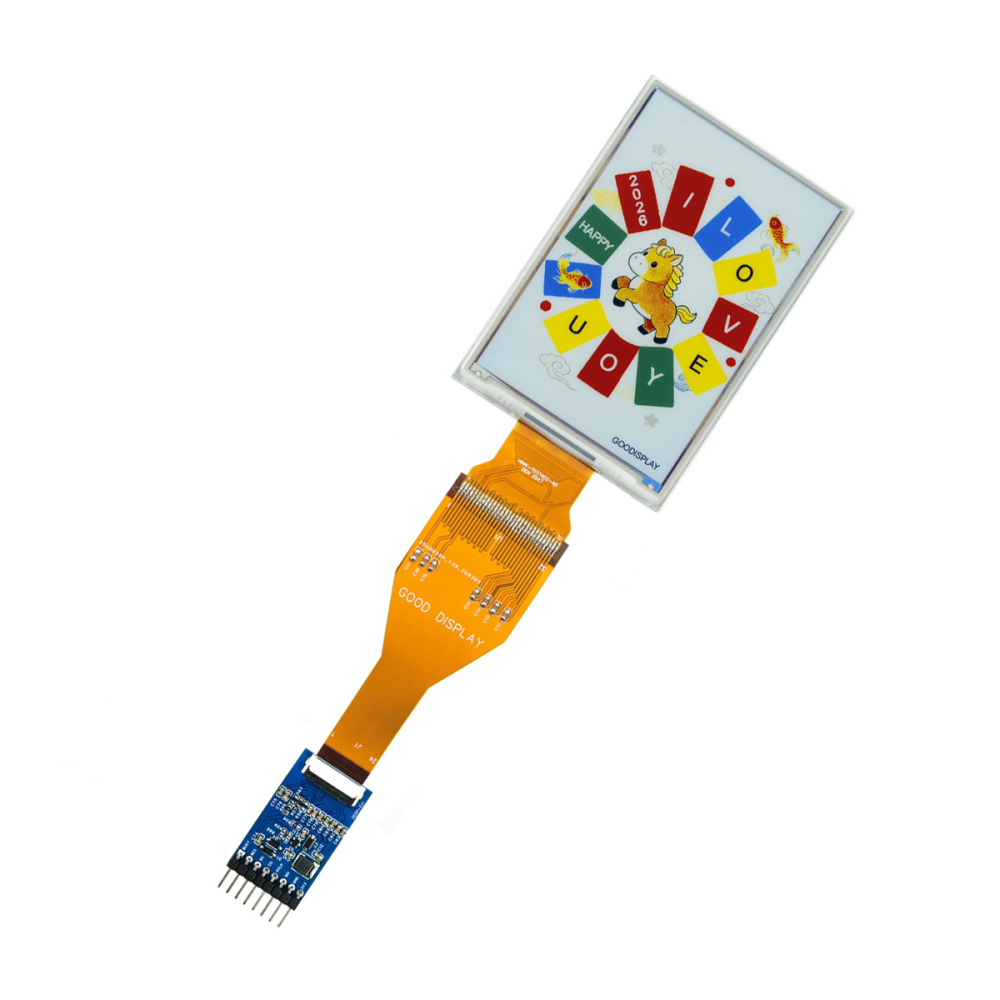

The DESPI-E01 adapter board is purpose-built for 1.54" (GDEH0154E01) and 3.7" (GDEH037E01) E6 Spectra 6 electrophoretic displays, delivering a seamless, ready-to-use interface between your development board and color EPD panel.

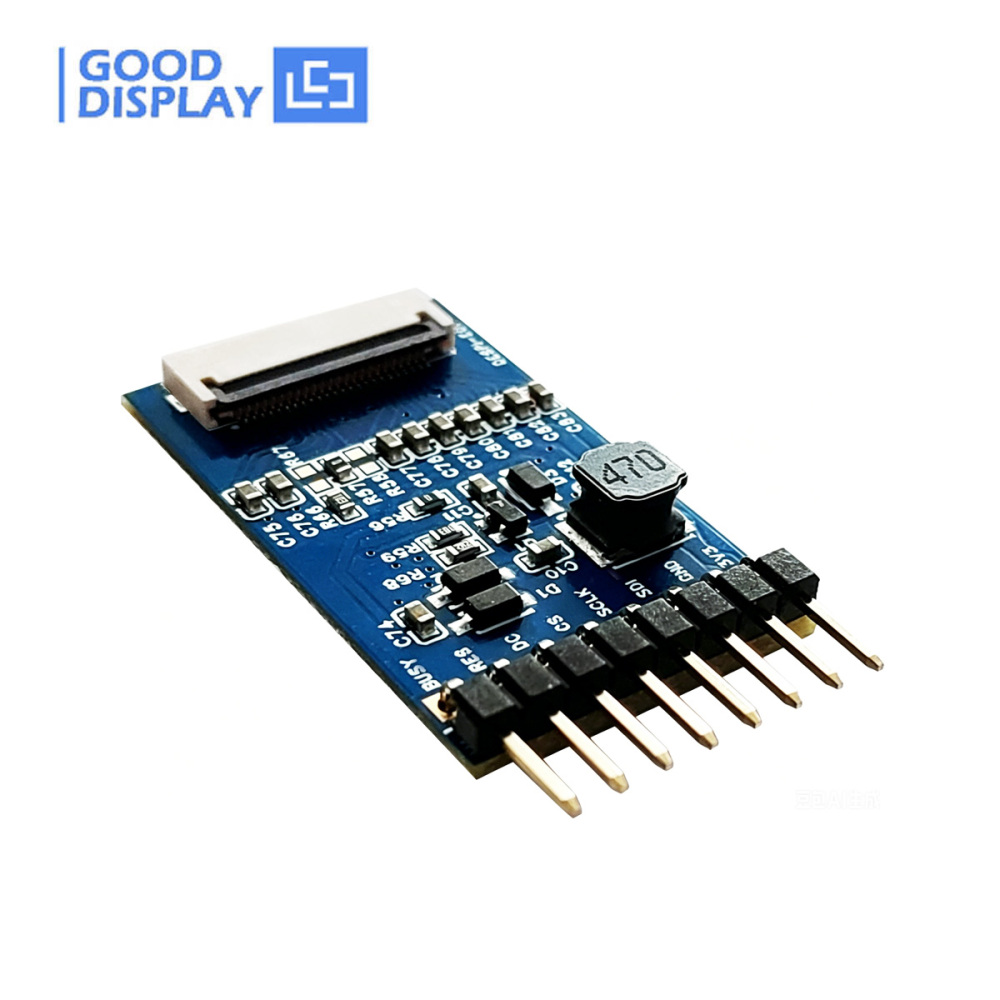

Gone are the days of messy breadboard wiring, pinout mismatches, and voltage-related display damage. This adapter integrates all necessary supporting circuitry — including voltage regulation and level shifting — onto a tiny 35×20mm PCB, so you can focus on building your project, not debugging hardware.

Key Advantages

Dual-size support

compatible with both 1.54" and 3.7" E6 Spectra 6 panels, saving hardware rework during prototyping.

Built-in power & level conversion

onboard voltage regulation and level shifting eliminate the need for external drive circuits.

Standard SPI + mainstream readiness

uses common SPI pins and is ESP32 friendly, enabling quick software integration with existing libraries.

Technical Specifications

Outline Size DESPI-E01

Outline Dimensions (mm) 35 x 20 (Compact Form Factor)

Power Input 3.3V

Operating Temperature 0~50℃

Display Interface 24-PIN 0.5mm FPC

Primary Functions Supplies driving voltages for the e-paper display
Provides a communication interface between the display and the host controller
Enables rapid familiarization with e-paper operation and integration

Additional Features Power consumption measurement for the e-paper display
Operating state monitoring

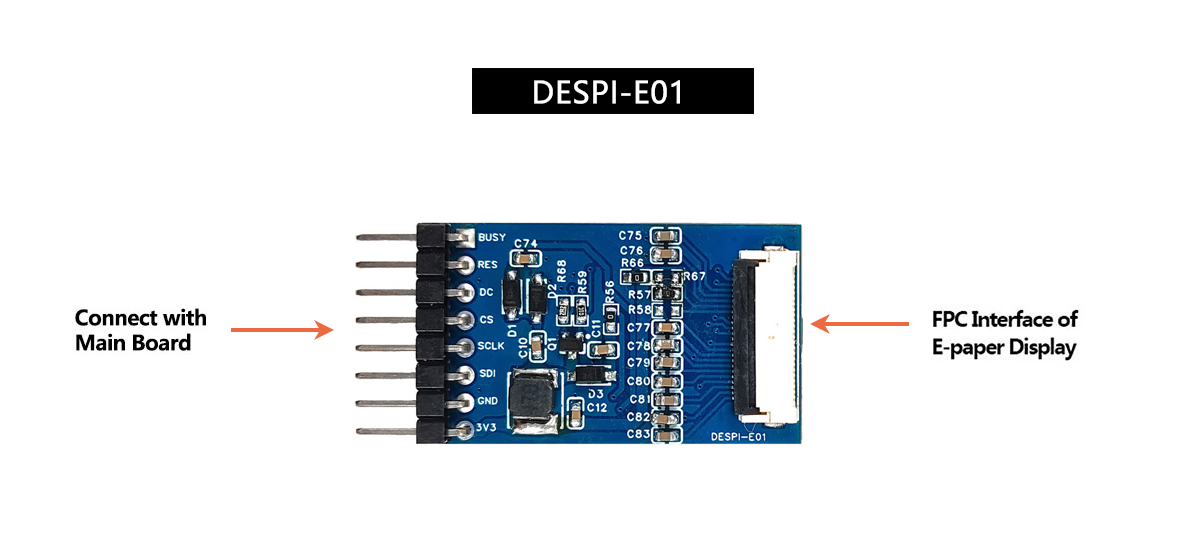

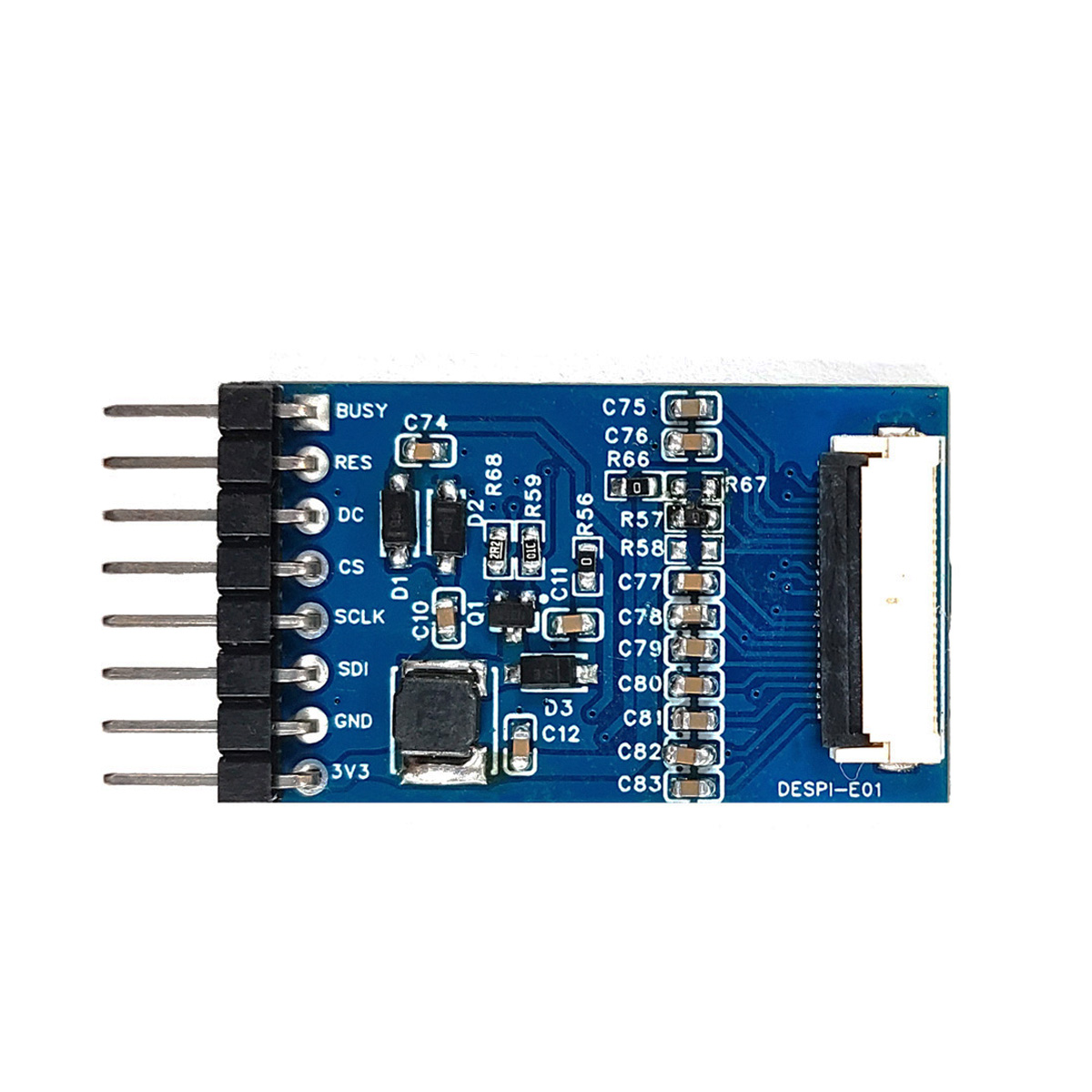

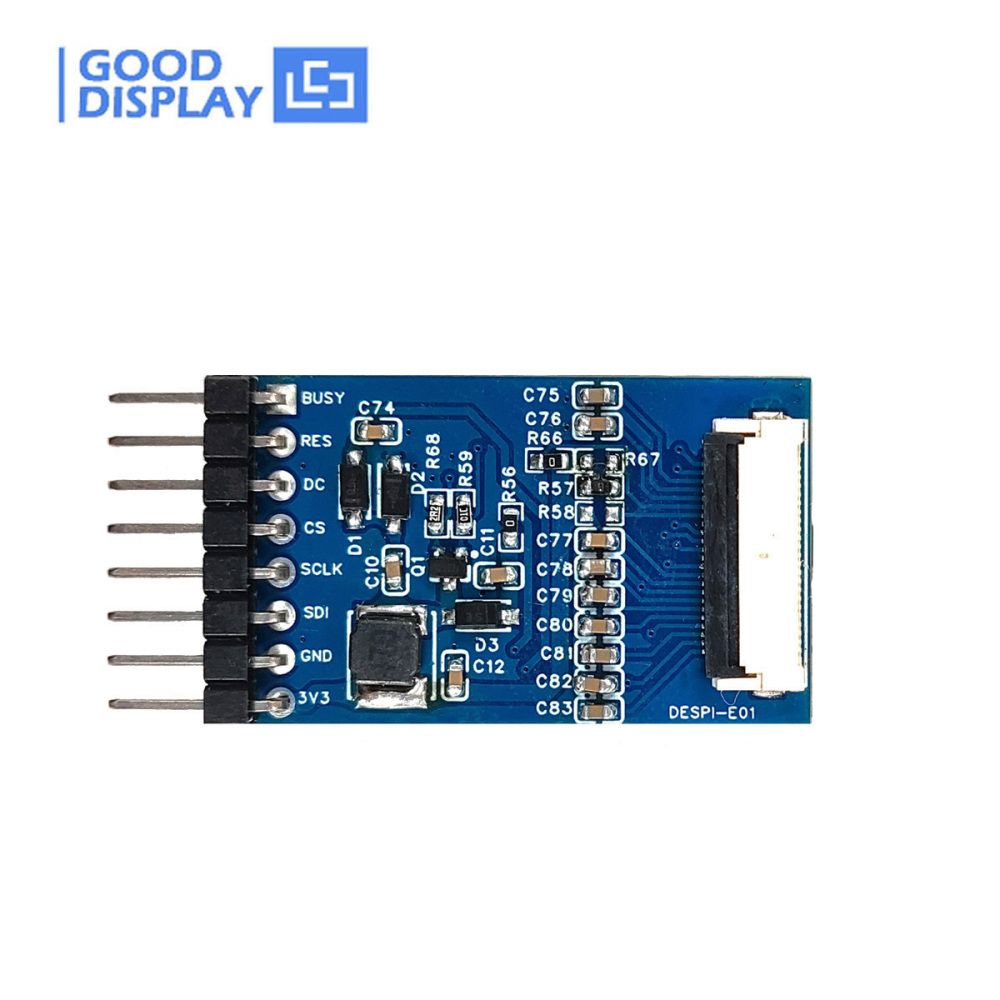

Display Pin Functions

Pin Functions	Function Description
BUSY	E-paper busy status output
RES	Reset signal, active low
DC	Data/Command selection: high=data, low=command
CS	Chip select, active low
SCK	SPI serial clock input
SDI	SPI serial data input (MOSI)
GND	Power ground
3.3V	Positive power supply 3.3V
