Name: 24 pin serial ePaper screen HAT adapter board Connection Adapter Board for E Ink Displays, DESPI-C02
Brand: GOOD DISPLAY
SKU: DESPI-C02
Price: 5.6 USD
Availability: InStock
Rating: 5 (7 reviews)

SKU: DESPI-C02

(7)

820 Sold

$5.60 ~~$6.99~~

20% OFF

Whether you're developing a cutting-edge project or simply enhancing your current setup, the DESPI-C02 Adapter Board is the perfect addition to your toolkit. Elevate your ePaper display projects with confidence and ease.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (4)

1/1

Description

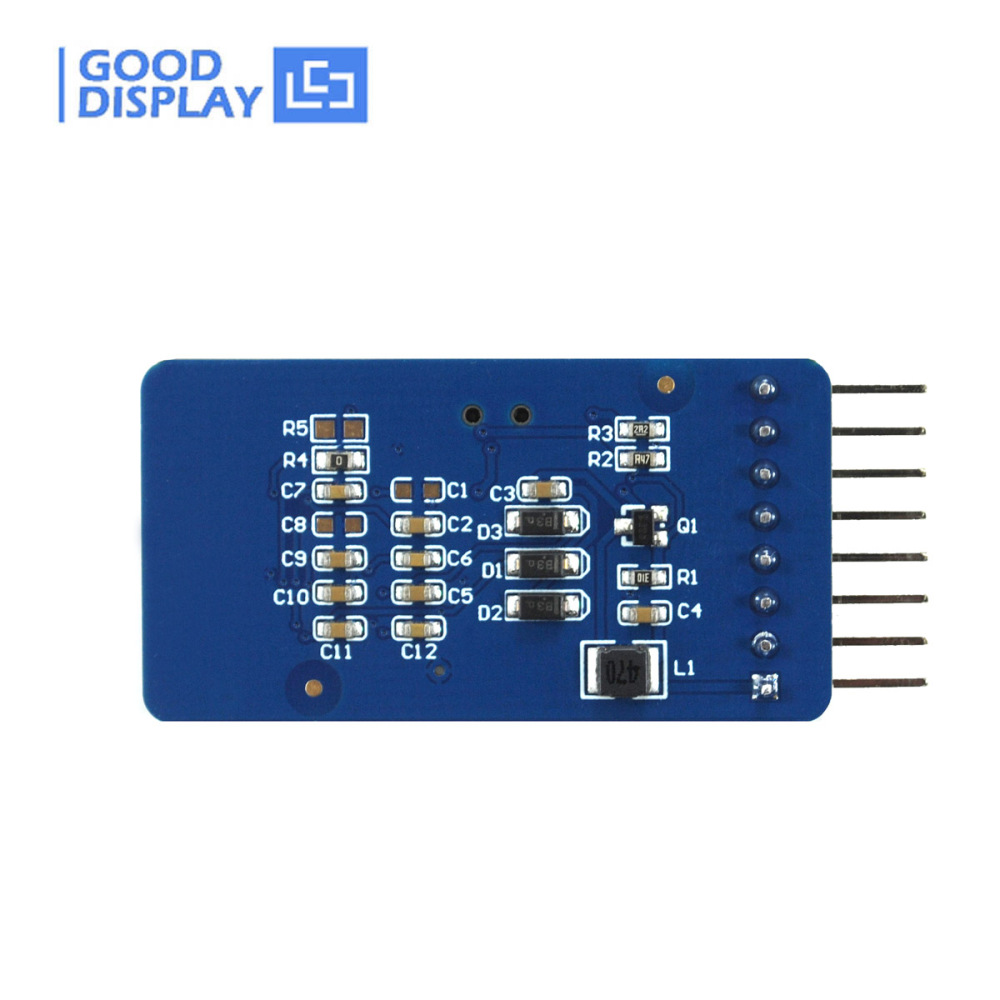

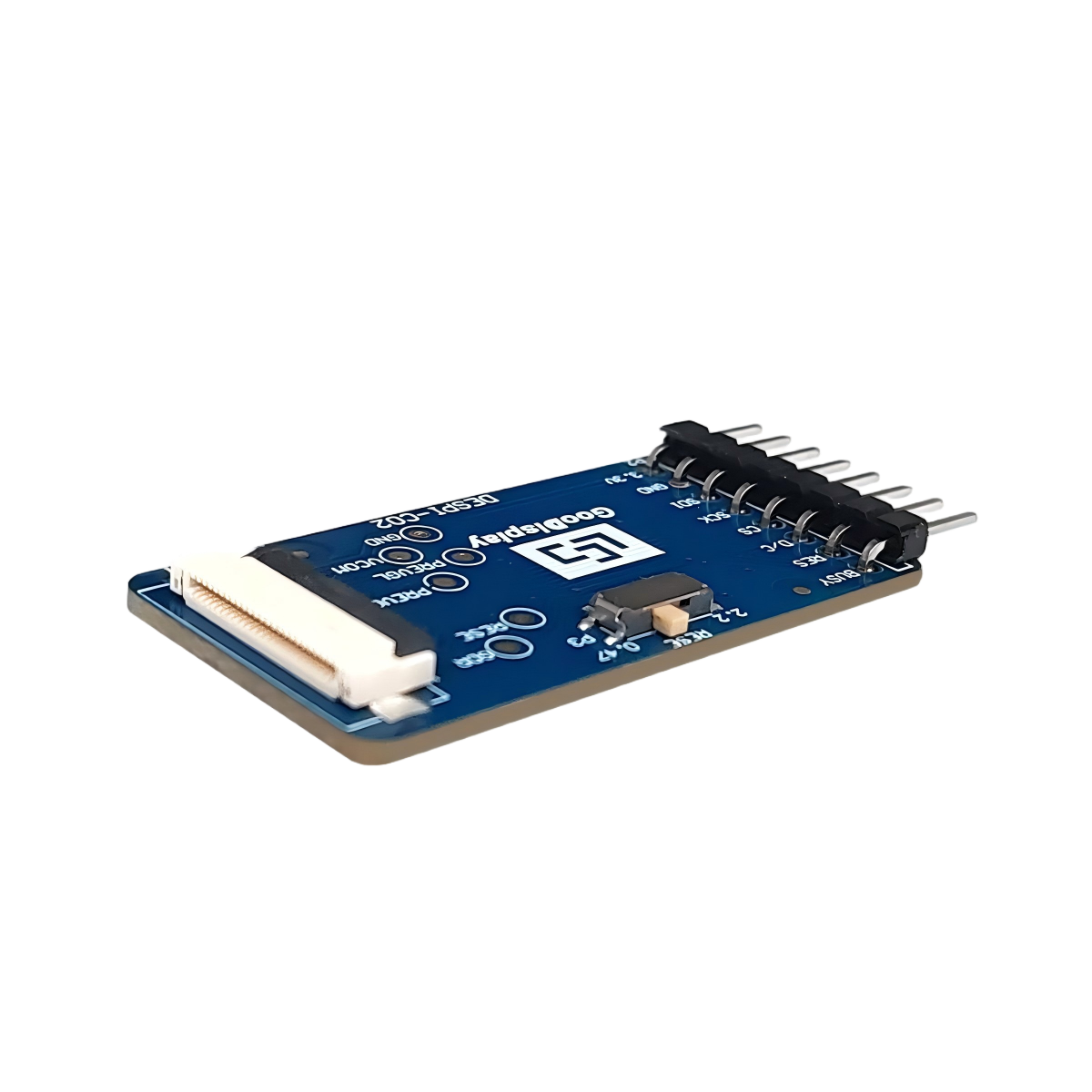

24-Pin E-Ink Display Adapter Board

Unlock the full potential of your ePaper screens with the DESPI-C02 HAT Adapter Board, designed to seamlessly integrate with a range of microcontrollers and development boards.

Key Advantages

Broad Compatibility

Compatible with most 24PIN SPI e-paper displays up to 13.3 inches, meeting diverse display requirements.

Plug & Play Design

Direct connection with mainstream development boards, eliminating complex wiring and simplifying development.

Smart DIP Switch

Built-in DIP switch for easy resistance adjustment, compatible with UC, SSD and other driver IC series.

Debugging Support

Provides power measurement, status detection, and professional voltage test points for circuit validation.

Technical Specifications

Outline size 41x22mm

Communication Interface SPI

Screen Interface 24PIN 0.5mm

Key Components SI1308EDL, MBR0530

DIP Switch RESE resistor selection (2.2Ω, 0.47Ω)

Operating Voltage 3.3V

Operating Temperature -20~70℃

Platform Compatibility

Direct connection with various mainstream development boards for seamless development experience:

Application Scenarios

Embedded & IoT Development

Display interface development for low-power embedded and IoT systems.

Rapid Prototyping

Functional verification and prototyping of E-paper display modules.

Circuit Design & Tuning

E-paper driver circuit design and performance optimization.

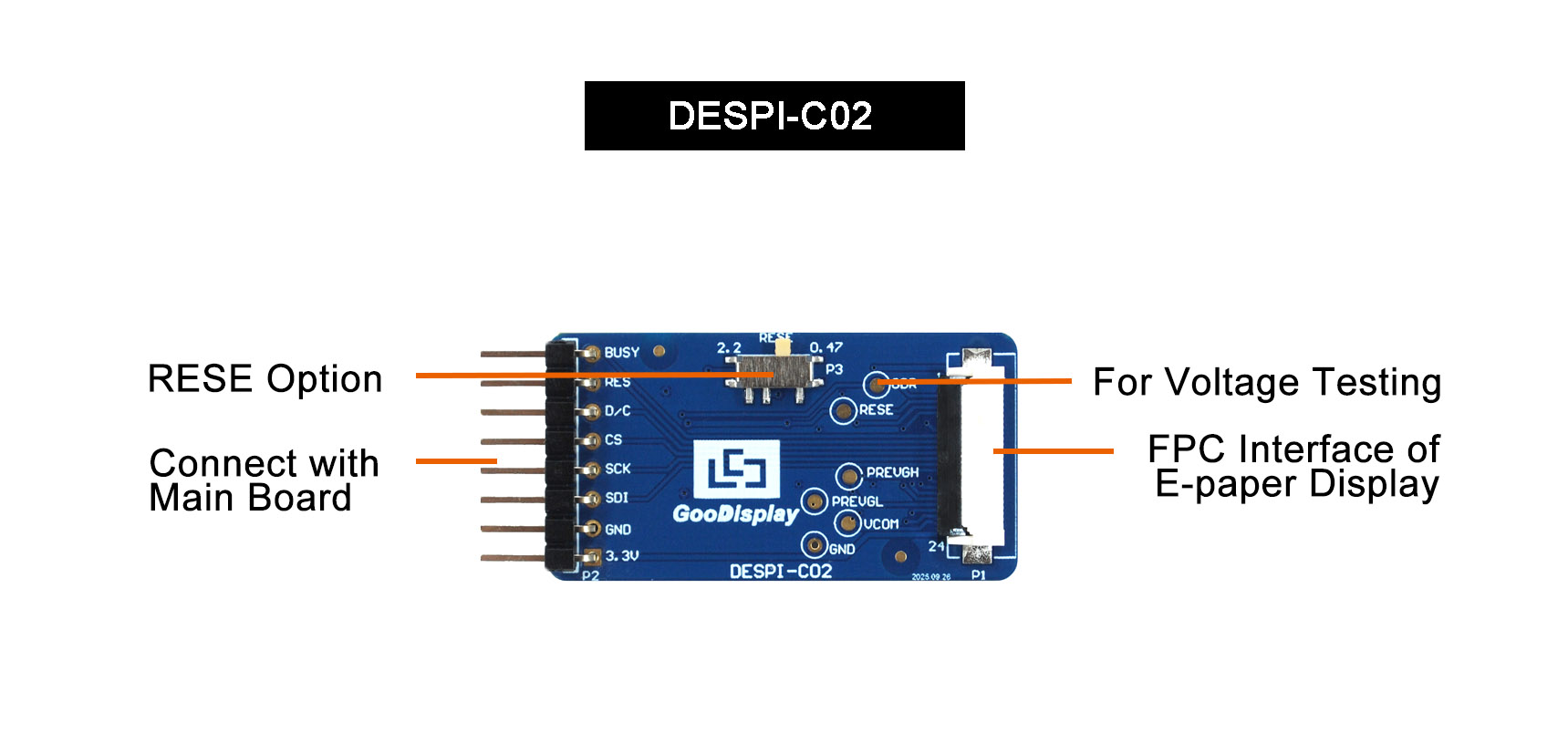

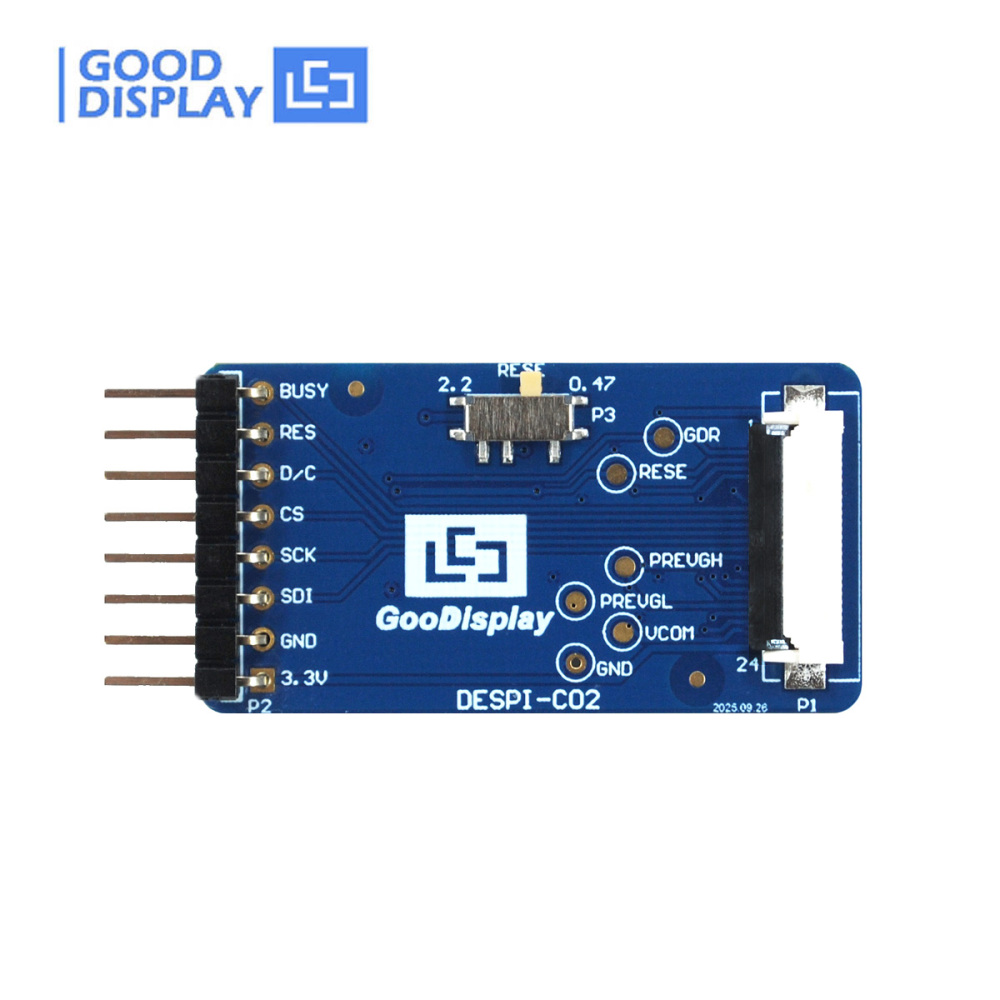

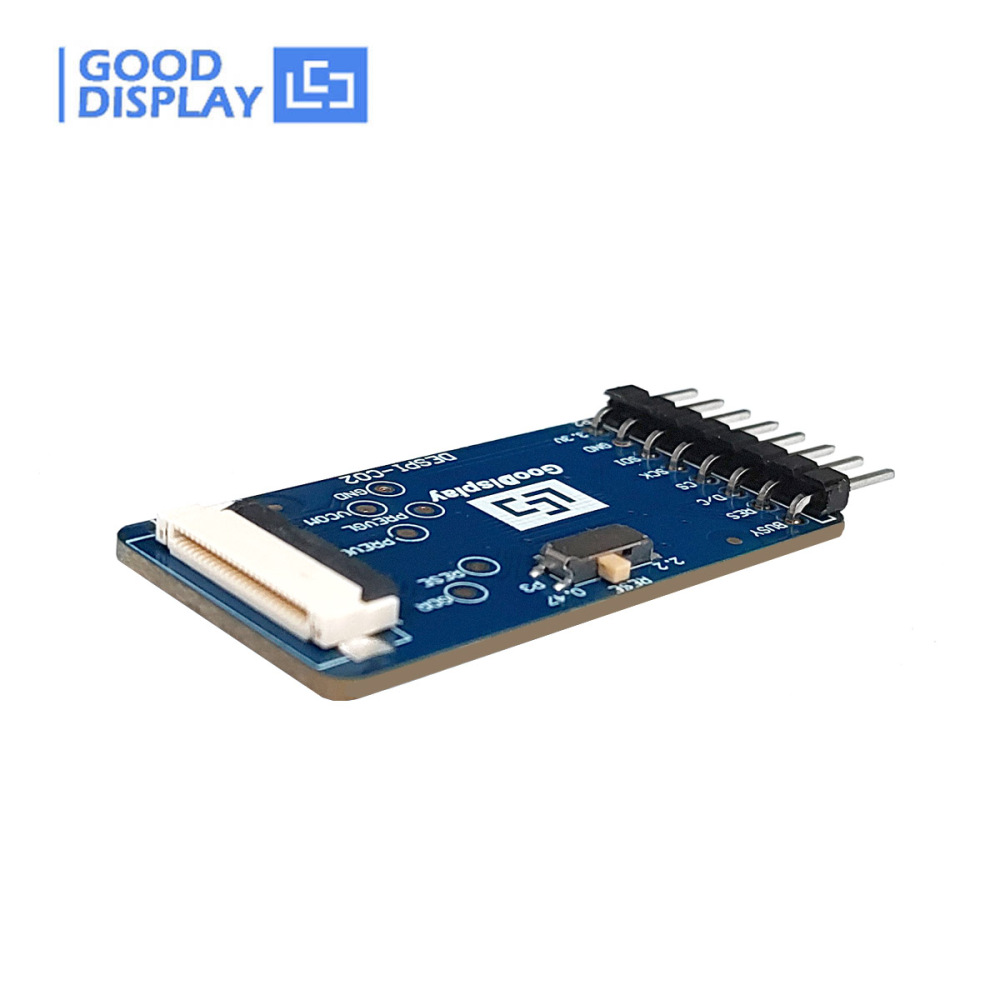

Display Pin Functions

Pin Name	Function Description
BUSY	Busy status output pin
RES	External reset pin (low = reset)
D/C	Data/Command control pin (high = data, low = command)
CS	SPI chip select pin (active low)
SCK	SPI clock signal line
SDI	SPI data input line
GND	Ground
3.3V	Power supply (positive)

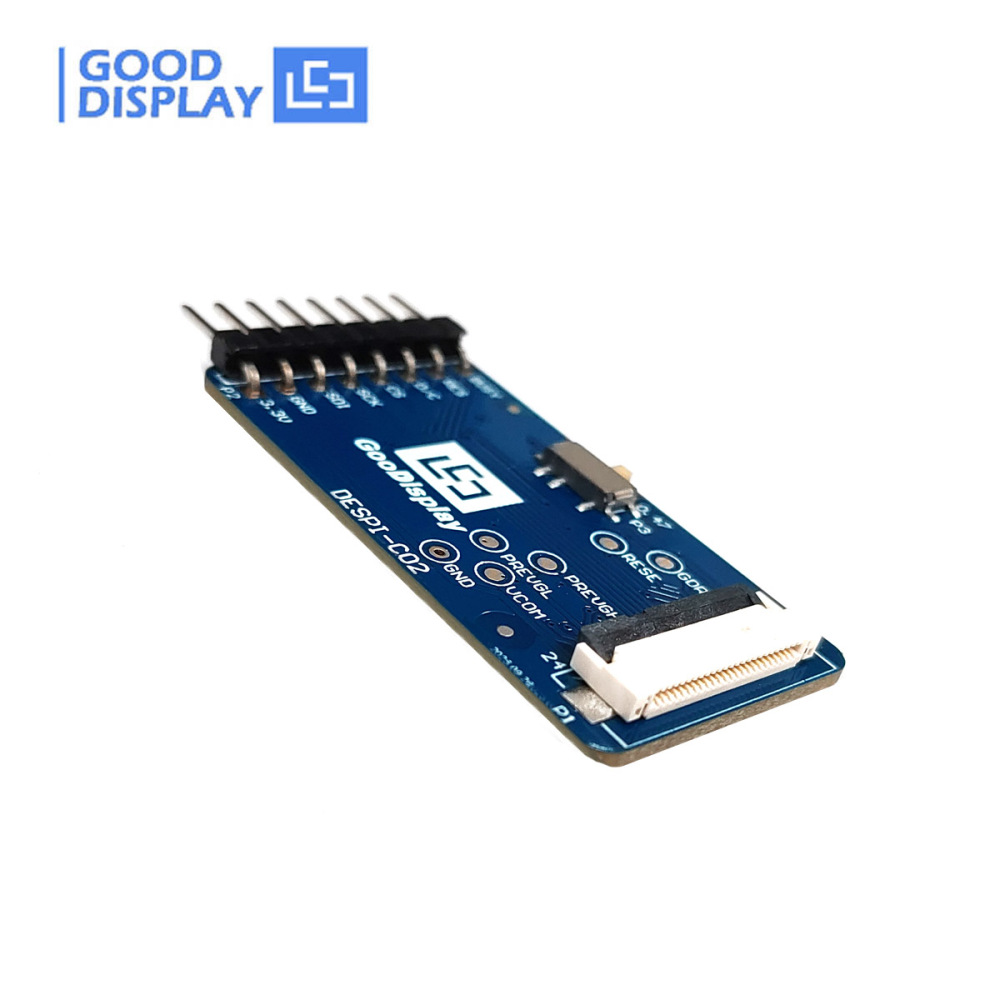

E-Paper Display Connection

Flip up the connector latch. Make sure the e-paper display is facing white side up (silver side down).

Insert the display into the connector, then press the latch down to secure the connection.
