☆ INTRODUCTION
ESP32-L evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving Good Display's black-white e-paper display and three-color (black, white and red/Yellow) e-paper display: 0.97'', 1.54'',2.13'', 2.66'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''. And it is added the functions of USB serial port and LED indicator light, Reset button, font chip, Flash chip and etc.

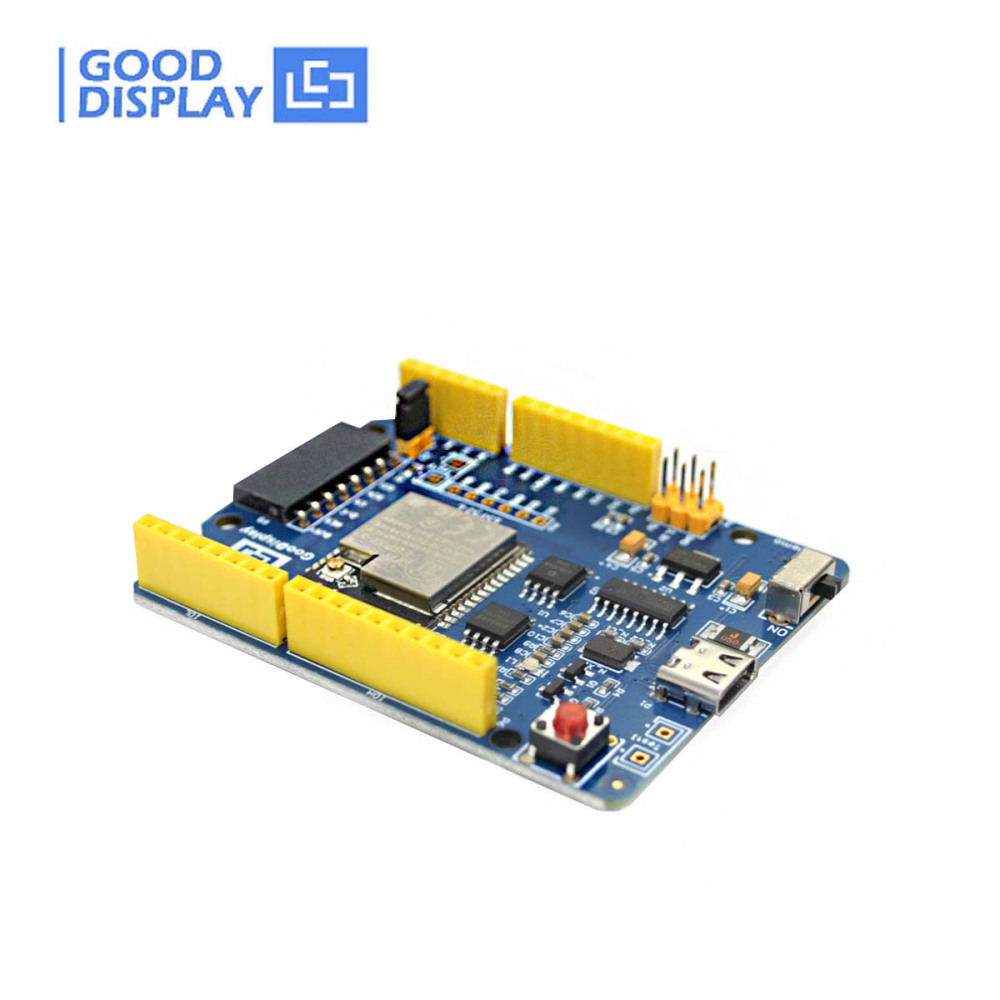

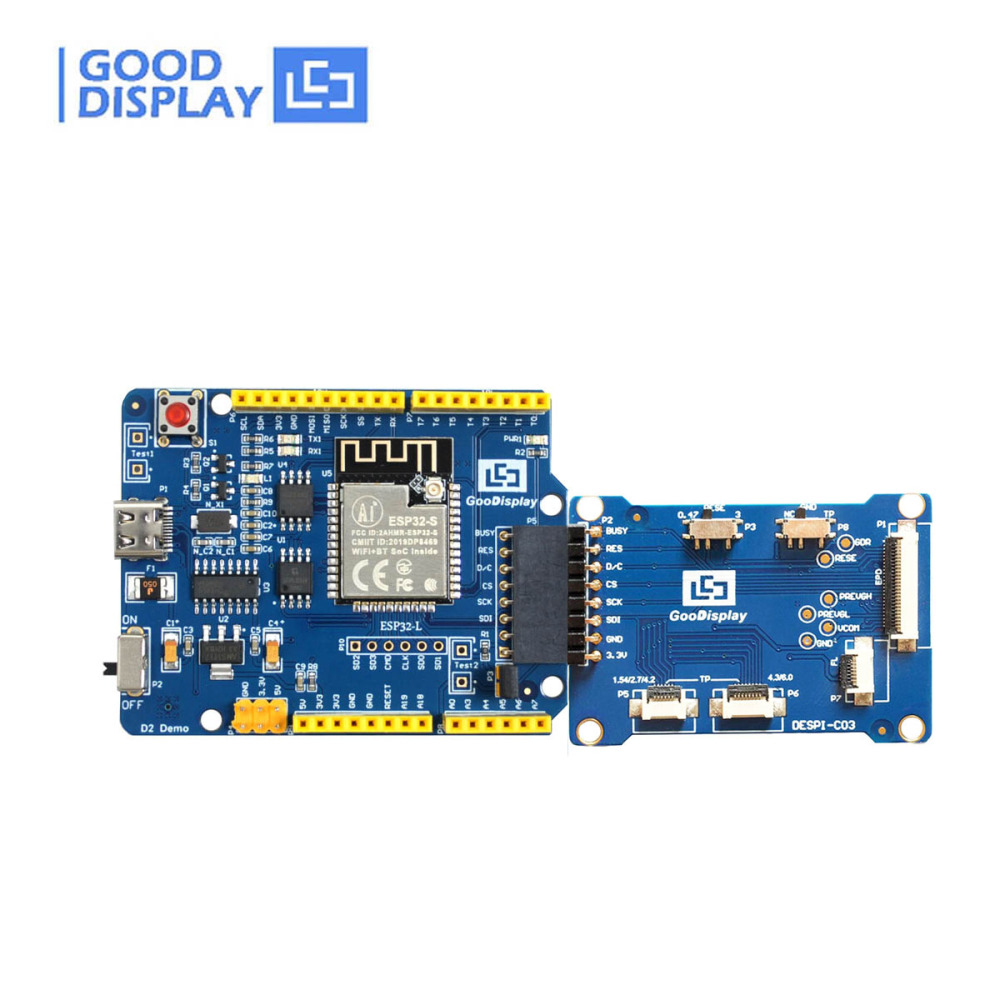

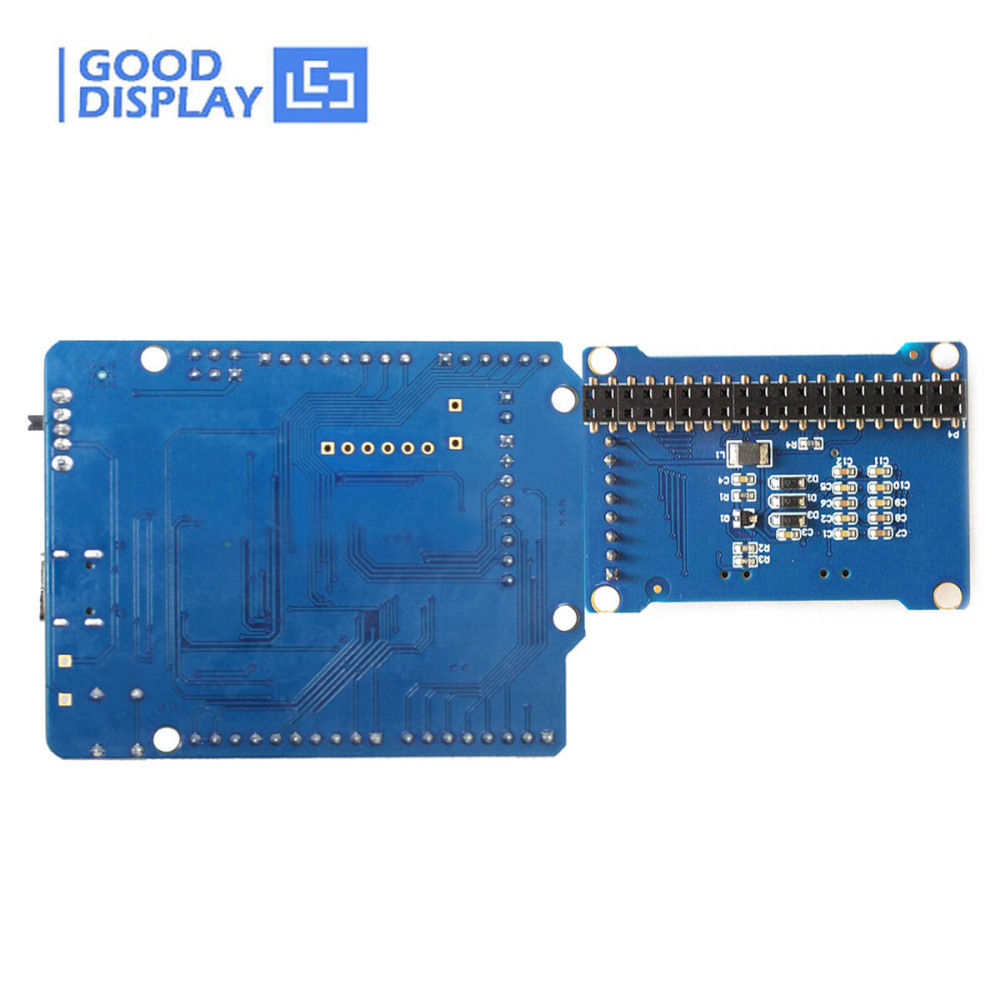

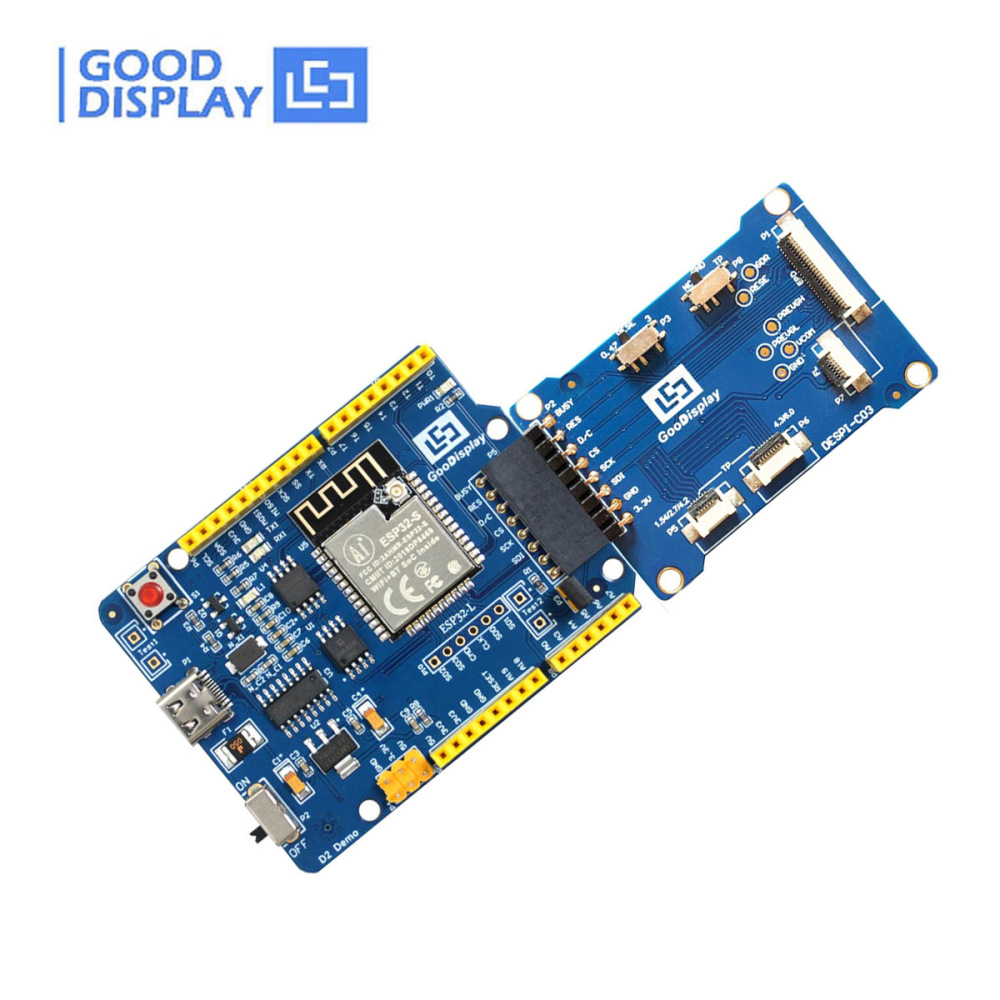

ESP32-L（C03）development kit consists of motherboard ESP32-L for EPD and connector board DESPI-C03
ESP32-L(C03)development kit is only for driving the e-paper, WIFI, BLE and other functions need to be developed by users according to the project.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE
1) Driving board ESP32-L * 1pc

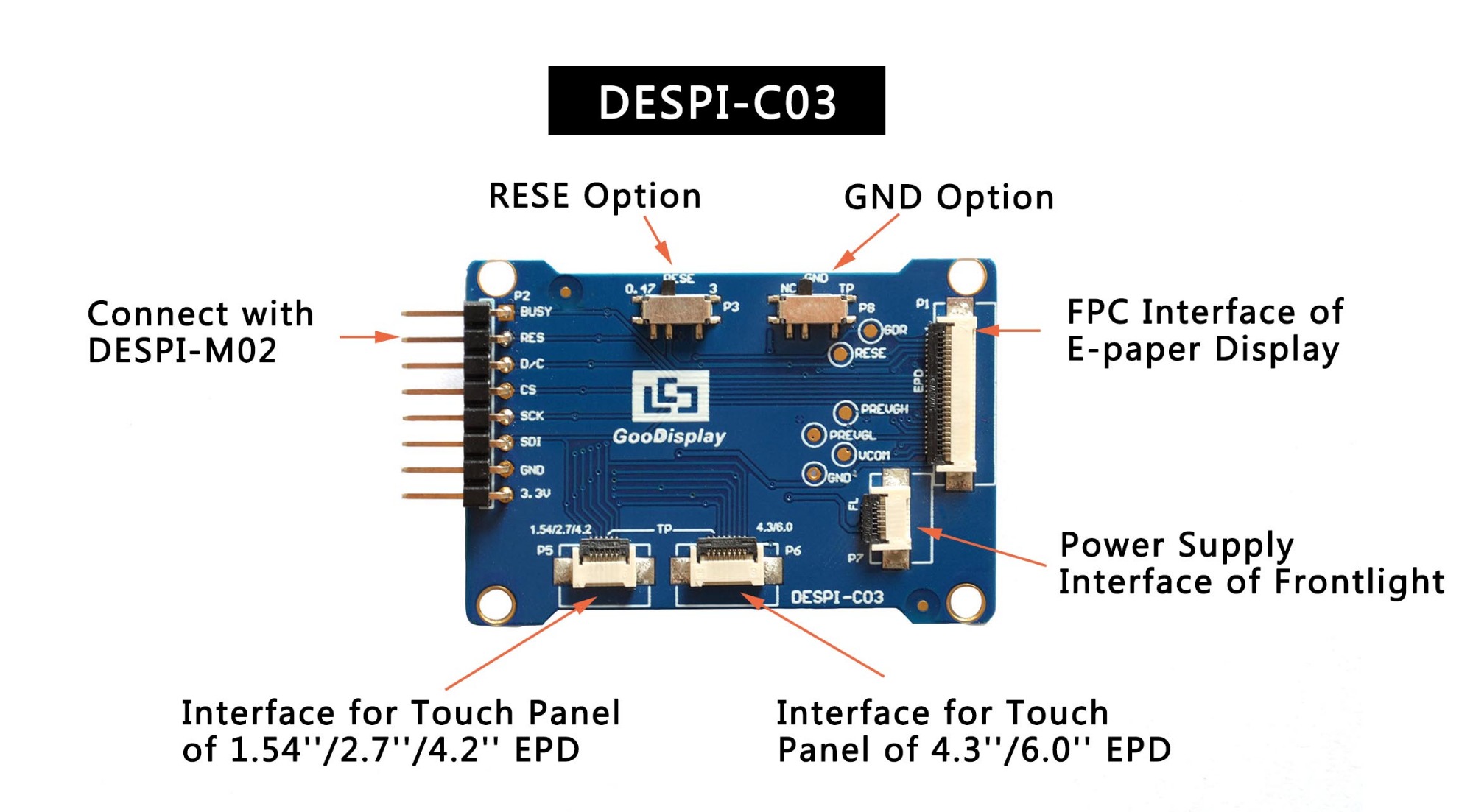

2) Connector board DESPI-C03 * 1pc
3) USB port cable * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
ESP32-L(C03) |
| PLATFORM |
Arduino |
| OUTSIDE DIMENSION |
70mm x 54mm (ESP32-L)
52mm x36mm (DESPI-C03) |
| POWER INTERFACE |
Type-C |
| OPERATING TEMP. |
-20~70℃ |
| Power Input |
DC5V |
| Feature |
Max 4 grey scale |
| Recommended Tool |
Arduino |
| Additional Funtion |
Type-C interface; Indicator light; Reset button; Font chip; Flash chip; Current detection; Touch screen driving; Backlight driving |
| Main Function |
Learn to drive e-paper display;
Test and evaluate e-paper display;
Support secondary development
|
☆ DETAIL
☆ ABOUT US
Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com
| PART NUMBER |
SIZE |
COLOR |
GREY SCALE |
RESOLUTION |
ACTIVE SIZE(mm) |
FULL REFRESH TIME (S) |
OPERATING TEMP. |
PARTIAL REFRESH |
FLEXIBLE |
INTERFACE |
| GDEW0102T4 |
1.02'' |
BW |
2 |
128x80 |
21.76x14 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW0102I3F |
1.02'' |
BW |
2 |
128x80 |
21.76x14 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
| GDEW0154M10 |
1.54'' |
BW |
2 |
152x152 |
27.512x27.512 |
3 |
-20℃~60℃ |
|
|
SPI |
| GDEH0154D67 |
1.54'' |
BW |
4 |
200x200 |
27x27 |
2 |
0℃~50℃ |
√ |
|
SPI |
| GDEW0154M09 |
1.54'' |
BW |
2 |
200x200 |
27.6x27.6 |
0.82 |
0℃~50℃ |
√ |
|
SPI |
| GDEW0154T8D |
1.54'' |
BW |
4 |
152x152 |
27.51x27.51 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEH0154Z90 |
1.54'' |
BWR |
2 |
200x200 |
27x27 |
15 |
0℃~40℃ |
|
|
SPI |
| GDEW0213M21 |
2.13'' |
BW |
2 |
212x104 |
48.548x23.712 |
3 |
-20℃~60℃ |
|
|
SPI |
| GDEW0213I5FD |
2.13'' |
BW |
4 |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
| GDEM0213B74 |
2.13'' |
BW |
4 |
250x122 |
48.55x23.7 |
3 |
0℃~50℃ |
|
|
SPI |
| GDEM0213U23 |
2.13'' |
BWR |
2 |
250x122 |
23.67x48.50 |
- |
0℃~25℃ |
|
|
SPI |
| GDEM0213D23 |
2.13'' |
BW |
2 |
250x122 |
23.67x48.50 |
- |
0℃~25℃ |
|
|
SPI |
| GDEW0213V7LT |
2.13'' |
BW |
2 |
212x104 |
48.55x23.71 |
3 |
-25℃~10℃ |
√ |
|
SPI |
| GDEY0213Z98 |
2.13'' |
BWR |
2 |
250x122 |
48.55x23.7046 |
14 |
0℃~40℃ |
|
|
SPI |
| GDEW0213T5D |
2.13'' |
BW |
4 |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW0213T5D-FL01(With Frontlight) |
2.13'' |
BW |
4 |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW026T0D |
2.6'' |
BW |
4 |
296x152 |
60.09x30.7 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW027W3 |
2.7'' |
BW |
4 |
264x176 |
57.288x38.192 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW027W3-T(With Touch Panel) |
2.7'' |
BW |
4 |
264x176 |
57.288x38.192 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEM029E97 |
2.9'' |
BW |
2 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
|
|
SPI |
| GDEH029Z13 |
2.9'' |
BWR |
2 |
296x128 |
66.9x29.06 |
15 |
0℃~40℃ |
|
|
SPI |
| GDEM029T94 |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEY029T94 |
2.9'' |
BW |
4 |
296x128 |
66.896x29.056 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW029M06 |
2.9'' |
BW |
2 |
296x128 |
66.896x29.056 |
3 |
-20℃~60℃ |
|
|
SPI |
| GDEW029I6FD |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
| GDEW029T5D |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW029T5D-FL02(With Frontlight) |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEH037Z01 |
3.71'' |
BWR |
2 |
416x240 |
81.54x47.04 |
16 |
0℃~40℃ |
|
|
SPI |
| GDEW0371W7 |
3.71'' |
BW |
2 |
416x240 |
81.536x47.04 |
4 |
0℃~50℃ |
|
|
SPI |
