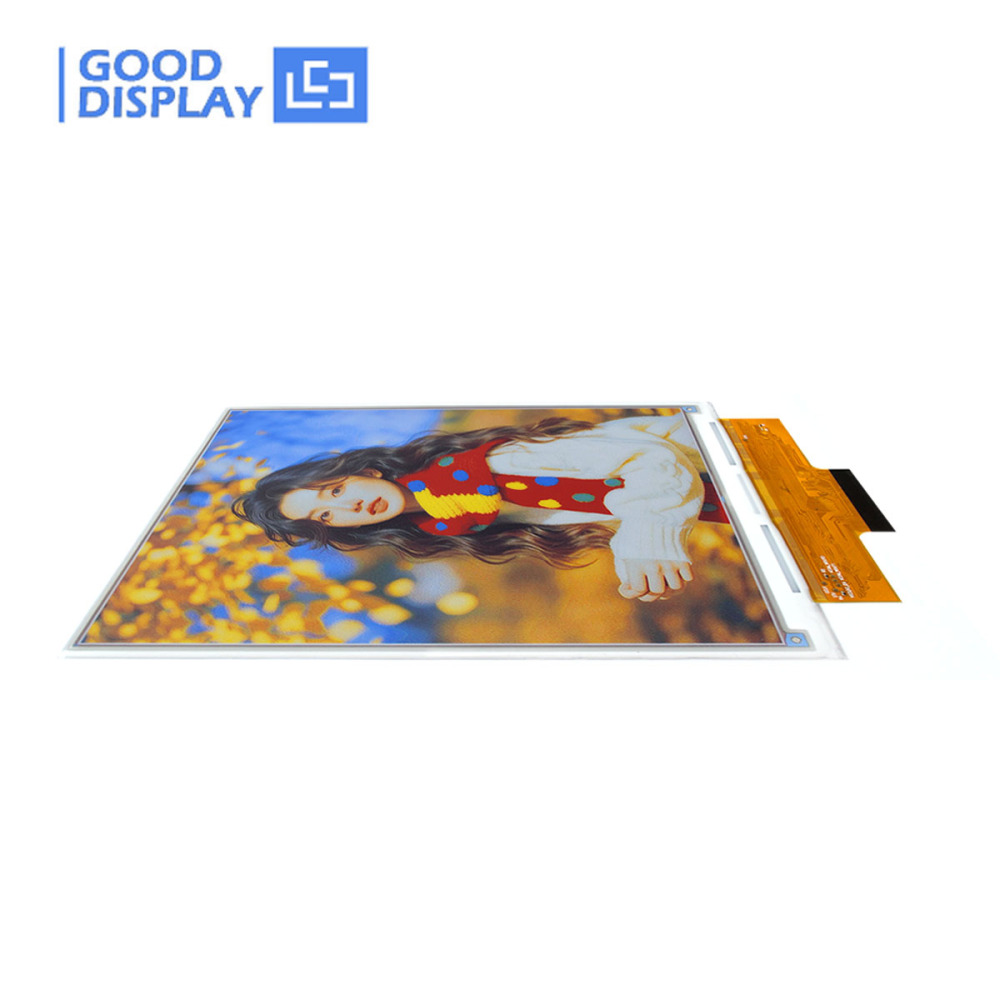

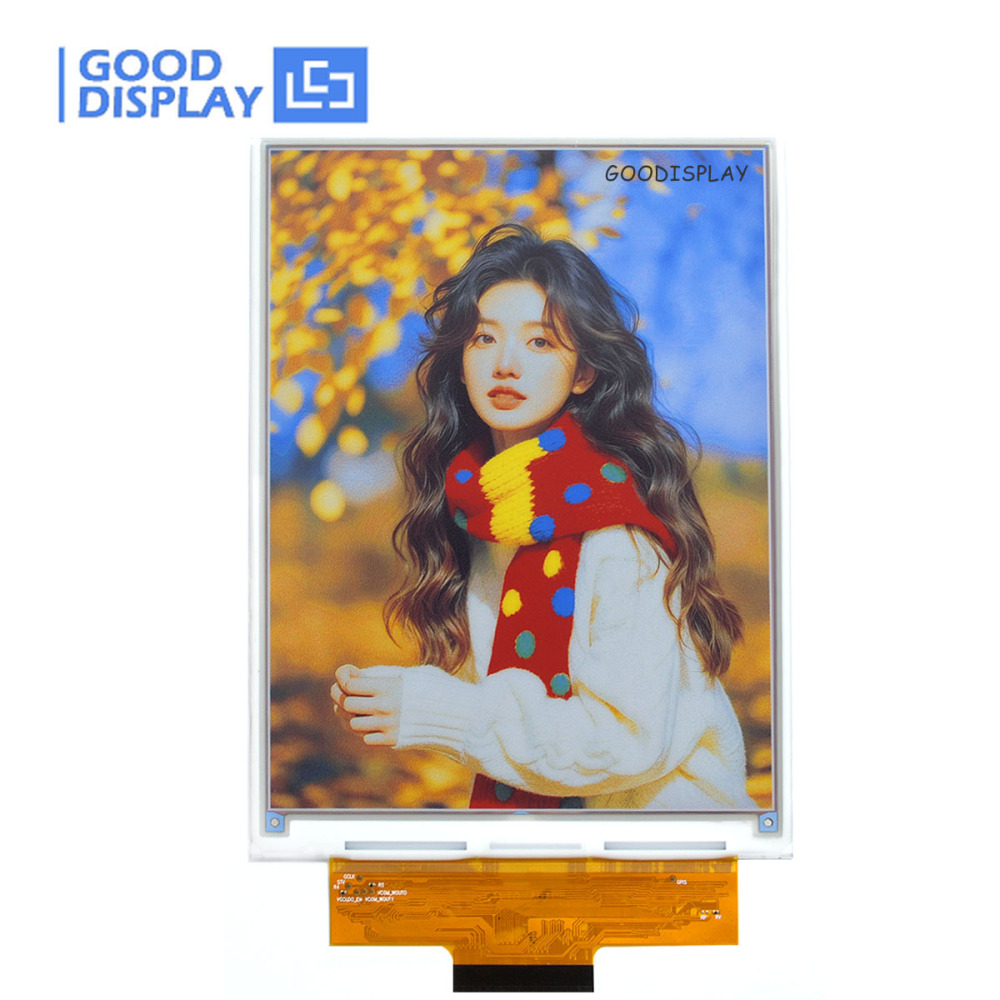

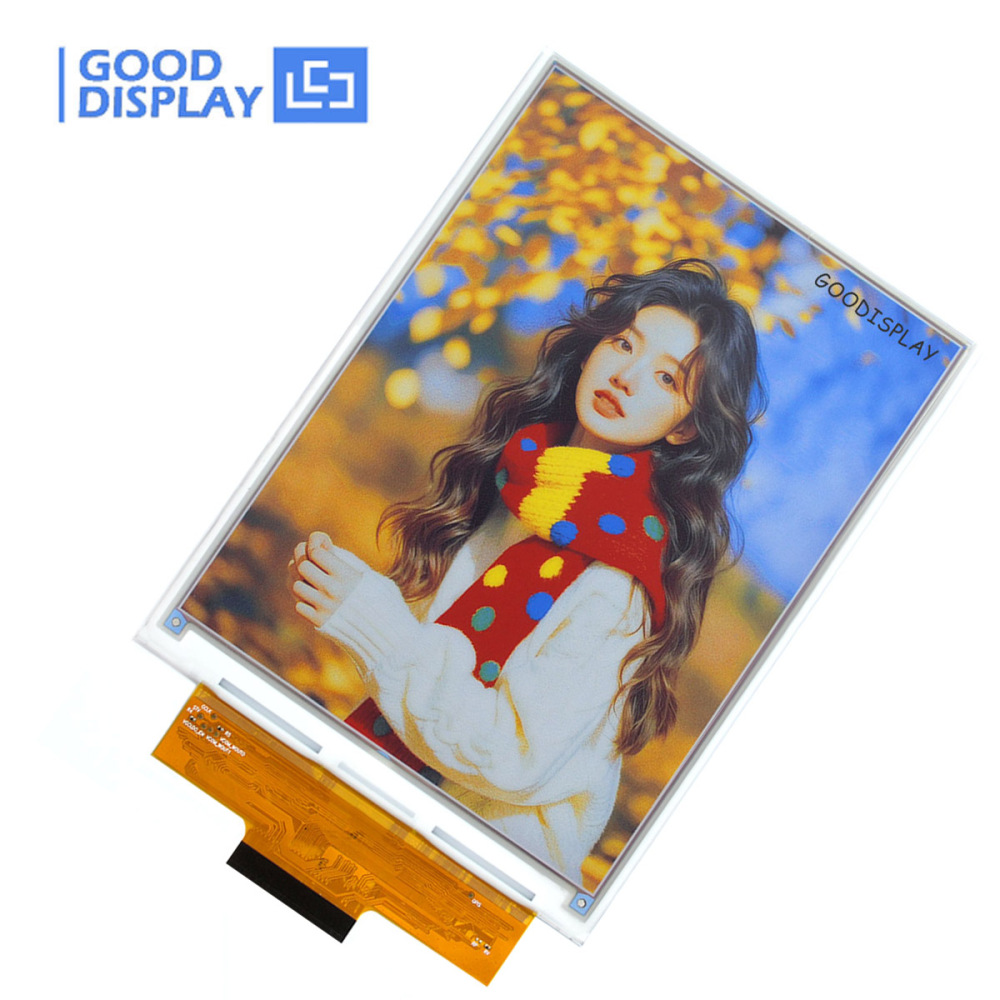

7.09 Inch Six Color E Ink Spectra 6 E-Paper Display 1600×1200 SPI Si TFT Low Power EPD Module for Digital Photo Frame Art Display, GDEB0709E01

Name: 7.09 Inch Six Color E Ink Spectra 6 E-Paper Display 1600×1200 SPI Si TFT Low Power EPD Module for Digital Photo Frame Art Display, GDEB0709E
Brand: GOOD DISPLAY
Price: 72.89 USD
Availability: InStock

(0)

0 Sold

$72.89

The 10-inch E Ink Spectra 6 full-color ink screen kit is a high-performance, integrated solution that has been deeply optimized for large-sized color electronic paper, highly integrated, and ready to use out of the box.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $2.00 OFF ON ORDERS OVER $100.00
GET $6.00 OFF ON ORDERS OVER $199.00
GET $10.00 OFF ON ORDERS OVER $298.00

01/06/2026/00:00:00 - 30/06/2026/00:00:00

Add to Favorites (0)

1/1

Description

7.09" Full-color E-Ink Display

Bring vivid, print-like color visuals to your projects with the 7.09” E Ink Spectra™ 6 Six-Color E-Paper Module. Built with Si TFT active matrix technology, it delivers stunning high HD resolution at 282 PPI, reproducing authentic black, white, red, yellow, blue and green tones.

Only 0.9mm ultra-slim, it operates reliably from 0°C to 50°C and meets RoHS standards. Ideal for digital art frames, industrial control panels, portable low-power gadgets and smart shelf labels.

Core Advantages

Print-Quality 6‑Color Display

✓

Native 6‑Color Technology

Black, white, red, yellow, green and orange – no color filter array, pure pigment particles
✓

Crisp 282 PPI Resolution

Full physical resolution retained in color – nearly 3× sharper than filter‑based e‑paper
✓

Vivid & Saturated Prints

E Ink Spectra™ 6 delivers print‑like quality for art, maps, posters and branding

Paper‑Like Eye Protection & Physical Durability

178°

Viewing Angle

0.9mm

Slim Profile

0‑50°C

Operating Temp.

✓

No Blue Light, No Flicker

Reflective display reads like real paper – comfortable for long viewing sessions
✓

Anti‑Glare Hard Coating

Scratch‑resistant and glare‑reduced – ideal for retail, industrial and public spaces
✓

Wide & Consistent Viewing

Nearly 180° viewing angle ensures clear visibility from any direction

Simple Development & Ultimate Convenience

Active Refresh

Minimal Power

Static Display

0% Power

✓

Zero‑Power Image Retention

Once updated, the display holds content indefinitely without any power draw
✓

Standard SPI Interface

3‑wire / 4‑wire SPI, direct MCU connection – drop‑in ready for any embedded project
✓

Integrated Driver & Minimal BOM

All‑in‑one driver reduces component count, speeds up development and cuts costs

Technical Specifications

Part Number GDEB0709E01

Driver Element a-Si TFT active matrix

FPL Spectra TM 6

Size 7.09"

Outline Size 117x157.7x0.9mm

Interface SPI

Resolution 1600x1200

Active Size 108×144mm

Operating Temp. 0℃~50℃

PPI 282

Pixel Pitch 90x90mm

Storage Temp. -25℃~60℃

Color 6 color(E Ink Spectra 6)

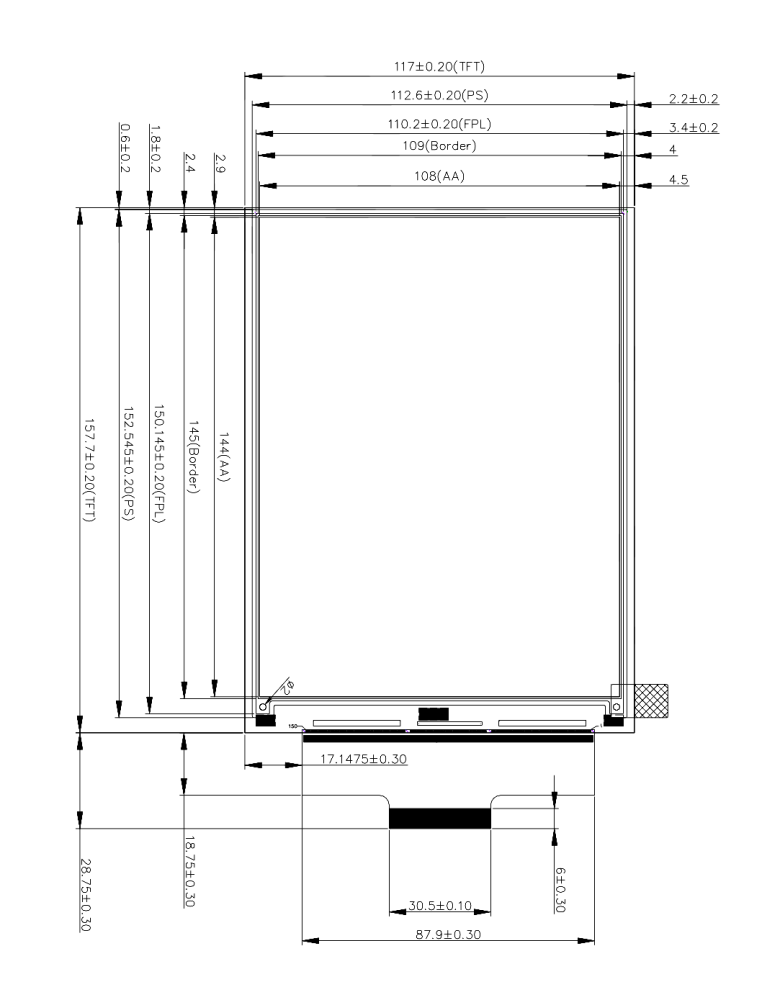

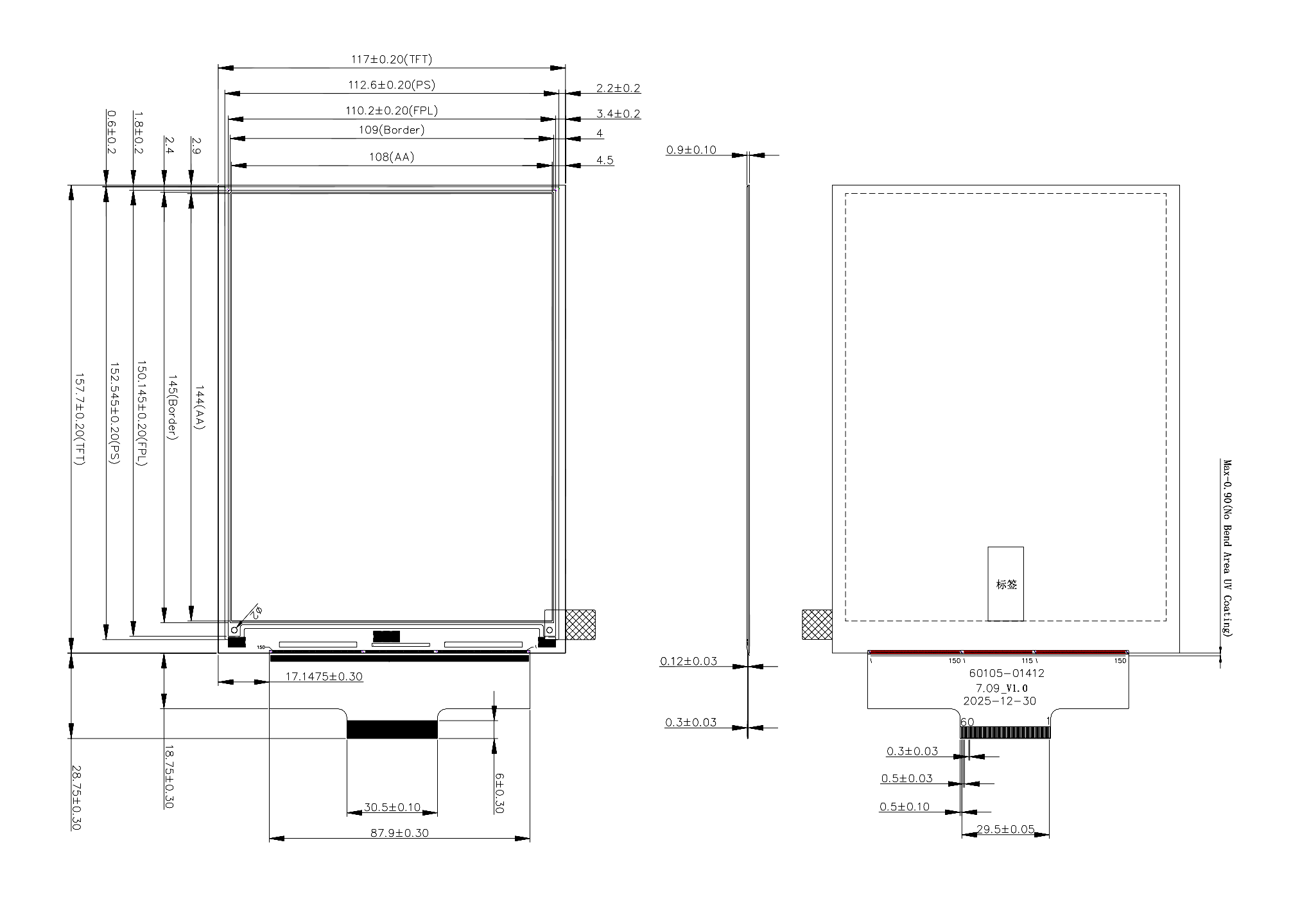

Drawing Details

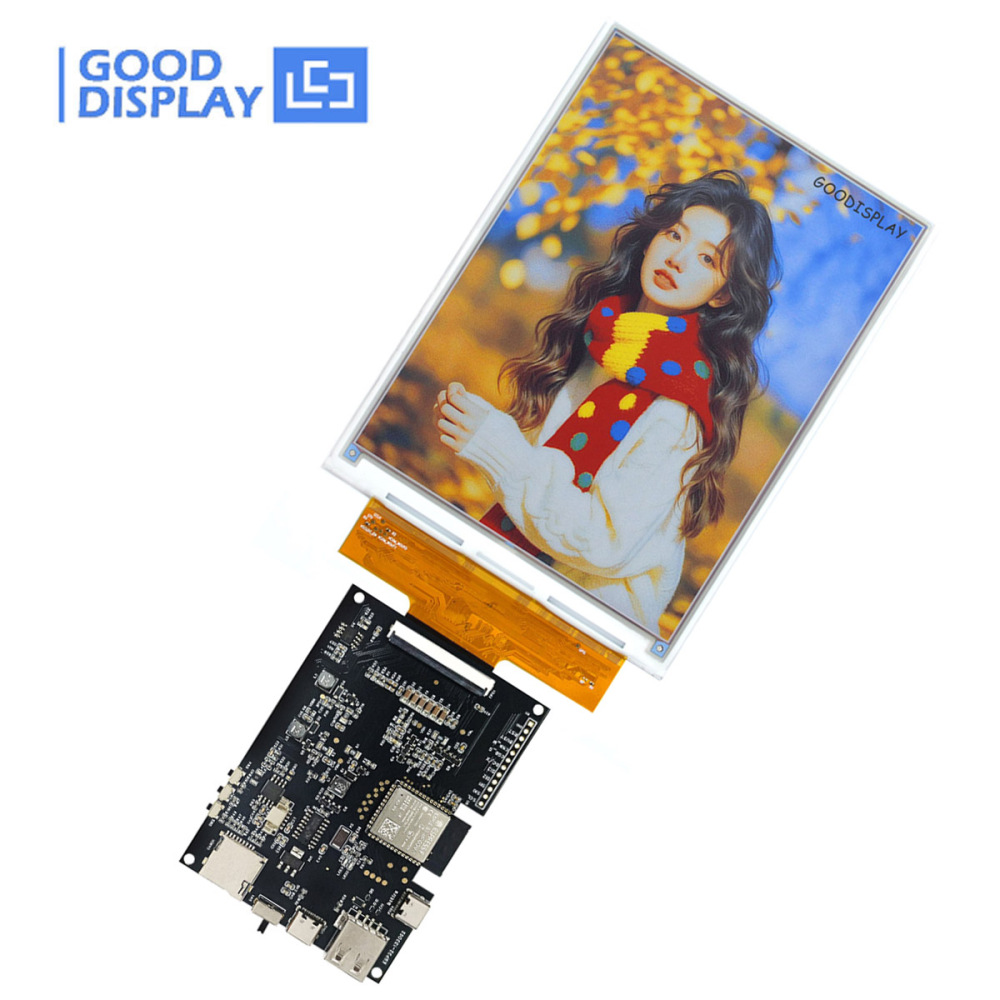

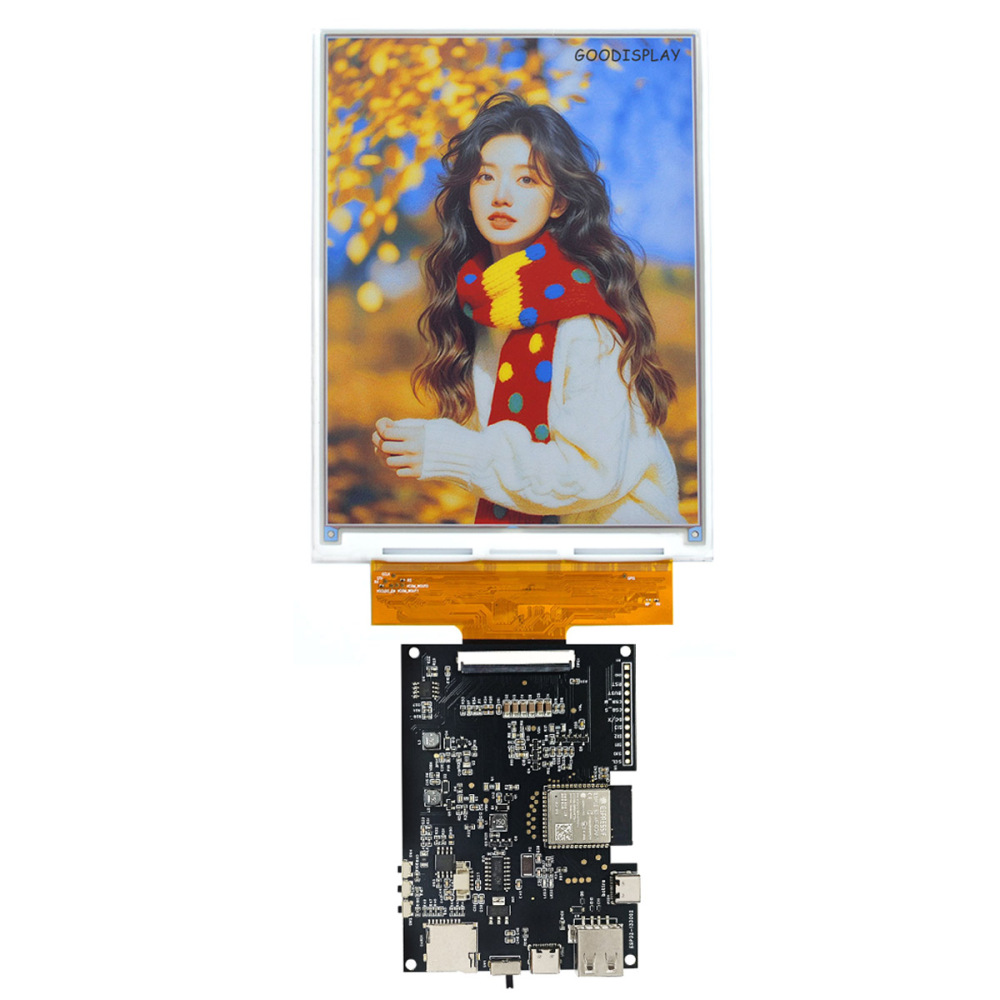

Matching Driver Boards

Official Recommended

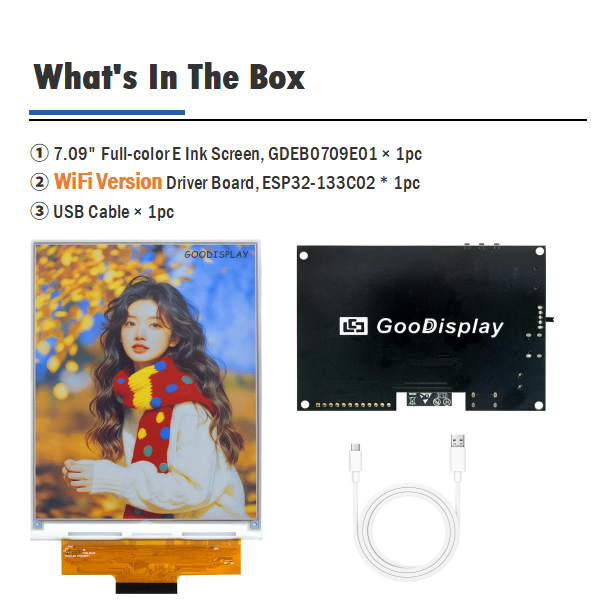

ESP32-133C02

All-in-one development board for 7.09" / 13.3" E Ink Spectra 6. Wi-Fi, BLE, USB-C, and microSD – supports all update methods.

Wi-Fi BLE 5.0 SD Card USB-C Arduino

Learn More →

Software Suite

Official E‑Paper Toolkit

Enhance image quality, batch process, and enable wireless updates for Spectra 6 displays – all in one desktop suite.

⚡ New for E6: Direct SD‑ready BMP – no conversion needed

Explore the Toolkit →

3 Ways to Update Your Display

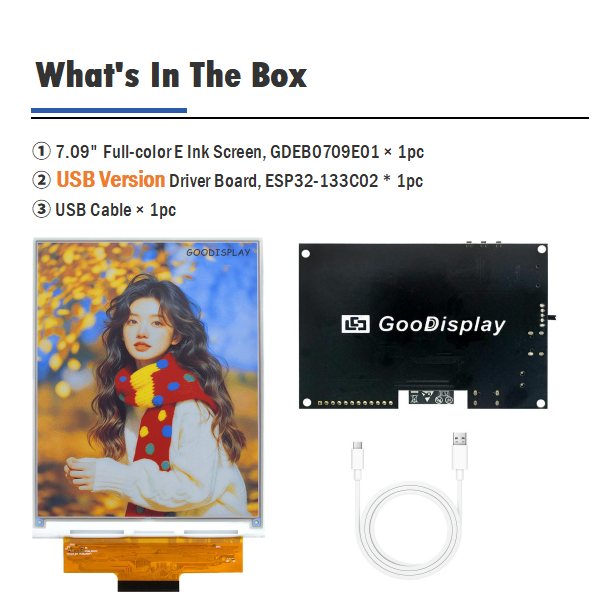

USB Connectivity

Direct connection via USB-C

Update your display quickly and reliably with a direct USB connection to your computer. Ideal for development and debugging.

Download USB Solution

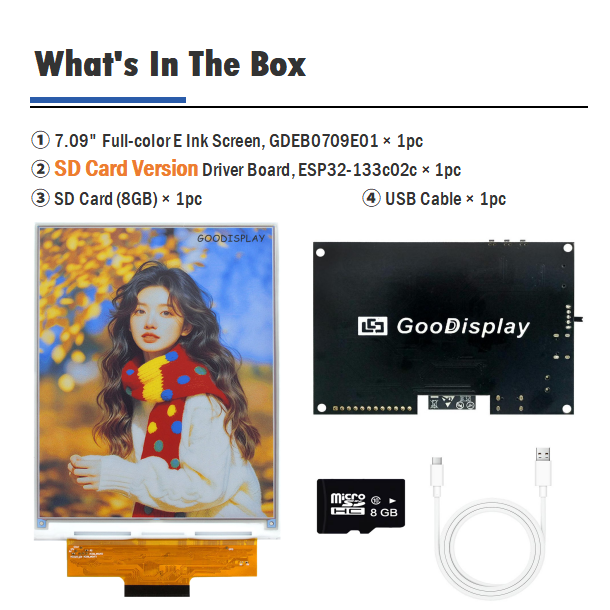

SD Card

Offline image storage

Store images on a microSD card for offline updates. Perfect for standalone applications without continuous connectivity.

Access Dithering Tool

WiFi Transfer

Wireless updates via web interface

Update your display remotely using the built-in web server. Connect from any smartphone, tablet, or computer on the same network.

Download Spectra 6 Tool

Important: Each of the four functions requires a different firmware version. Please select the appropriate model based on the function you need when placing your order. Each model supports only one specific function. Blue and black versions are functionally identical and interchangeable.

Files & Download

[PDF] GDEB0709E01_Speciftiation

[PDF] GDEP133C02-ESP32 Code Example

[ZIP] NeoFrame - Android App

[ZIP] Spectra_6_Tool_Custom plugin and software

[ZIP] Burn firmware to SD card

[ZIP] Burn firmware over WiFi

[PDF] Schematic for ESP32-133C02

[FAQ] Why can't I download the files?

Typical Applications

E-readers

Comics and Art Books

Provides a color reading experience close to that of physical paper books for digital comics and art e-books.

Retail

Museum/Gallery Information Signs

Used to display high-definition color images and detailed descriptions of exhibits. They offer a uniform style, are non-reflective, and blend seamlessly into the exhibition environment.

Lifestyle

High-End Smart Office Notepad/E-Reader

Functions as a large-sized full-color e-notebook, suitable for reading color magazines, annotating PDFs, taking handwritten notes, and drawing.
