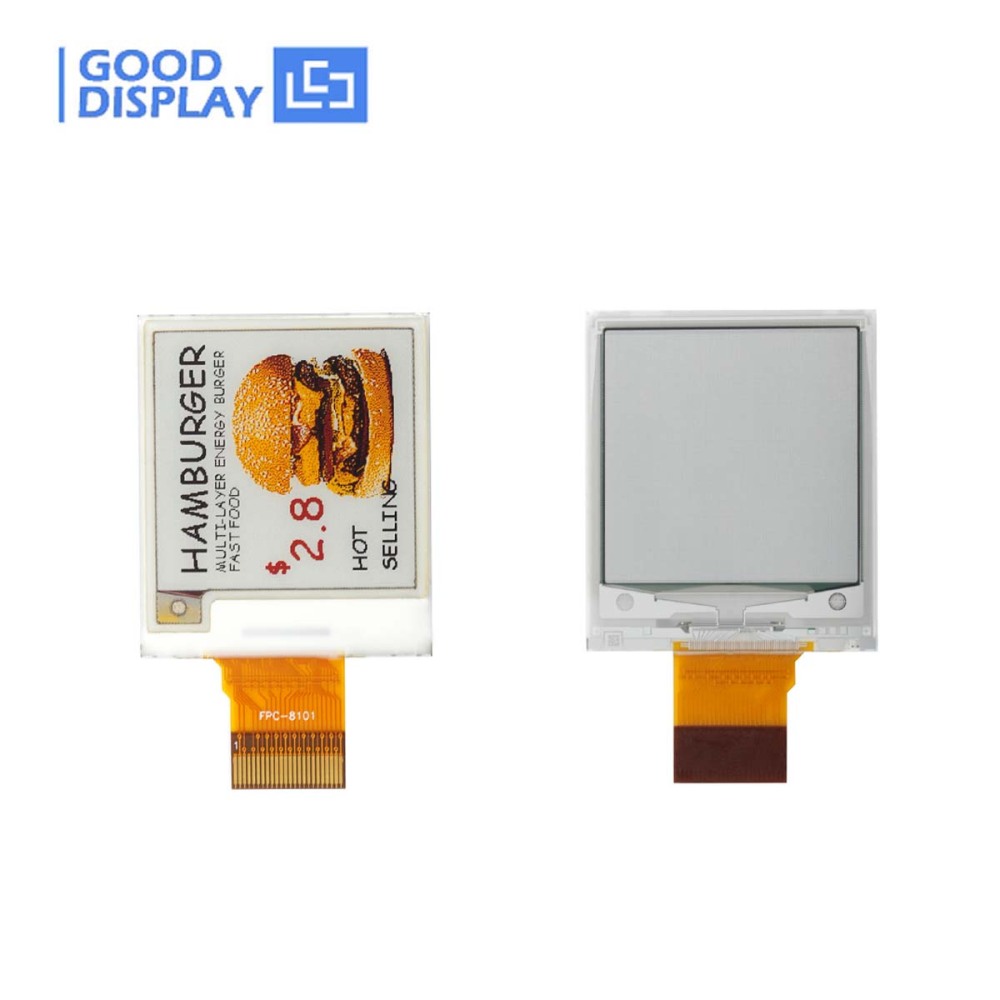

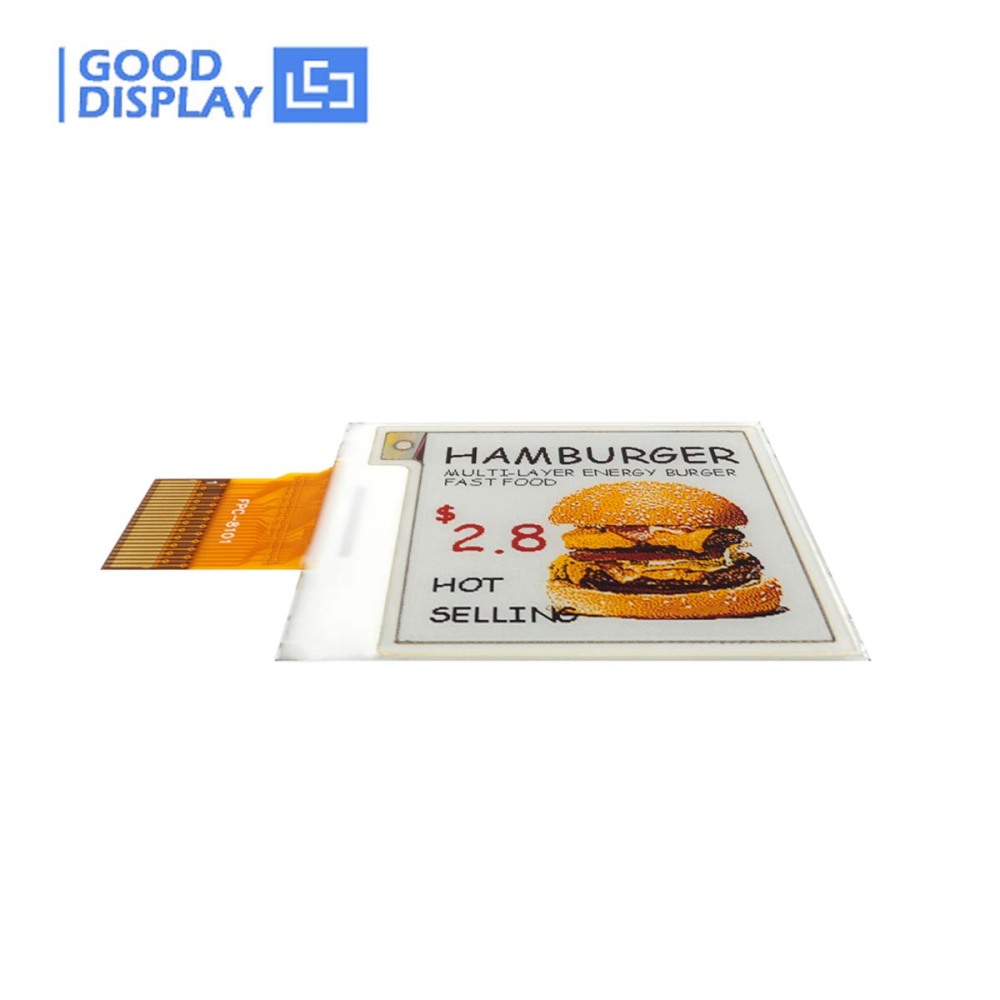

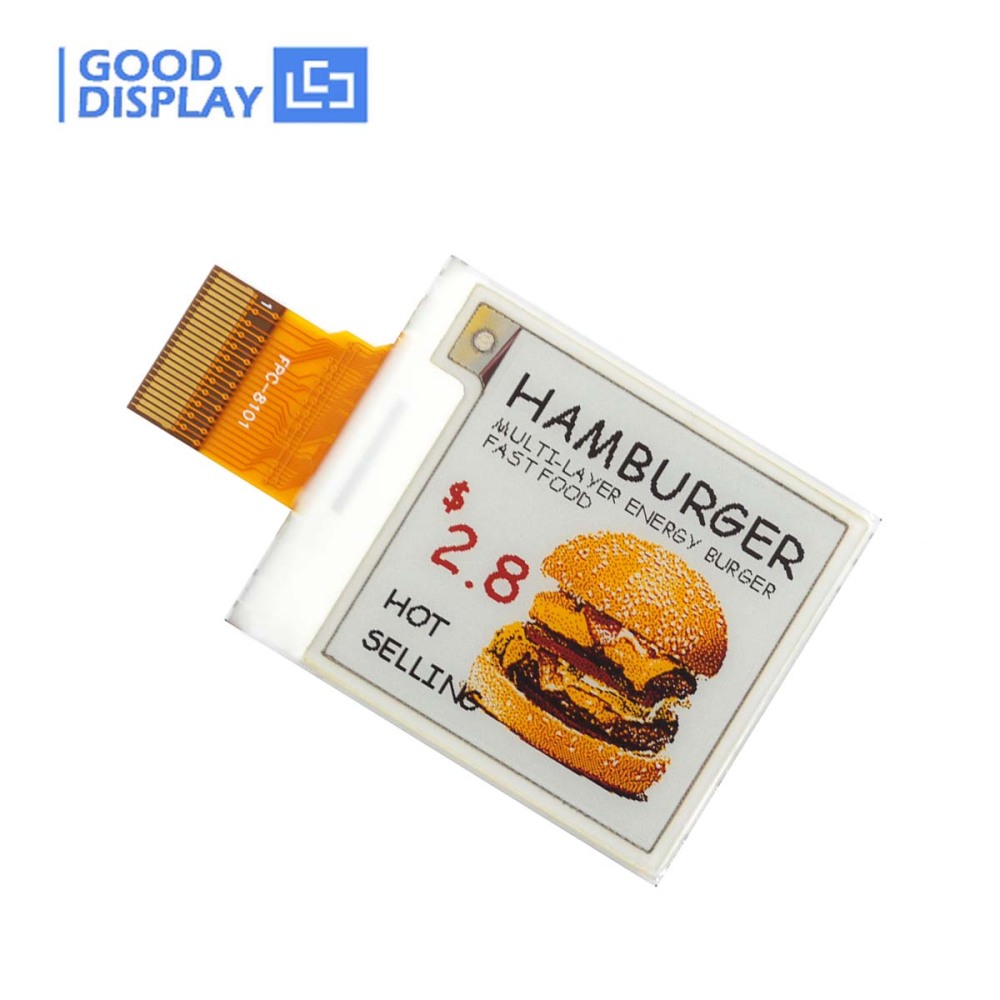

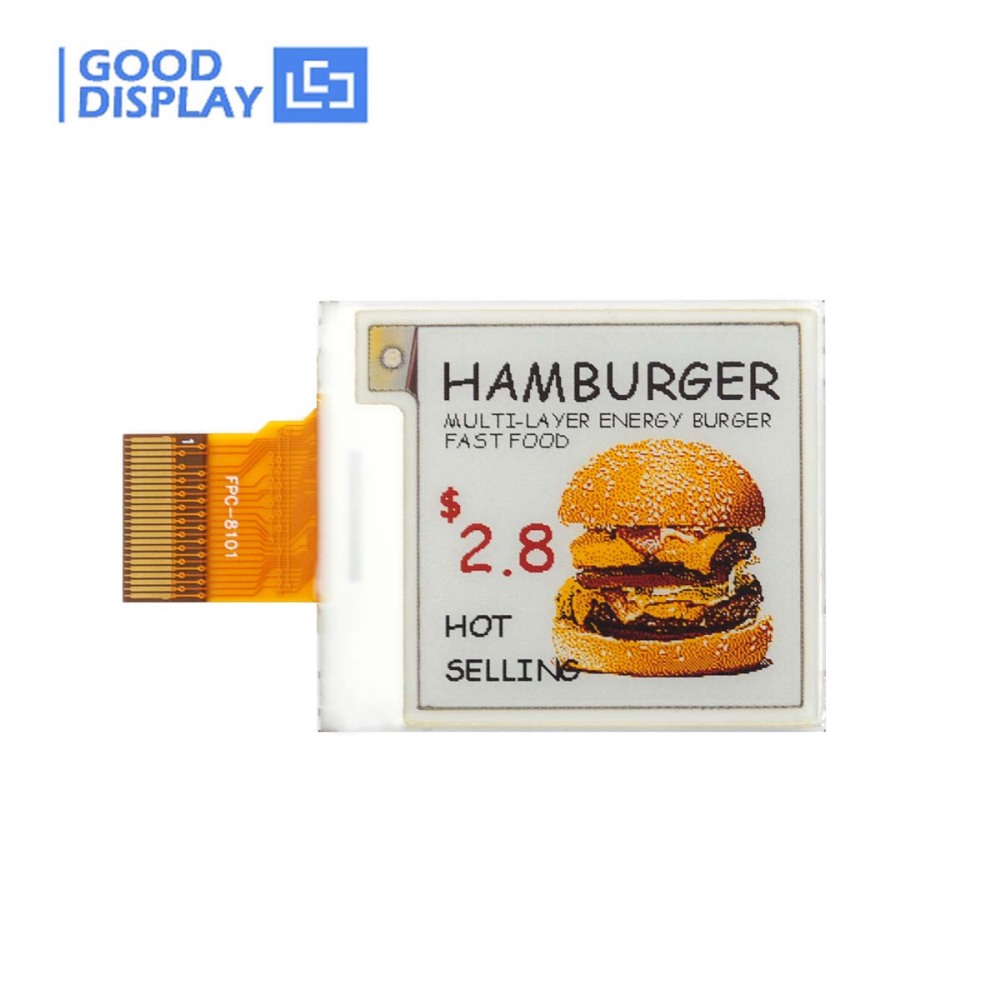

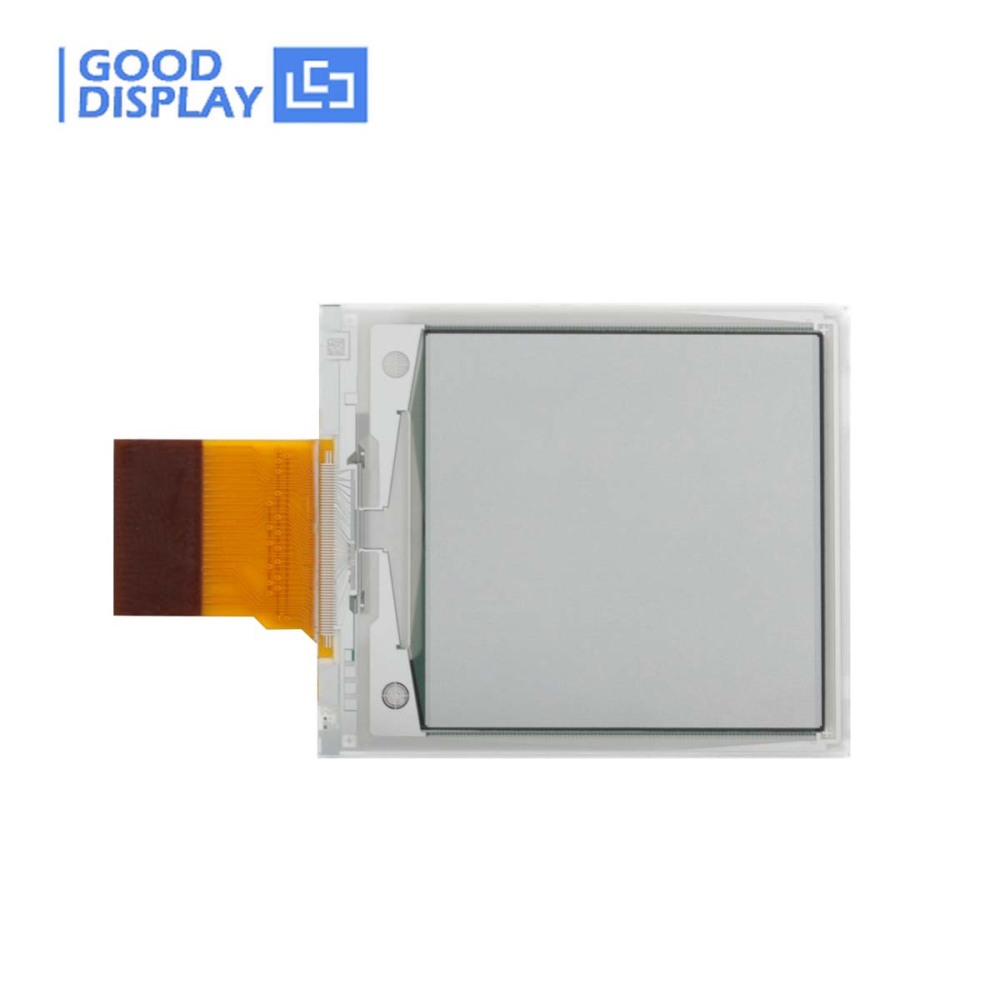

1.54-Inch E-Paper Display Four-Color (Yellow & Red) with High Resolution 200x200

GDEM0154F51H
The 1.54-inch e-paper display delivers vibrant black, white, yellow, and red visuals in a crisp 200x200 resolution, perfect for adding eye-catching details to your projects.
Price:
USD
$6.88
  • product:
    EPD
    EPD with adapter board
    EPD with STM32 Demo Kit

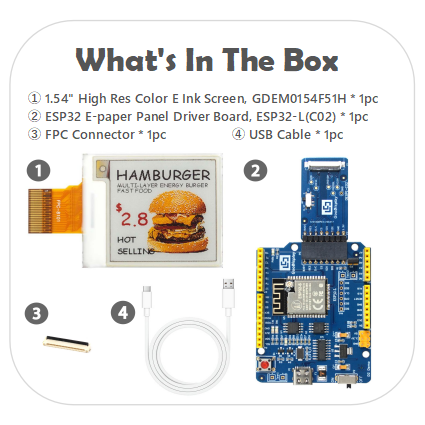

    EPD with ESP32 Demo Kit
    HAT Adapter Board
Quantity:
-
+
(82 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(1)





1.54 inch E-paper four color yellow and red Eink High Resolution 200x200









This is a 1.54 small e-ink display, 200x200 resolution, SPI interface, and the display is capable to display images with 4 colors content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEM0154F51H is perfect for low power devices powered by solar or batteries.
















Special Features








Our product boasts distinctive features that set it apart from the competition








  ●  Four-color Display: Supports black, white, red, and yellow colors.
  ●  Features vibrant colors and the ability to achieve color mixing: This allows for enhanced visual appeal and richer display options, making it suitable for applications that require bright and diverse colors.
  ●  Resolution: Features a resolution of 200x200 pixels.
  ●  Viewing angle: Wide viewing angle exceeding 170 degrees
  ●  Display feature: Bistable display (retains the current content after a power outage)
  ●  Energy conservation: No power consumption when not refreshing the screen.















Technical Details

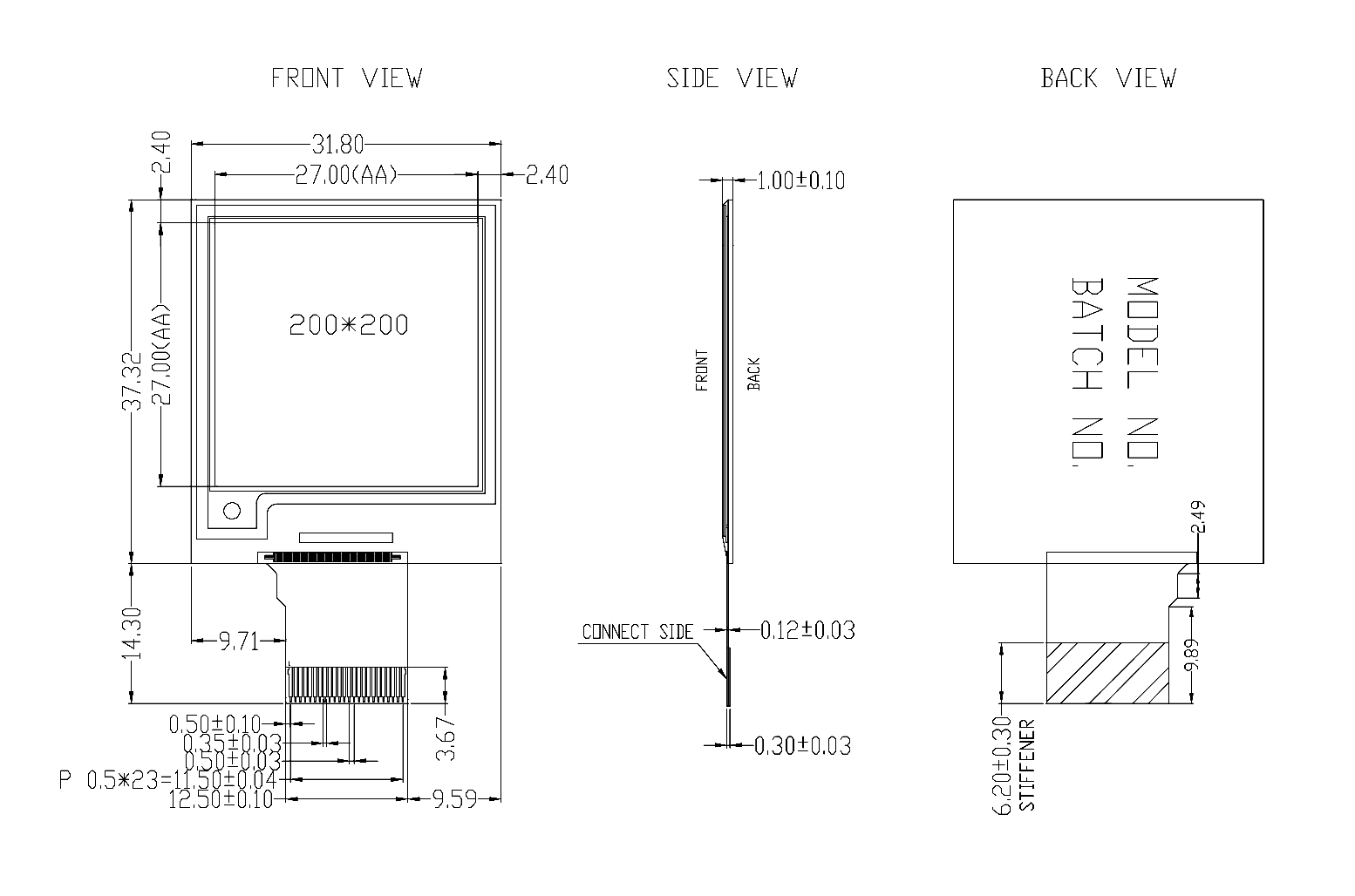

Please refer to the product drawings for detailed dimensions















Product Specifications









Please refer to the product specifications for more details

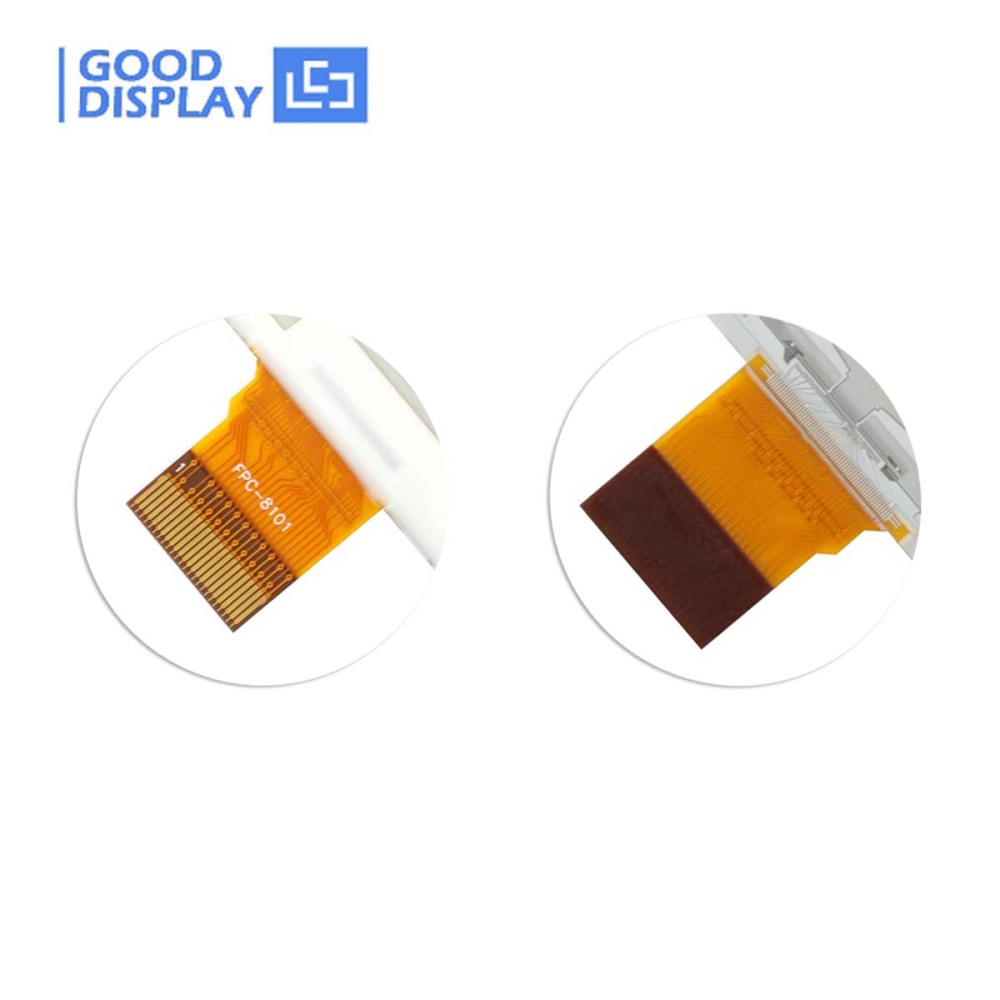

PART NUMBER GDEY0154F51H CONNECTOR 24 Pin FPC
SIZE 1.54 inch TYPE Dot Matrix
IC JD79660 COLOR Black, White, Yellow, Red
RESOLUTION 200x200 INTERFACE SPI
OUTLINE SIZE(mm) 37.32x31.8x1.0 MAX GRAYSCALE 2
ACTIVE SIZE(mm) 27x27 TIME OF REFRESH(S) 20
PIXEL PITCH(mm) 0.135x0.135 POWER CONSUMPTION OF THE REFRESH(mW) 9
OPERATING TEMP. 0℃~40℃ STANDBY POWER CONSUMPTION (mW) 0.0012
STORAGE TEMP. -25℃~70℃











Matching Driver Board



To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

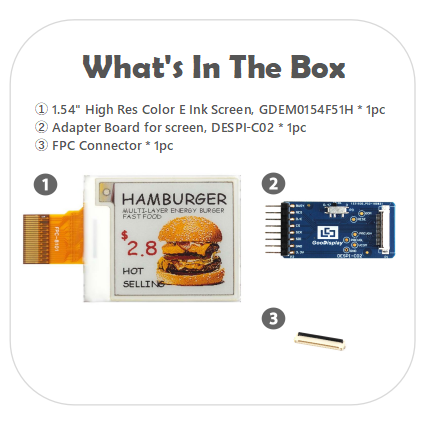

a. DESPI-C02 (E-ink Display adapter Board)

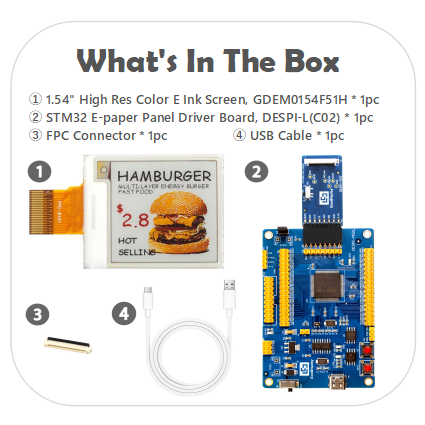

b. DESPI-L(C02) (STM32 Demo Kit)

c. DEArduino-L(C02) (Arduino Platform Demo Kit)



d. ESP8266-L(C02) (ESP8266 Demo Kit)

e. ESP32-L(C02) (ESP32 Demo Kit)










Every day is Earth Day





You don't need to be an environmental scientist to make sustainable choices.
At Good Display, we passionately integrate sustainability into the production of e-paper.













Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.

Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.









Files and Download

Click on the subheadings below to download


  ● GDEY0154F51H Specification ● GDEY0154F51H STM32 Sample Code
  ● JD79660A Driver IC Datasheet ● GDEY0154F51H-Arduino Sample Code
  ● Image2LCD Software Bitmap Conversion Instructions V1.0 new ● GDEY0154F51H ESP8266 Sample Code
  ● Why can't I download the files(updated)? ● GDEY0154F51H ESP32 Sample Code
