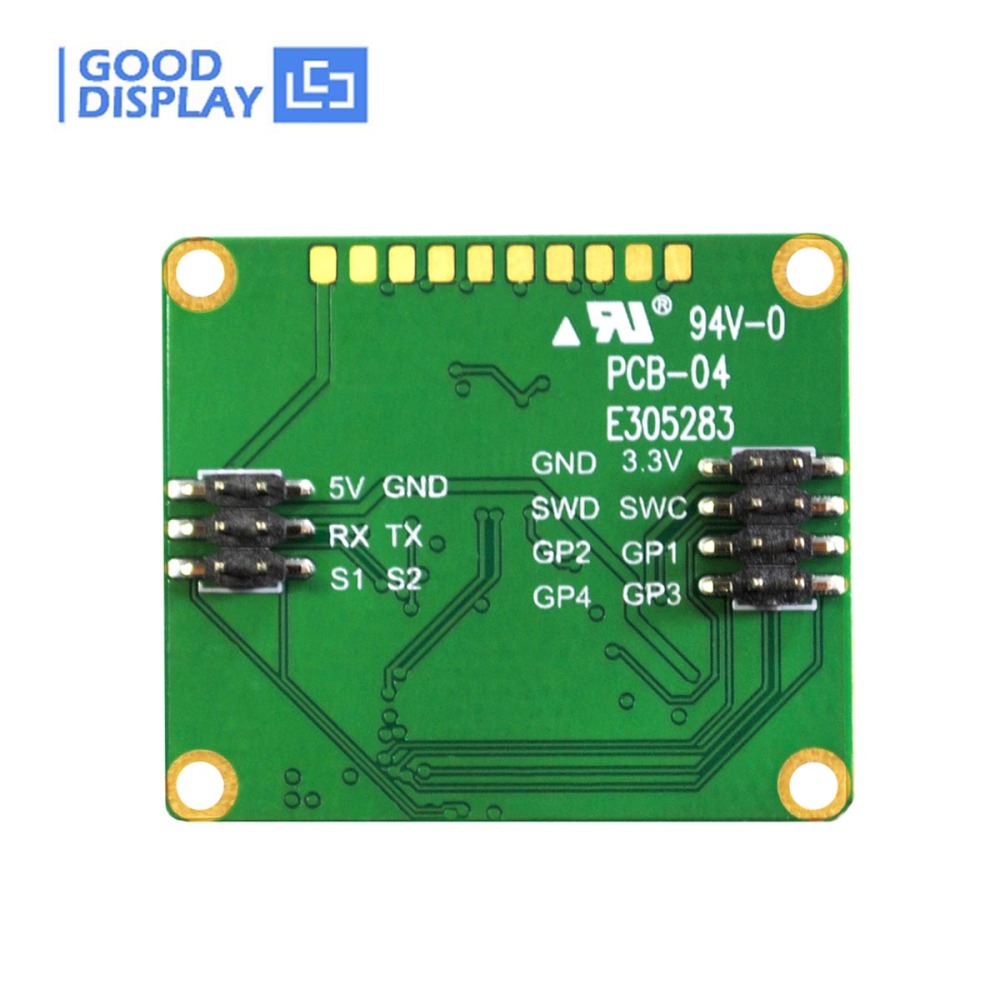

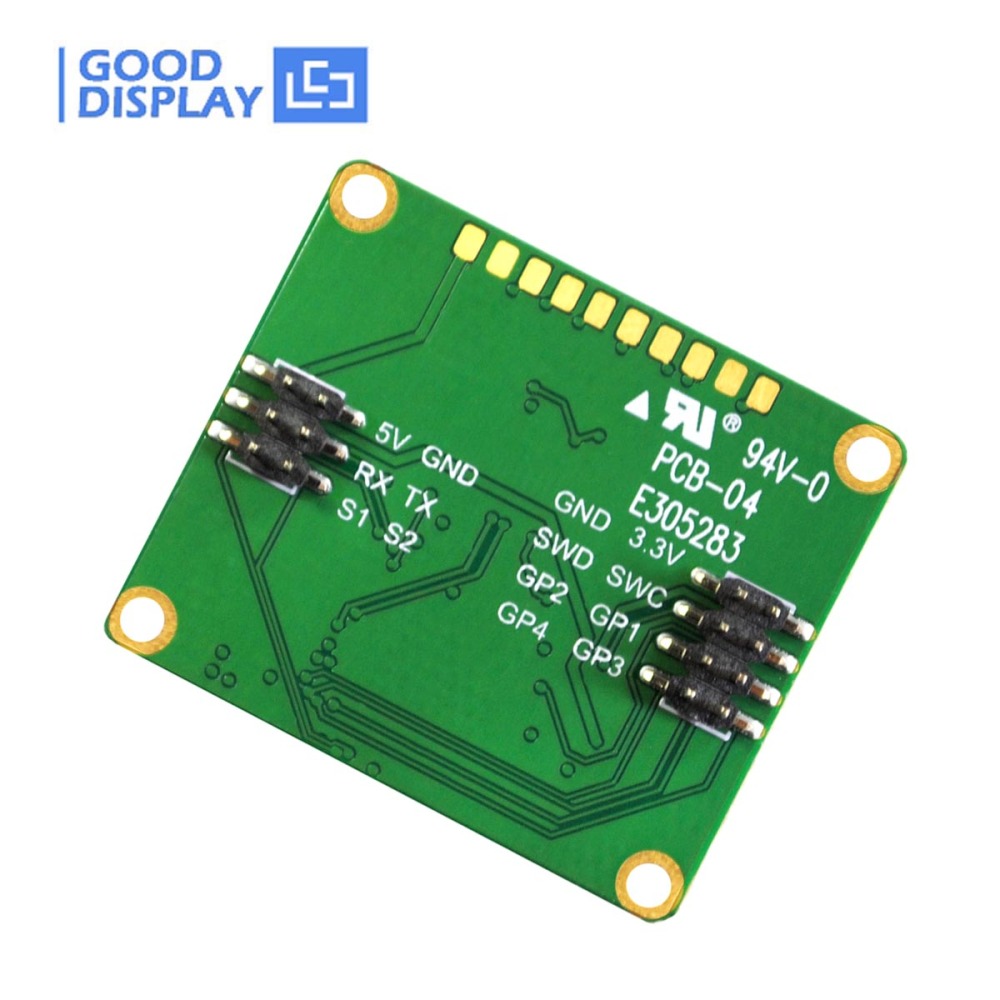

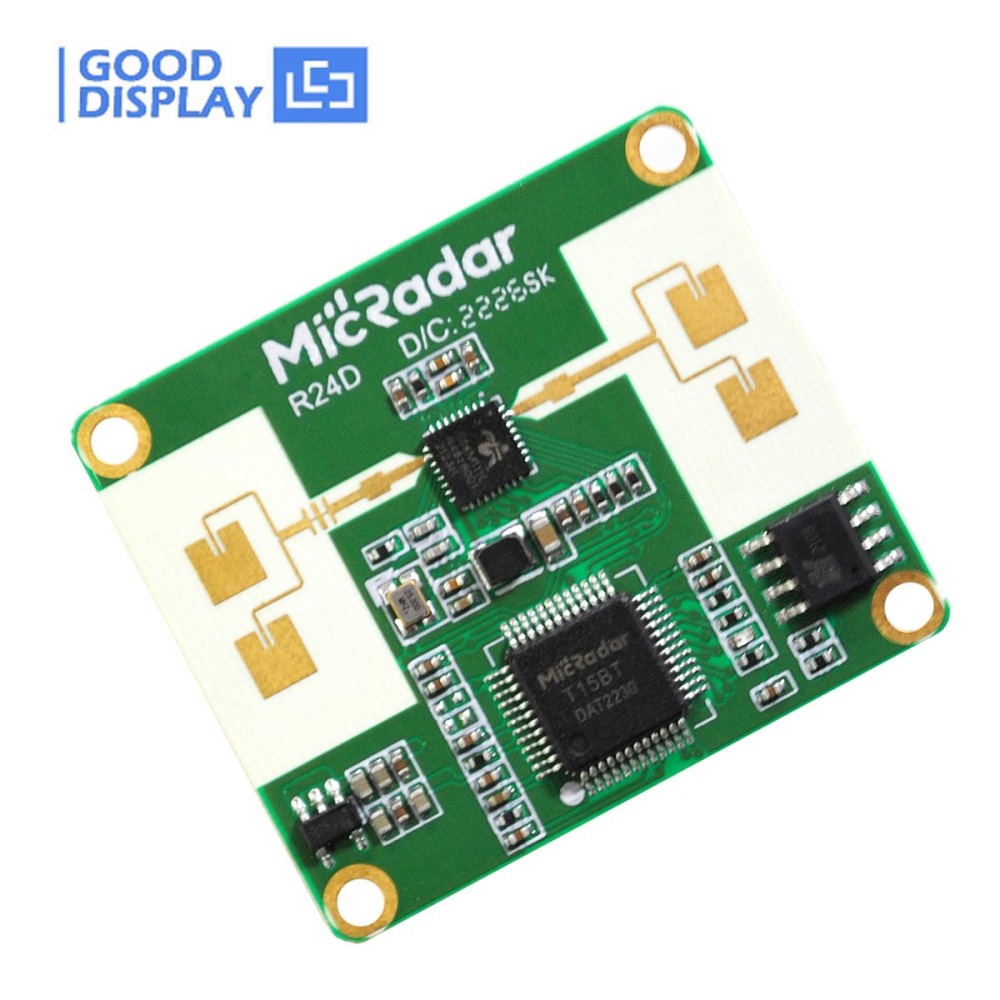

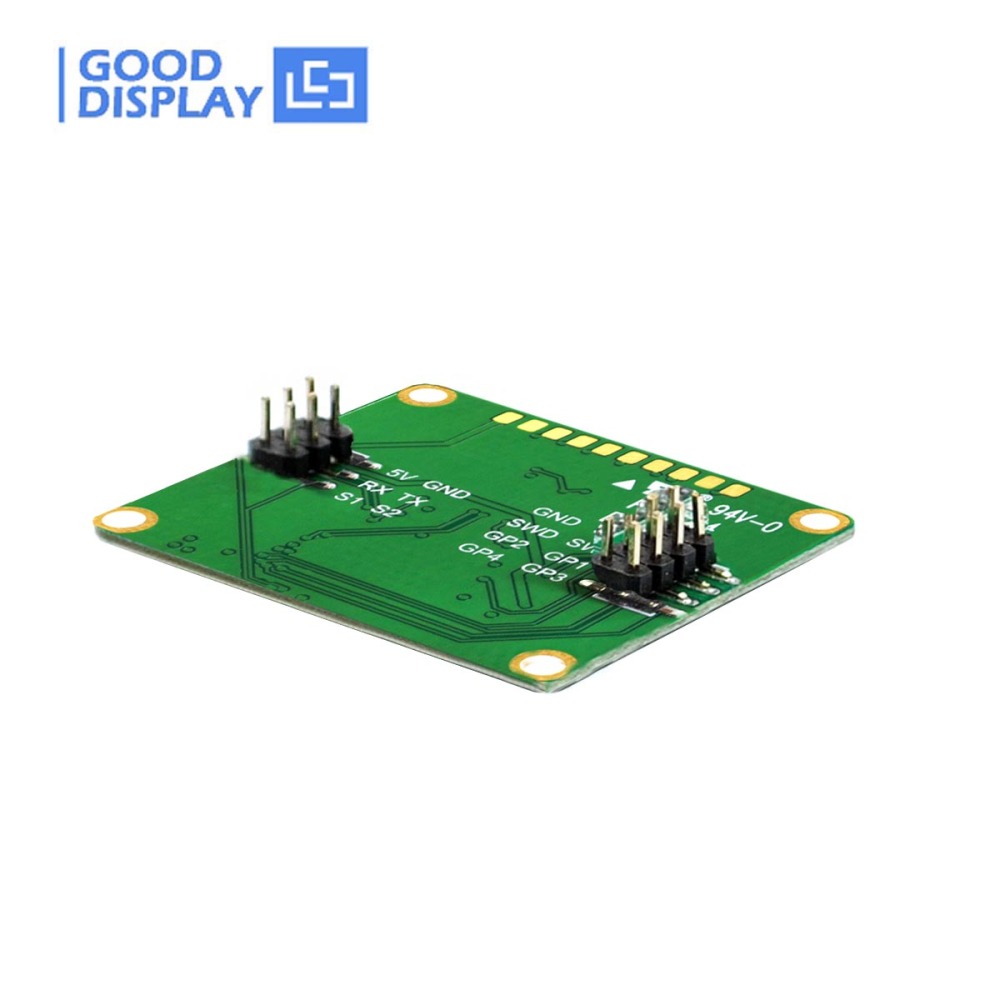

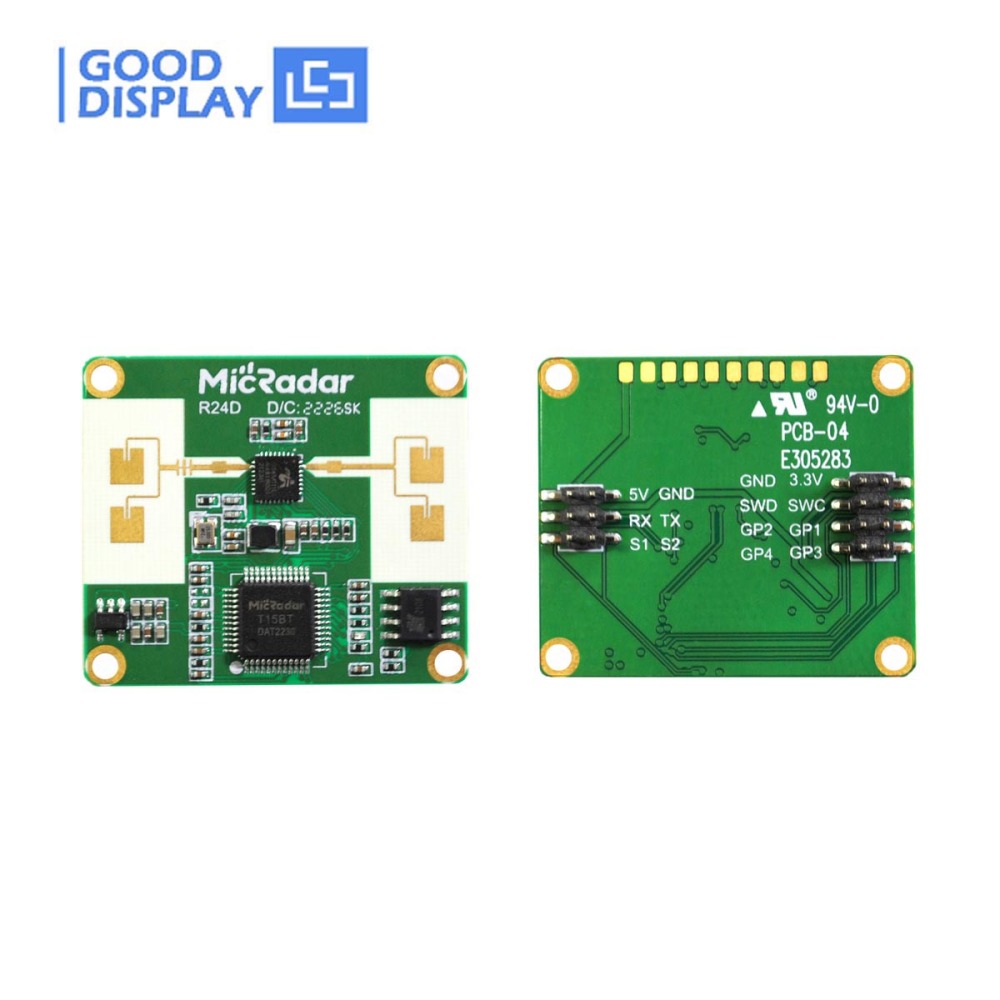

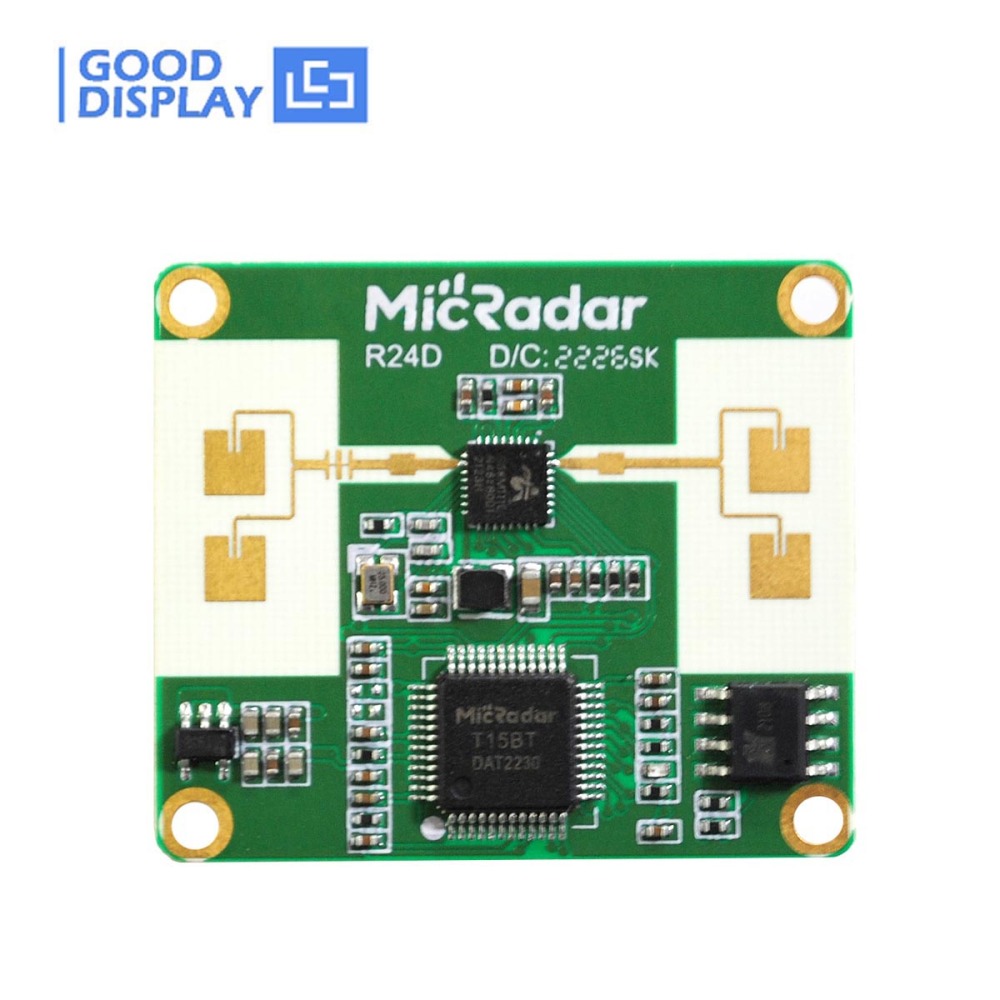

Human Static Presence Module Lite FMCW 24GHz mmWave Sensor, IR24DVD1A

The IR24DVD1A radar is based on the frequency-modulated continuous wave system to realize human biological existence perception and human motion perception, continuously record human existence, dwell time, and can notify the gateway through wireless signa
Price:
USD
$7.00
Quantity:
-
+
(4 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • How to choose
  • Reviews

☆ INTRODUCTION




The IR24DVD1A radar module is based on the frequency-modulated continuous wave system to realize human biological existence perception and human motion perception, continuously record human existence, dwell time, and can notify the gateway through wireless signals to achieve scene linkage. This product is installed on the top of the room. Human function detection is not affected by factors such as temperature, humidity, noise airflow, dust, light, and complete stillness of the human body. It can be tested with our radar test board(DERADAR-24G), or our converter adapter module(iflabel Link)

It can detect human presence and absence, the motion and the direction of motion, object speed, and detected distance. Meanwhile, it provides the open custom function by offering adjustable underlying parameters for you to adjust detected range, sensing sensitivity, trigger threshold, valid time for states changing, and installation environment.

Relevant manual about this product on Library


 THE ABOVE PRICE INCLUDE




1)  Human Static Presence Module Lite FMCW 24GHz mmWave Sensor * 1pc


 UPPER COMPUTER SOFTWARE



There is an upper computer software related to this radar, published for real-time acquisition and visualization of radar data, that displays sensing parameters through real-time waveform images which makes data monitoring more clear. Meanwhile, it offers a series of actionable items generated by serial command protocols. Both of them help to increase development efficiency.



 FEATURE




●  Stationary human detection
●  Vital Signs Detection
●  24GHz mmWave radar sensor
●  Based on millimeter wave radar technology, realize the function of personnel perception in the radar scanning area;
●  Realize the synchronous perception function of moving personnel and stationary personnel;
●  Motion sensing maximum distance: 9 meters
●  The maximum distance of human static perception: 5 meters
●  Antenna beamwidth: horizontal 90°/vertical 60° fan beam
●  With scene recognition ability, it can identify people/unmanned people and people's activity status, and output body motion range
●  Not affected by temperature, humidity, noise, airflow, dust, light, etc.
●  The power of the radar module is less than 0.5 watts and requires long-term power supply work;
●  Unmanned to human detection time: within 0.5 seconds
●  Time to detect (report) from someone to no one: Automatic detection based on algorithm, typical value is 1 minute



 MAIN FUNCTION




Function points State change time/function explanation
DP1: Someone/Nobody No one to someone, report within 0.5s
From someone to no one, output stateless within 1 minute
DP 2 : Sensitivity settings 1 – 10 stops In the default scene mode, it can support 10 gear adjustments
DP 3 : Scene mode (bed, bathroom, hotel,
bedroom, office, default mode)
Adapt to different scenarios according to the size of the area
DP 4 : No Time Setting After the environment is unoccupied, output the unmanned status information according to the set time.


 WHAT'S FMCW'S ADVANTAGE




Based on the principle of millimeter wave radar and FMCW ranging technology, the radar only needs to calculate the high-frequency continuous waves emitted to and received from the objects, without any privacy risks. Designed with a low power output, the radar maintains health-friendly working status when it is observed. Thanks to its high immunity against interferences, the output data is less vulnerable to environmental influences like temperature, humidity, noise, airflow, dust, light, etc.



☆ APPLICATION




●  Whole house intelligence
●  Smart home appliances (TV, Yuba, security, etc.)
●  Office energy saving (air conditioning, lighting)
●  Sleep monitoring (sleep curve)
●  Home security
●  IPC trigger
