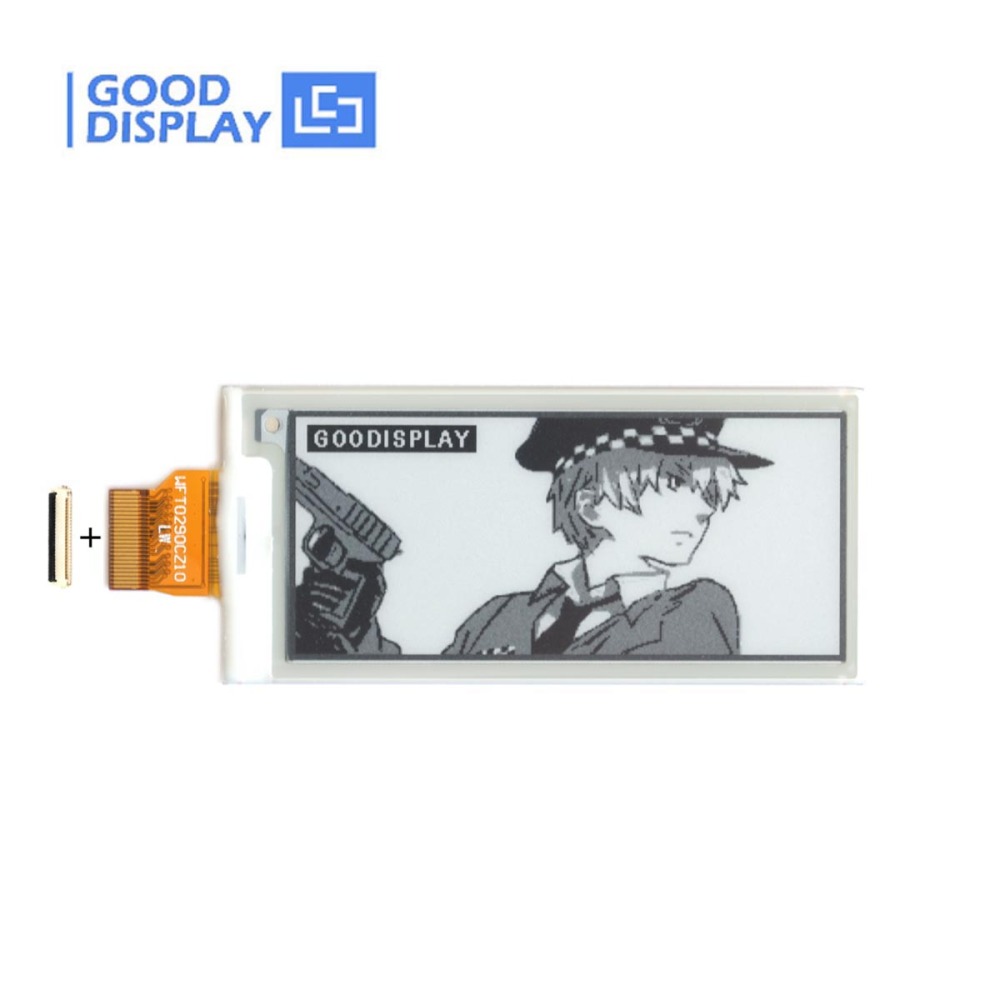

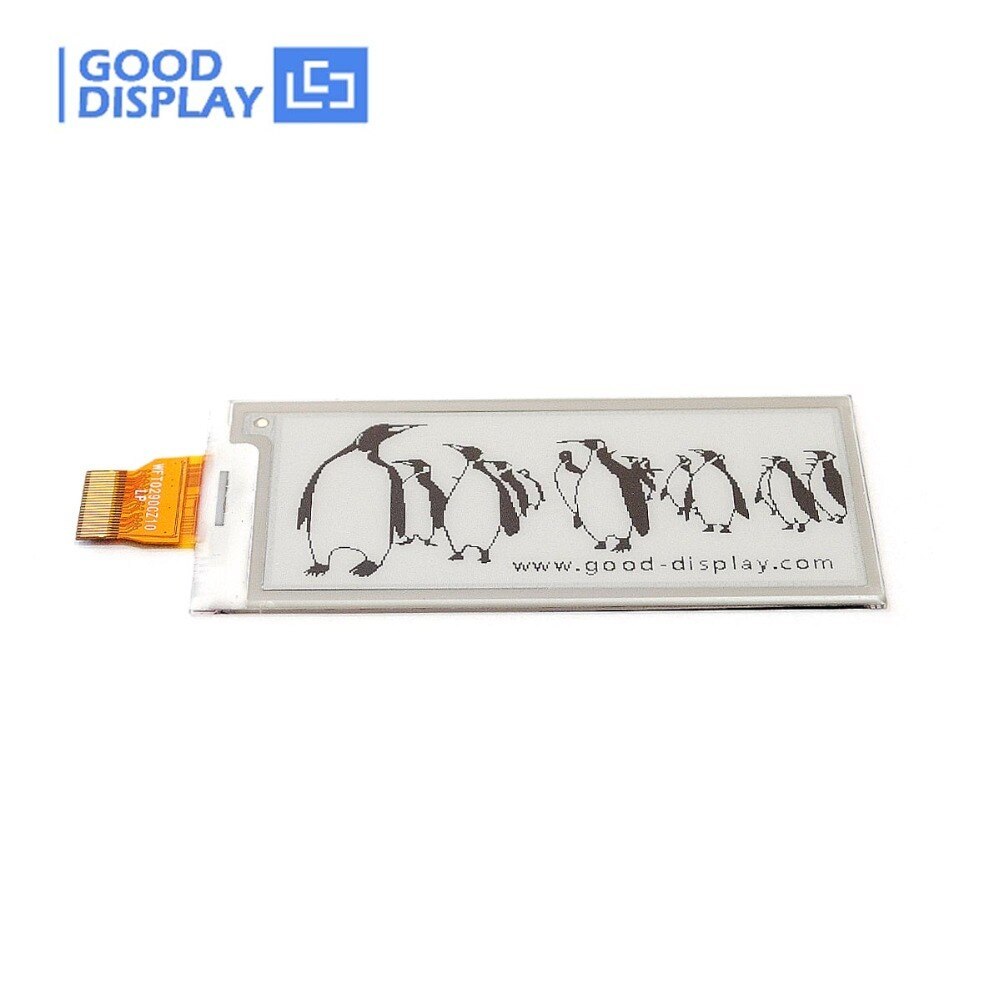

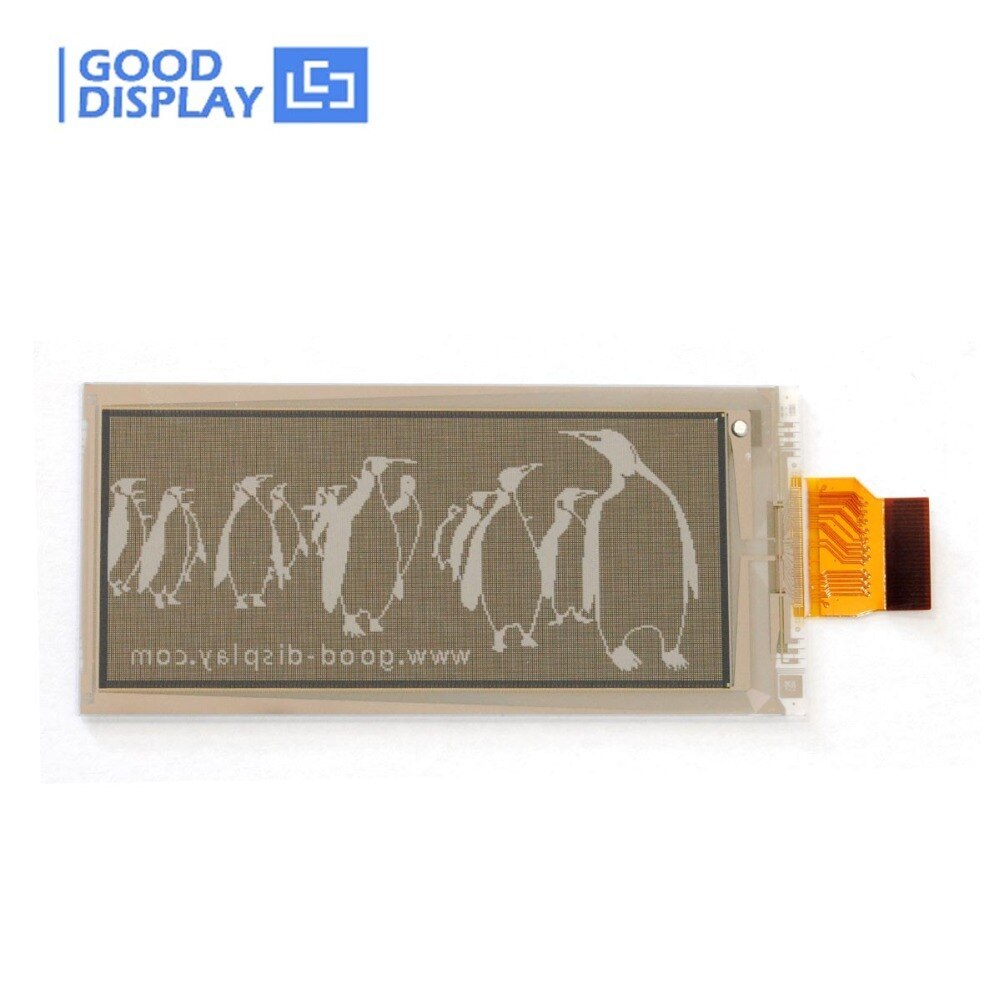

2.9 inch e-paper SPI Support for partial refresh 4 grayscale e-ink module screen GDEW029T5D

GDEW029T5D
The 2.9inch e-paper is a TFT active matrix electrophoretic display with an interface and reference system design. 2.9'' epaper with 296 × 128 pixels, 4 grayscale, and has a white / black full display. Support partial refresh.
Price:
USD
$8.50
  • 规格:
    EPD
    With adapter board
    With demo kit
Quantity:
-
+
(147 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews(3)

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




This is a 2.9 inch e-paper with 296x128 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This 2.9 inch e-paper GDEW029T5D is perfect for low power devices powered by solar or batteries.


We provide the E-Ink Adapter Board for you to connect the E-paper Display.

We could provide front light, touch screen and other accessories for you.


Relevant manual about this 2.9 inch e-paper on Library or you could go to our official website (www.good-display.com), contact us please.
Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html











 FEATURE




●  Support 4 Grayscale

●  Black and white monochrome is easy to read.

●  Versatile. Use in portrait or landscape format.

●  Bistable. (Will continue to display with no power source)

●  Support partial refresh. The partial refresh rate is 0.3s/frame

●  I2C Signal Master Interface to read external temperature sensor.

●  Development platform available STM32 / ArduinoRaspberry Pi ESP8266 / ESP32








☆ THE ABOVE PRICE INCLUDE



1) 2.9 inch e-paper SPI Support for partial refresh 4 grayscale e-ink module screen * 1pc
2) FPC Connector * 1pc








 MAIN PARAMETERS




PART NUMBER

GDEW029T5D

SIZE

2.9 inch

TYPE

Dot Matrix

IC

UC8151D

RESOLUTION

296x128

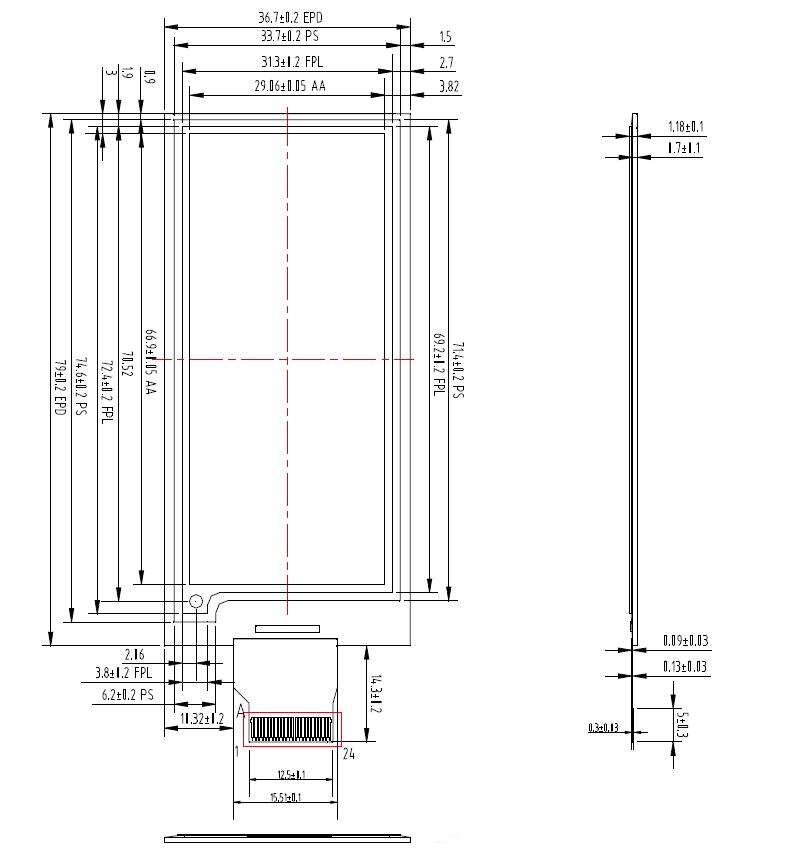

OUTLINE SIZE(mm)

79x36.7x1.18

ACTIVE SIZE(mm)

66.9x29.06

PIXEL PITCH(mm)

0.227x0.226

OPERATING TEMP.

0℃~50℃

STORAGE TEMP.

-25℃~70℃

CONNECTOR

24 Pin FPC

MAX GRAYSCALE

4

COLOR

Black, White

INTERFACE

SPI

FULL REFRESH(s)

3

PARTIAL REFRESH RATE(s)

0.3

POWER CONSUMPTION OF THE REFRESH(mW)

26.4

STANDBY POWER CONSUMPTION (mW)

0.0165











☆ 2.9 INCH E-PAPER DISPLAY




Part Number

Color

IC

Features

Refresh Time
GDEY029T94 B/W SSD1680 Partial refresh, 4 Grayscale 3s

GDEW029T5D

B/W

UC8151D Fast refresh, Partial refresh, 4 Grayscale

0.82s(fast refresh)

GDEY029Z94 B/W/R SSD1680A Red 12s
GDEH029Z13 B/W/R UC8151D Red 15s
GDEW029Z13 B/W/R UC8151D Red 12s










☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com




PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI

GDEW0102I4FC

1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -10℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEQ0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -10℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI
