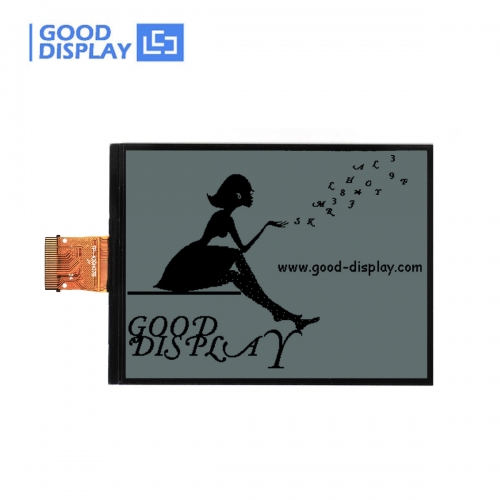

3.7 inch 416x240 e-paper black and white SPI fast refresh electronic eink display screen ESL, GDEY037T03

This is a 3.7 inch e-ink screen with 416x240 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 1s fast refresh.
Sold:19
Have a question?
Price:
USD
$13.57
  • Product:
    EPD
    EPD with adapter board
    EPD with STM32 Demo Kit
    EPD with ESP32 Demo Kit
Quantity:
-
+
(398 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Selection Guide
  • Reviews



☆ INTRODUCTION



This is a 3.7 inch e-ink screen with 416x240 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 3s full screen update, 1s screen fast update. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY037T03 is perfect for low power devices powered by solar or batteries.



We provide the E-Ink Adapter Board for you to connect the E-paper Display.

We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.



☆ THE ABOVE PRICE INCLUDE

Package A +
  a. 3.7 inch 416x240 e-paper black and white SPI fast refresh electronic eink display screen ESL, GDEY037T03 * 1pc   b. FPC Connector * 1pc

Package B + +

  a. 3.7 inch 416x240 e-paper black and white SPI fast refresh electronic eink display screen ESL, GDEY037T03 * 1pc   b. FPC Connector * 1pc   c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc
Package C + + +
a. 3.7 inch 416x240 e-paper black and white SPI fast refresh electronic eink display screen ESL, GDEY037T03 * 2pcs   b. FPC Connector * 2pcs   c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02) * 1pc   d. USB Cable * 1pc
Package D + + +
a. 3.7 inch 416x240 e-paper black and white SPI fast refresh electronic eink display screen ESL, GDEY037T03 * 2pcs   b. FPC Connector * 2pcs   c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02) * 1pc   d. USB Cable * 1pc




☆ MAIN PARAMETERS



PART NUMBER

GDEY037T03

SIZE

3.7 inch

 CONNECTOR 24 Pin FPC

TYPE

Dot Matrix

 MAX GRAYSCALE 4

IC

UC8253

 COLOR Black,White

RESOLUTION

416x240

 INTERFACE SPI

OUTLINE SIZE(mm)

92.99x53x1.0

 FULL REFRESH(s) 3

ACTIVE SIZE(mm)

81.54x47.04

 FAST REFRESH(s) 1

PIXEL PITCH(mm)

0.196x0.196

 POWER CONSUMPTION OF THE REFRESH(mW) 18

OPERATING TEMP.

0℃~50℃

 STANDBY POWER CONSUMPTION (mW) 0.003

STORAGE TEMP.

-25℃~70℃






☆ FEATURE


●  Support 1s Fast Refresh

●  Black and white monochrome is easy to read.

●  Versatile. Use in portrait or landscape format.

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor.

● Development platform available STM32 / Arduino / ESP8266 / ESP32




☆ DRAWING





☆ MATCHED DEVELOPMENT KIT



● DESPI-C02 (E-ink Display HAT)

● DESPI-L(C02) (STM32 Platform/Universal)


● DEArduino-L(C02) (Arduino Platform)


● ESP8266-L(C02) (WiFi)


● ESP32-L(C02) (WiFi / Bluetooth)



☆ RELATED INFORMATION DOWNLOAD


● GDEY037T03 Specification

● IC Driver UC8253 Datasheet

● Picture Production and Bitmap Convert for GDEY037T03

● GDEY037T03 STM32 Sample Code

● GDEY037T03 ESP32 Sample Code

● GDEY037T03 Arduino Sample Code

● GDEY037T03 ESP8266 Sample Code



☆ WE ALSO SUGGEST...



3.7 inch touch screen, for 3.7 inch e-paper display, GDEY037T03-T02

3.7'' Color E ink E paper Display UC8253 E-ink Display, GDEY037Z03

3.71 inch e-paper display black and white 4 Grayscale e-ink screen module GDEW0371W7

4.2 inch e-paper display fast update Morochrome SPI e-ink for digital price tags, GDEY042T81


☆ ABOUT US


Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0097T50 0.97'' BW 2 184x88 22.264x10.648 4 0℃~50℃ √   SPI
GDEW0097C50 0.97'' BWY 2 184x88 22.264x10.648 22 0℃~40℃     SPI
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √ √ SPI

GDEW0102I4FC

1.02''

BW

2

128x80

21.76x14

3

0℃~50℃

√

√

SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEY0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃ √   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ √   SPI
GDEY0154Z90 1.54'' BWR 2 200x200 27x27 16 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ √ √ SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √ √ SPI
GDEY0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃ √   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃ √   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃ √   SPI
GDEY0266Z90 2.66'' BWR 2 296x152 60.088x30.704 12 0℃~40℃     SPI
GDEY027T91 2.7'' BW 4 264x176 57.29x38.19 3 0℃~50℃ √   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃ √   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √ √ SPI
GDEQ031T10 3.1'' BW 2 320x240 62.72x47.04 3 0℃~50℃     SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEY037T03 3.71'' BW 2 416x240 81.54x47.04 3 0℃~50℃     SPI
