5.79 inch E-paper Display STM32 Epaper board module, GDEY0579Z93+DESPI-L(C579)

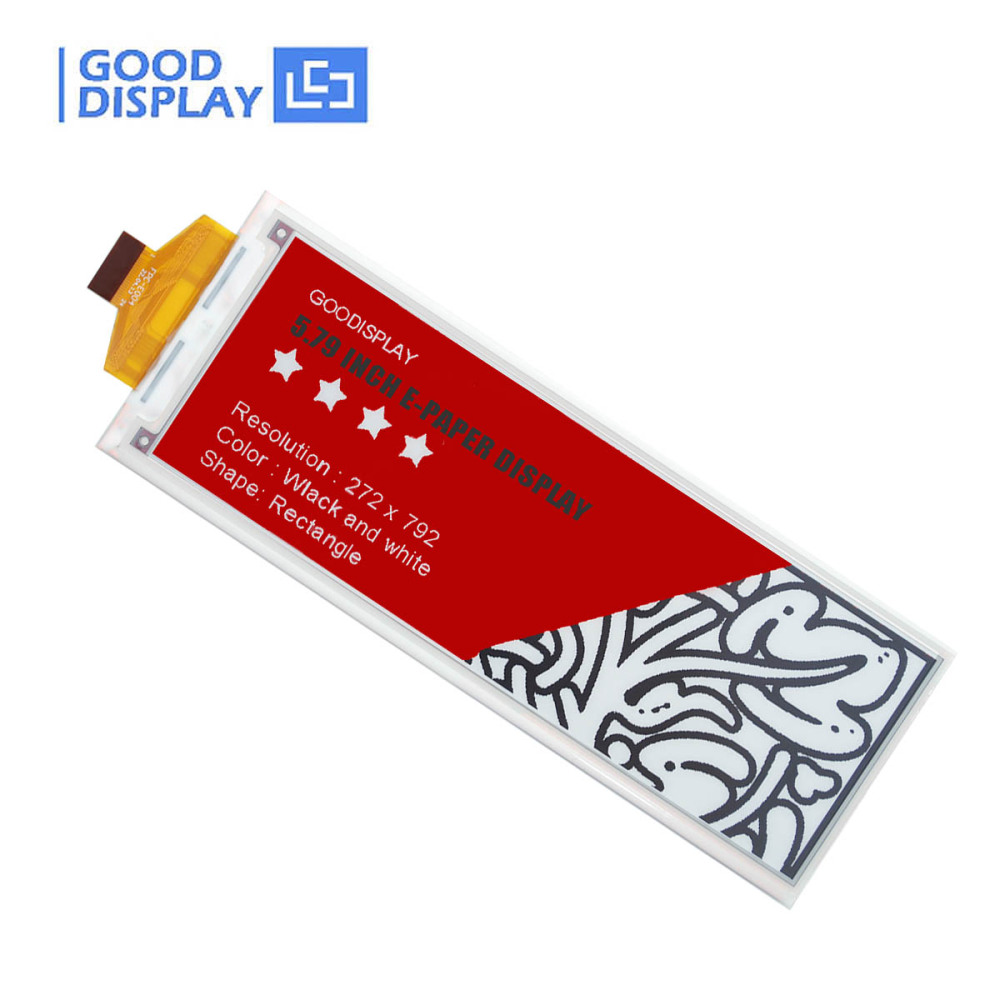

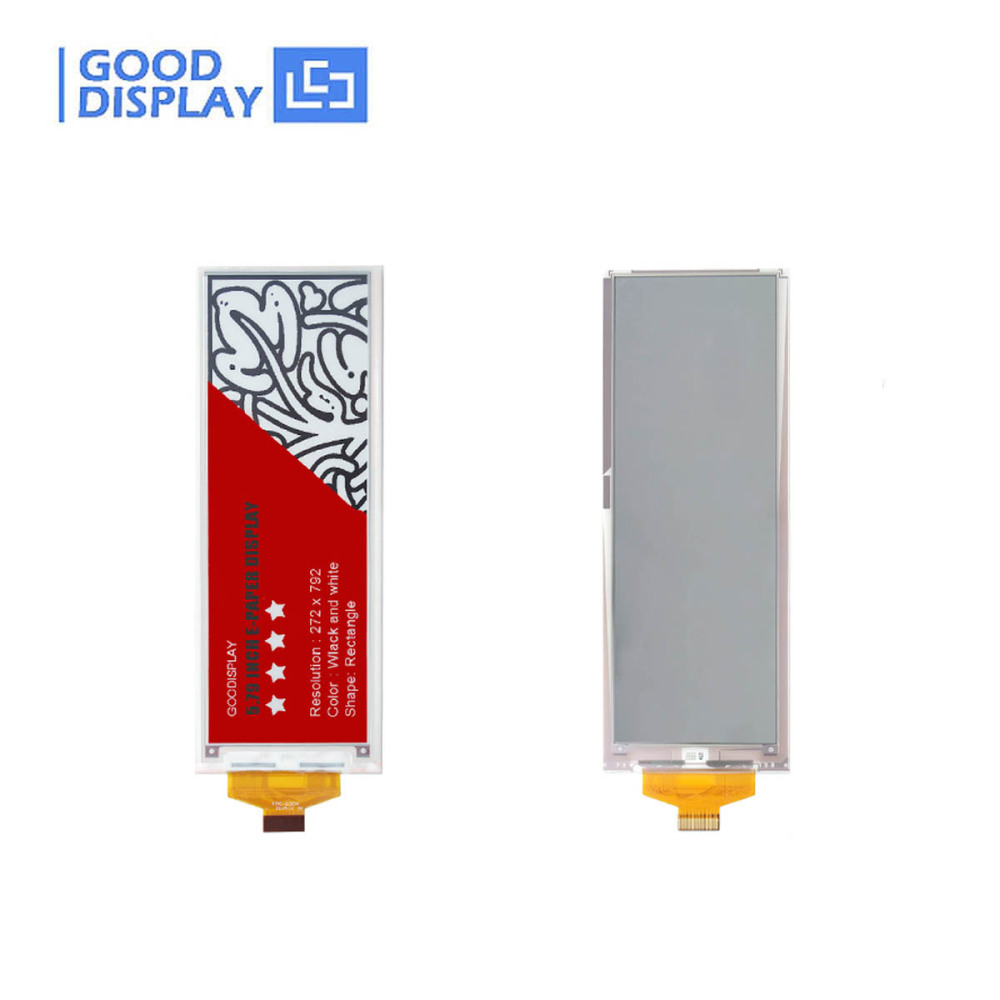

This is a 5.79 inch red e-ink display color electronic paper strip screen with 792x272 resolution, SPI interface, and the electronic paper screen is capable to display images with black, white and red content.
Price:
USD
$54.99
Quantity:
-
+
(10 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Reviews



☆ INTRODUCTION




This is a set of epaper module consist of STM32 Board DESPI-L(C579) and 5.79 inch red e-ink display color electronic paper strip screen GDEY0579Z93, 792x272 resolution, SPI interface, and the electronic paper screen is capable to display images with black, white and red content. Once these e-ink display modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. Your image holds indefinitely without power – put up your image, then shut down the power.

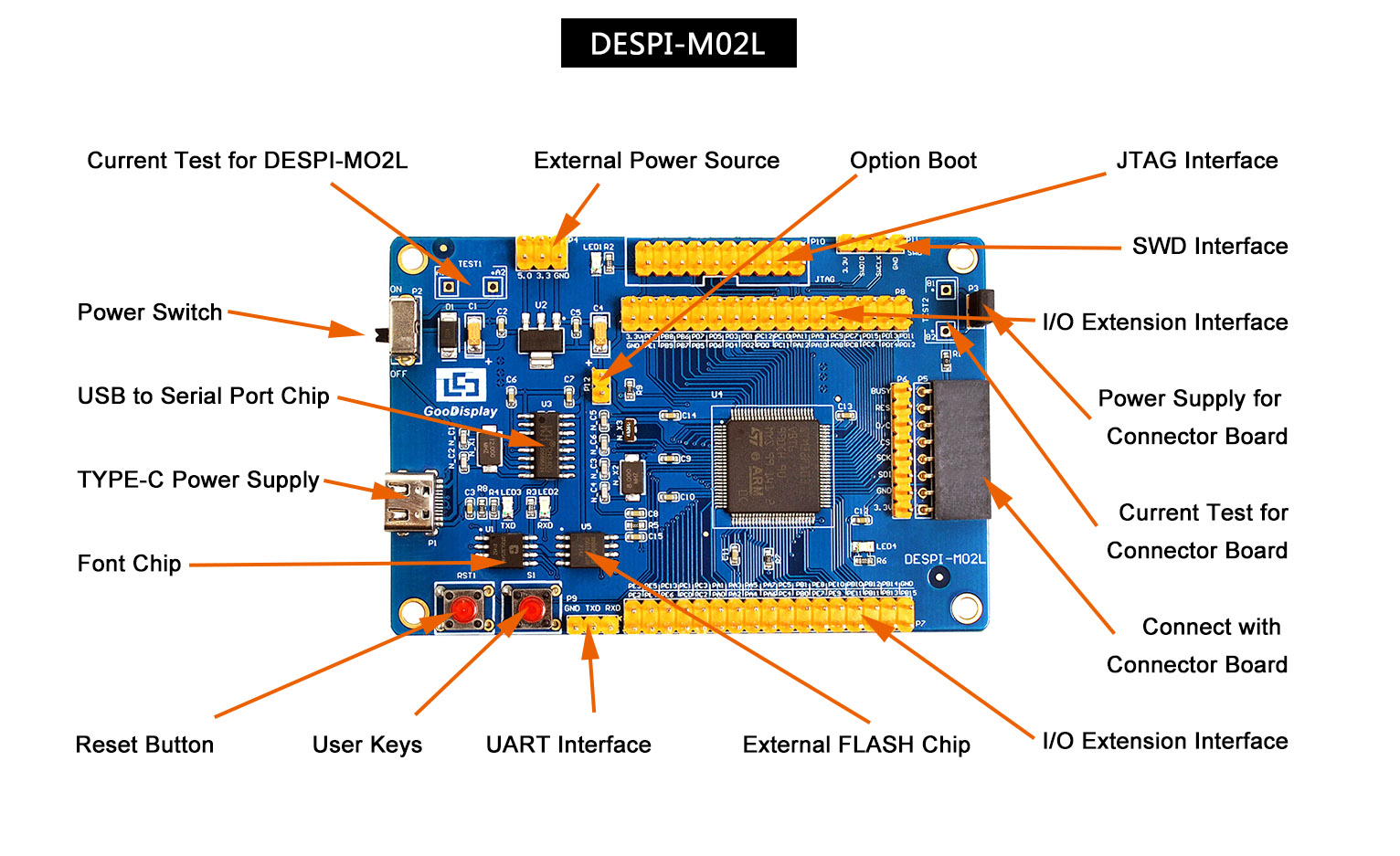

DESPI-L(C579) evaluation kit is used to help users develop Good Display's 5.79 inch e-paper display projects with provided source code to create more differentiated solutions. It is added the functions of USB serial port and LED indicator light, Reset button, user-defined button, font chip, Flash chip and etc. It also supports being updated via computer software directly.

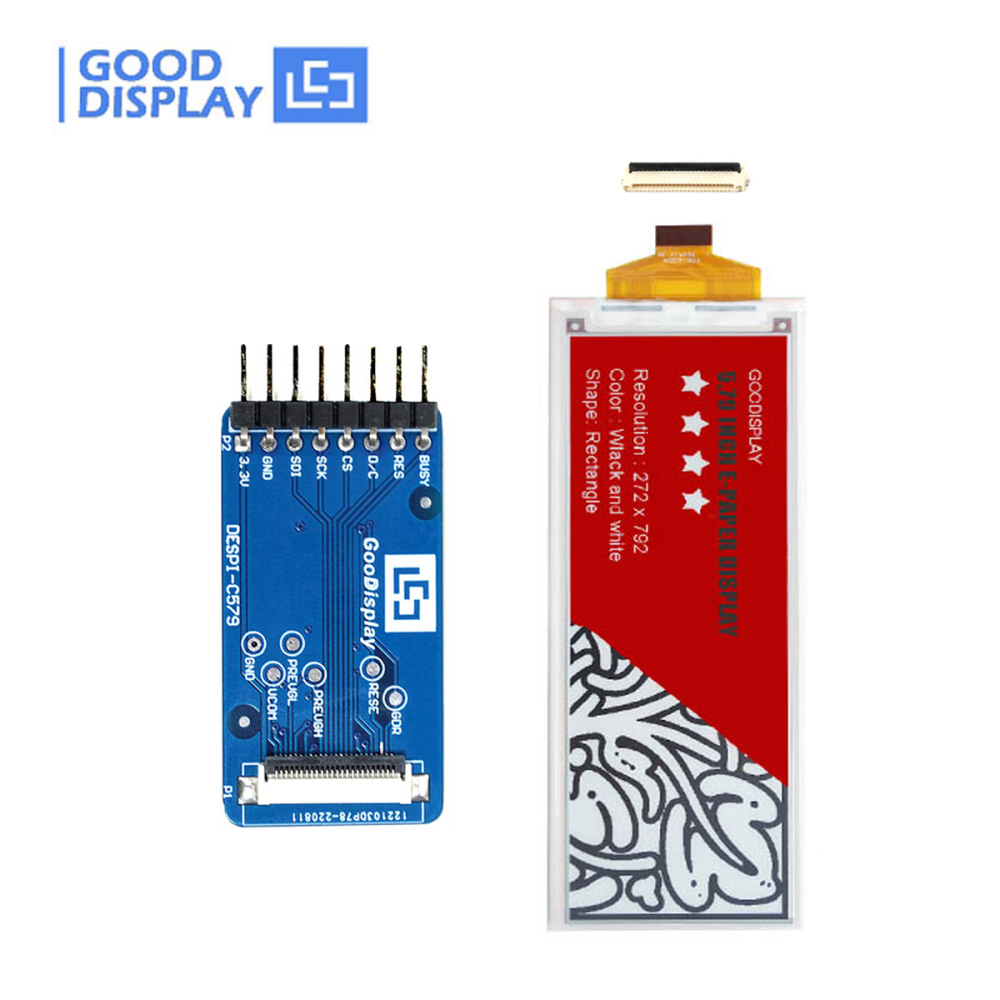

DESPI-L(C579) evaluation kit consists of motherboard DESPI-M02L and connector board
DESPI-C579.


You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array

Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

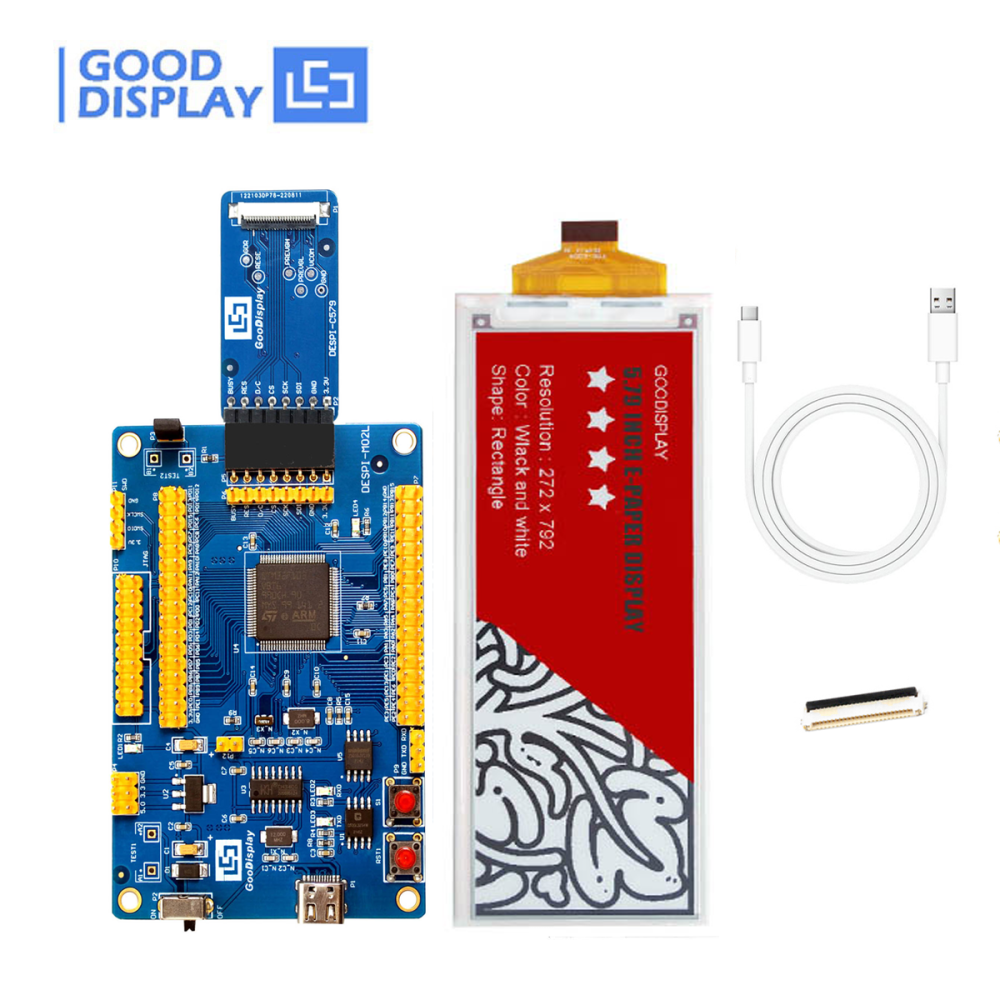

☆ THE ABOVE PRICE INCLUDE

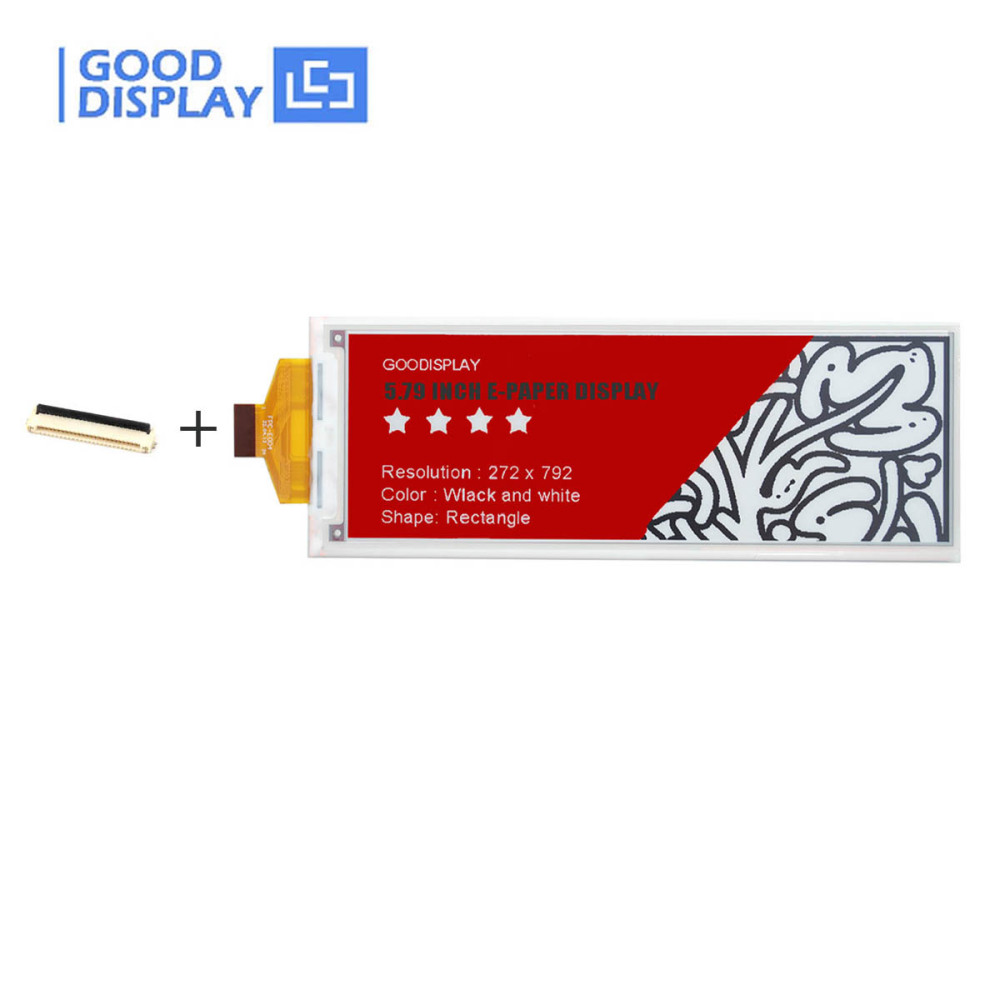

1) 5.79 inch red e-paper display SPI e-ink screen module, GDEY0579Z93 * 1pc
2) FPC Connector * 1pc

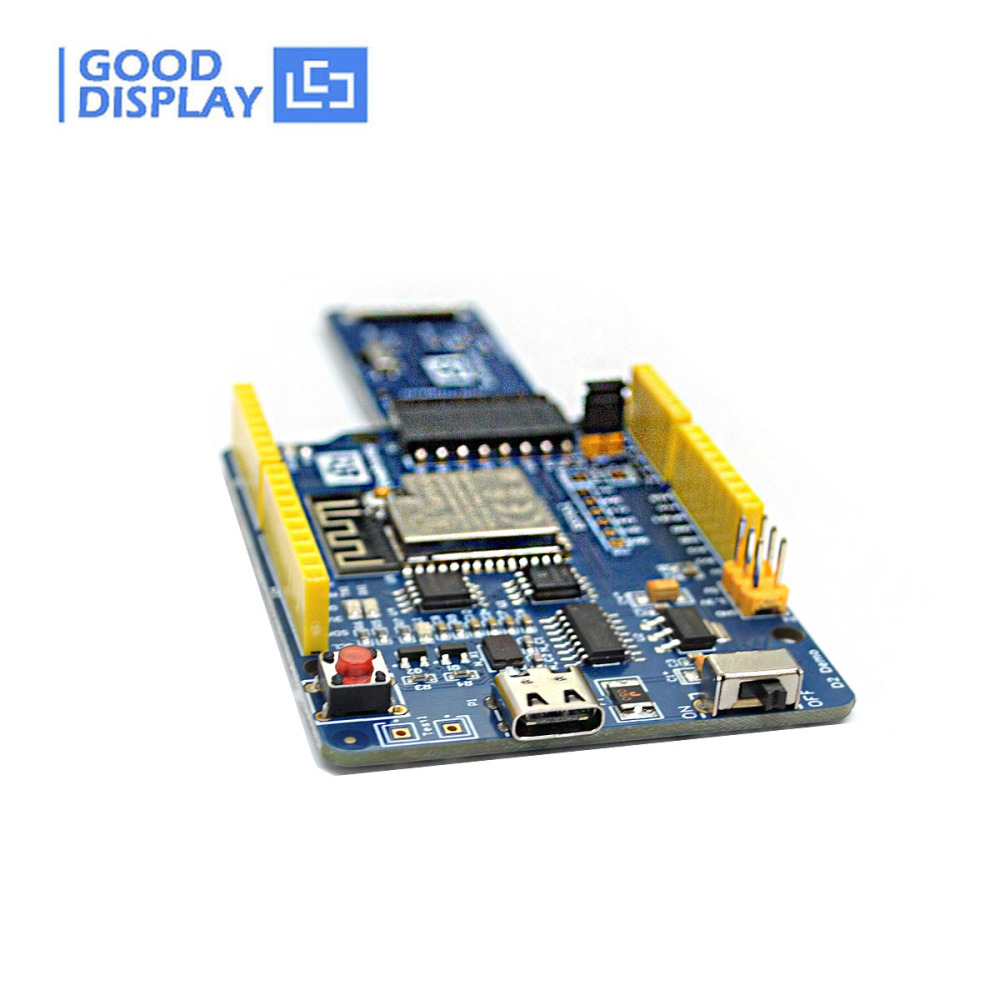

3) Driving board DESPI-M02L * 1pc
4) Connector board DESPI-C579 * 1pc
5) USB port cable * 1pc



☆ MAIN PARAMETERS




PART NUMBER

GDEY0579Z93

SIZE

5.79 inch

STORAGE TEMP. -25℃~70℃

TYPE

Dot Matrix

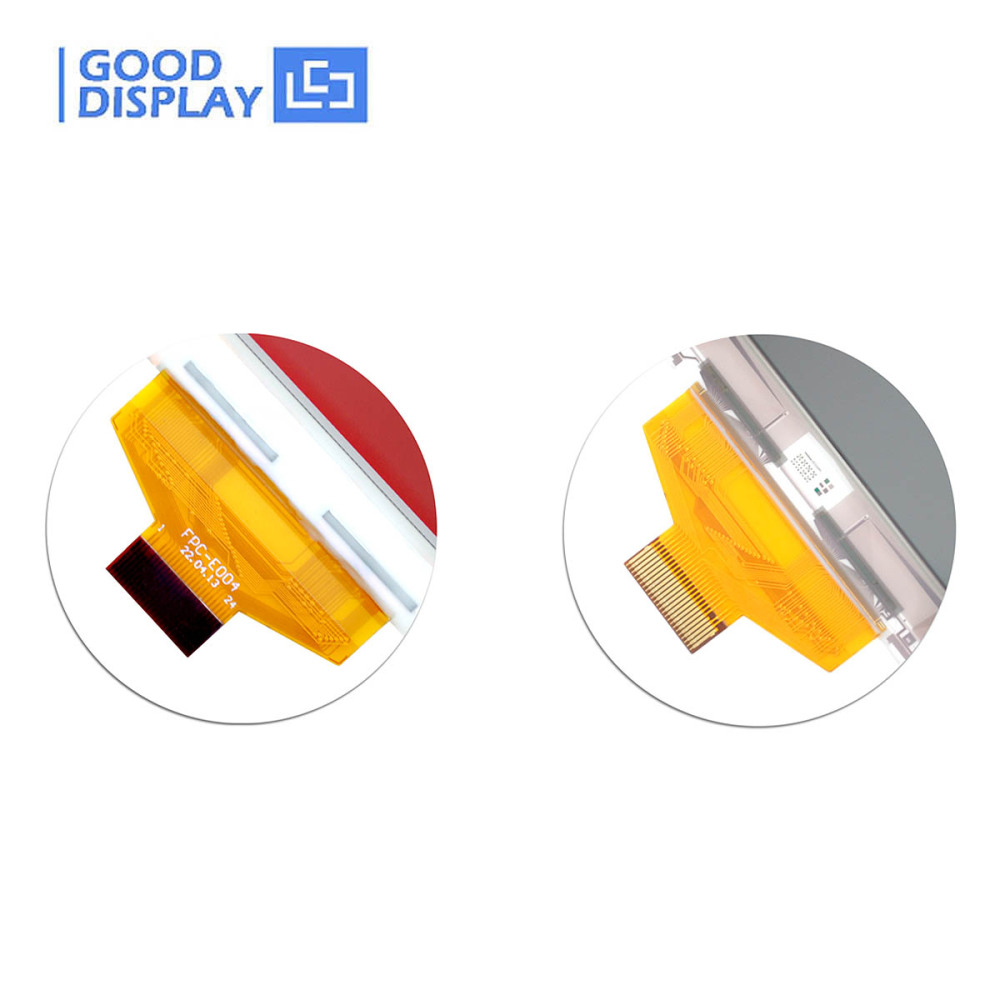

CONNECTOR 24 Pin FPC, Pitch:0.5mm

IC

SSD1683

COLOR Black,White,Red

RESOLUTION

792x272 INTERFACE SPI

OUTLINE SIZE(mm)

150.92x56.94x1.0 FULL REFRESH(s) 20

ACTIVE SIZE(mm)

139.00×47.74 POWER CONSUMPTION OF THE REFRESH(mW) 27

PIXEL PITCH(mm)

0.1755×0.1755 STANDBY POWER CONSUMPTION (mW) 0.006

OPERATING TEMP.

0℃~40℃





PART NUMBER DESPI-L(C579)
PLATFORM STM32 GRAY SCALE LEVEL Max 2 Grayscale
FUNCTION Drive E-paper Display OPERATING TEMP. -20~70℃
OUTSIDE DIMENSION 90x60mm (DESPI-M02L)
41x22mm (DESPI-C579)
EXAMPLE CODE Available
POWER INTERFACE Type-C RESERVED FUNCTION Available
POWER INPUT DC5V RESERVED FUNCTION Type-C, LED indicator, User-defined button, Reset button, Font chip, Flash chip, Current detection
FEATURE Support fully refresh, fast refresh and partial refresh MAIN FUNCTION Learn to drive E-paper display;
Test and evaluate e-paper display;
Support secondary development





☆ FEATURE




●  Black, white and red. Compared with monochrome electronic paper display, it is more beautiful

●  Versatile. Use in portrait or landscape format.

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor.



☆ DETAIL






☆ RELATED INFORMATION DOWNLOAD



 GDEY0579Z93 Specification

 IC Driver SSD1683 Datasheet


 GDEY0579Z93 STM32 Sample Code

 GDEY0579Z93 ESP8266 SAMPLE CODE

 GDEY0579Z93 ESP32 Sample Code

 Picture Production and Bitmap Convert for GDEY0579Z93



 DESPI-L(C579) Specification

 DESPI-C579 Specification

 DESPI-M02L-SCH


 DESPI-C579-SCH
