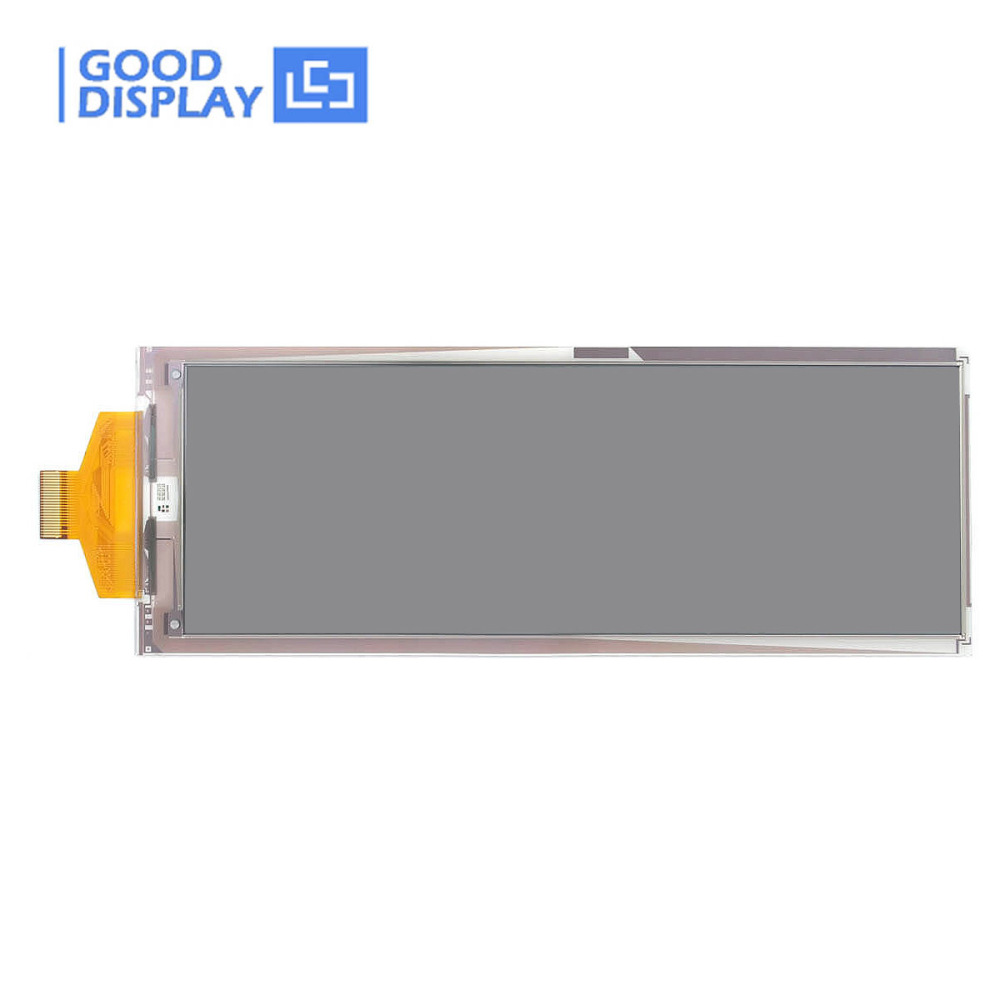

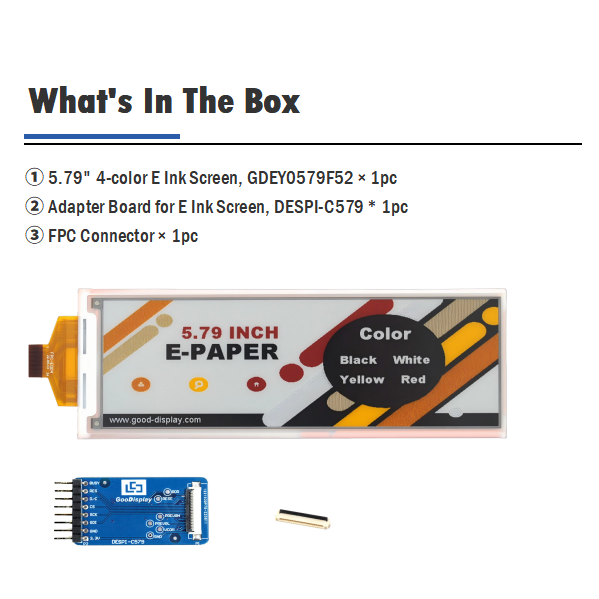

5.79" 4-Color E-Ink Display 12s Fast Refresh E-Paper Screen 792x272 High-Resolution

GDEY0579F52
This 5.79-inch four-color E-Ink display redefines low-power display solutions with its 12s fast refresh, ultra-low 0.003mW standby power consumption, and SPI interface compatibility.
Have a question?
Price:
USD
$23.00
  • product:
    EPD
    EPD with adapter board

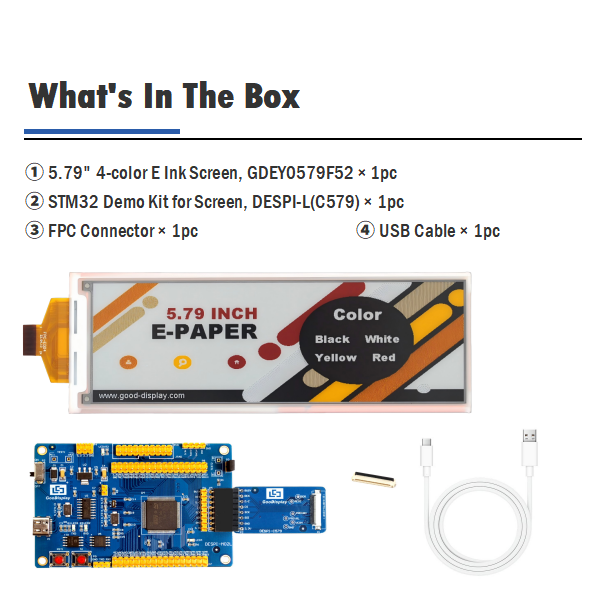

    EPD with STM32 Demo Kit

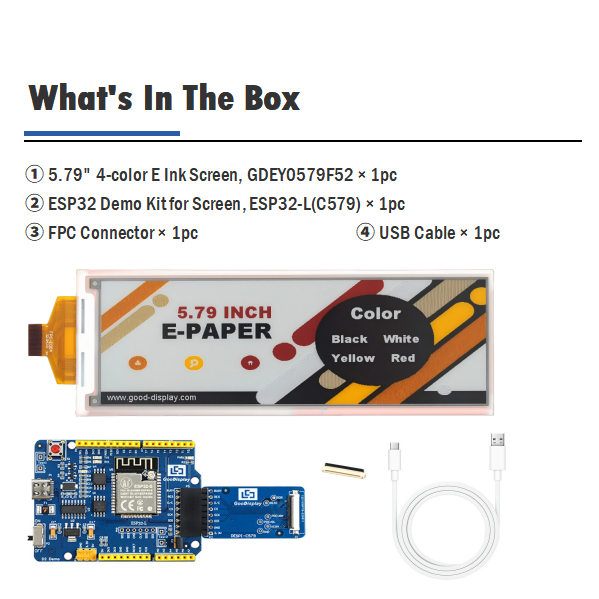

    EPD with ESP32 Demo Kit
Quantity:
-
+
(30 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews

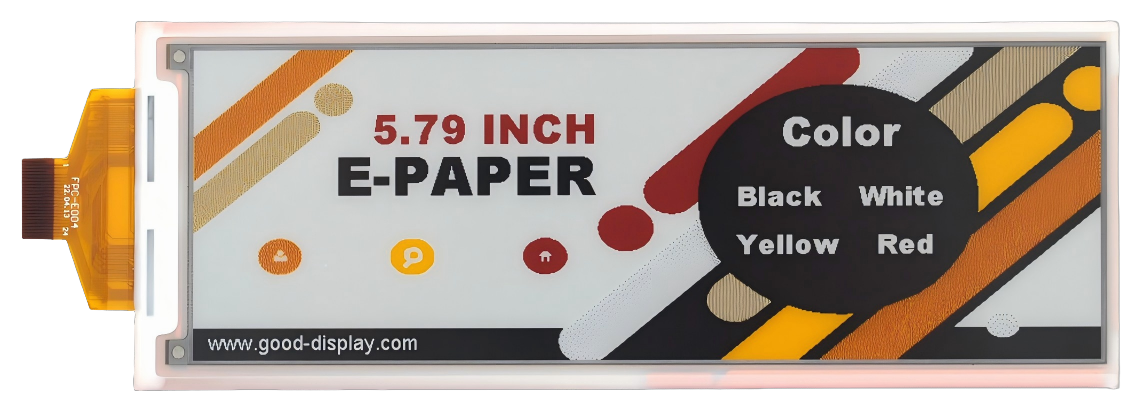

5.79" 4-Color E-Ink Display

Tired of sluggish color ePaper? Meet GooDisplay's 5.79-inch 4-color E Ink display updates price tags, transit info, or menus in just 12s (fast refresh!) while sipping near-zero power (0.003mW standby). Get vibrant Red, Yellow, Black, White updates anywhere – retail, logistics, or public info – without constant battery swaps.






Core Advantages

Blazing 12s Fast Refresh

 • Industry-leading 12s refresh time
 • 23% faster than standard ePaper
 • Enables near real-time updates
 • Ideal for dynamic applications

Full Refresh: 20s
Fast Refresh: 12s

Ultra-Low Power Domination

 • Standby: 0.003mW (40% lower)
 • Zero power to hold static images
 • Years on a single battery
 • Drastically reduces maintenance

Refresh Power: 41.4mW
Standby Power: 0.003mW

Vibrant 4-Color Display

 • High-res 792×272 display
 • Functional Red/Yellow/Black/White
 • Superior readability & contrast
 • Paper-like viewing experience

Resolution: 792×272
Colors: R/Y/B/W

Technical Specifications

Part Number GDEY0579F52
Color Black, White, Red, Yellow
IC IST7158x2
Size 5.79"
Type Dot Matrix
Operating Temp. 0℃~40℃
Resolution 792x272
DPI 144
Storage Temp. -25℃~70℃
Outline Size(mm) 150.92x56.94x1.0
Full Refresh(s) 20
Power Consumption Of The Refresh(mW) 41.4
Active Size(mm) 139.00×47.74
Fast Refresh(s) 12
Standby Power Consumption (mW) 0.003
Pixel Pitch(mm) 0.1755×0.1755
Connector 24pin FPC
Interface SPI

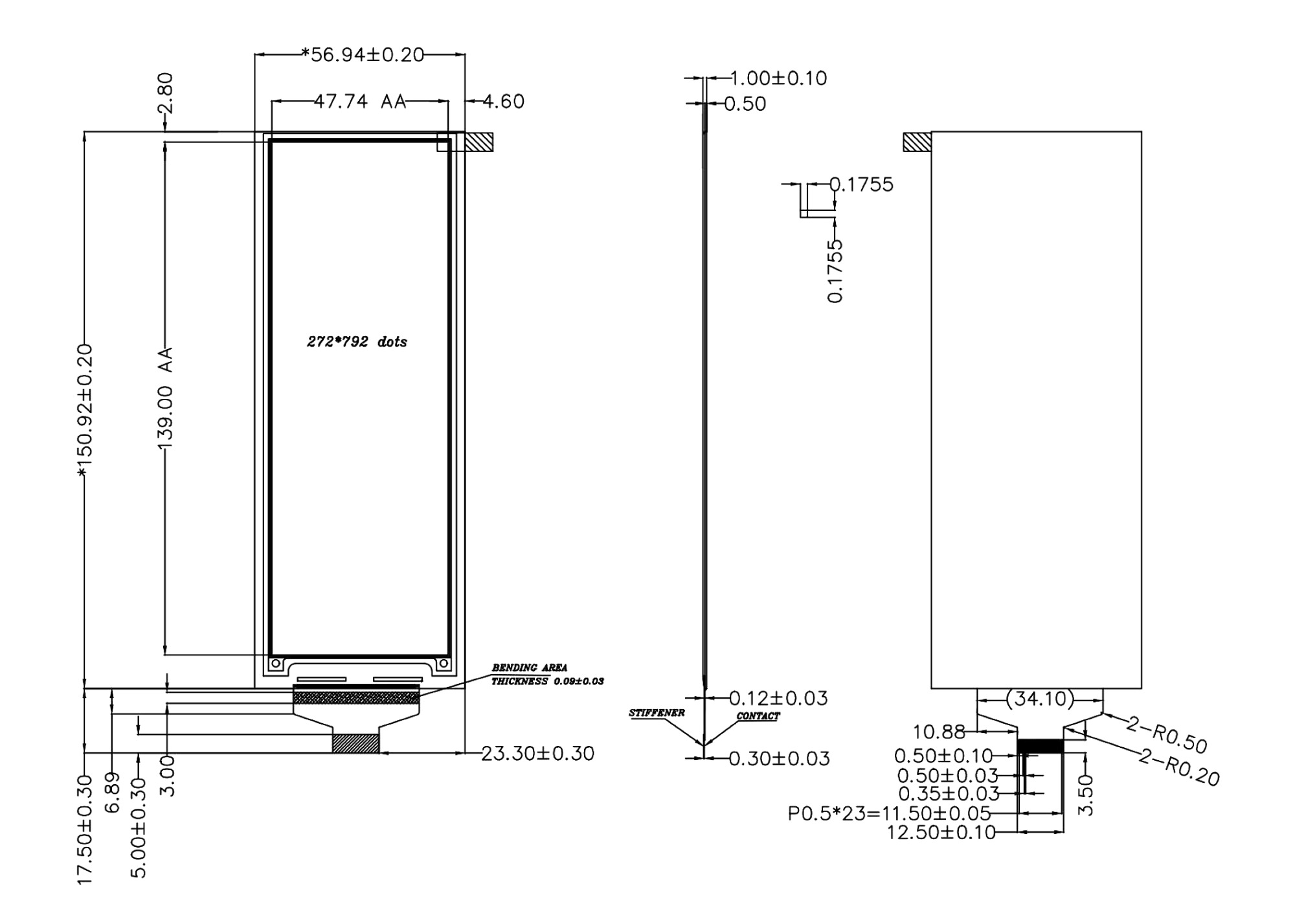

Drawing Details

Matching Driver Boards

DESPI-C02 Driver Board

DESPI-C02

Pure interface adapter (no MCU) for connecting external boards to 24-pin SPI EPDs.

View Details
DESPI-L(C02) Driver Board

DESPI-L(C02)

Top-tier industrial processing power (Cortex-M), featuring USB data transmission.

View Details
ESP32-L(C02) Driver Board

ESP32-L(C02)

Supports common WiFi/BT/USB data transmission for versatile connectivity.

View Details
ESP8266-L(C02) Driver Board

ESP8266-L(C02)

Supports common WiFi and USB data transfer for cost-effective solutions.

View Details

Files & Download

Typical Applications

Portable Reading

Smart Bookmark

No blue light, low power consumption when placed in books, replacing traditional sticky notes with customizable backgrounds.
Industrial

Device Status Dashboard

Low power consumption, sunlight visibility,  (e.g., charging piles, electricity meters) or noisy factory environments.
Creative

Interactive Art Installation

Set up long-strip ink screen walls in public spaces, allowing users to upload text/images via QR codes for real-time display, forming a "collective creation" scroll—ideal for art festivals or mall interactive marketing.

We Also Recommend

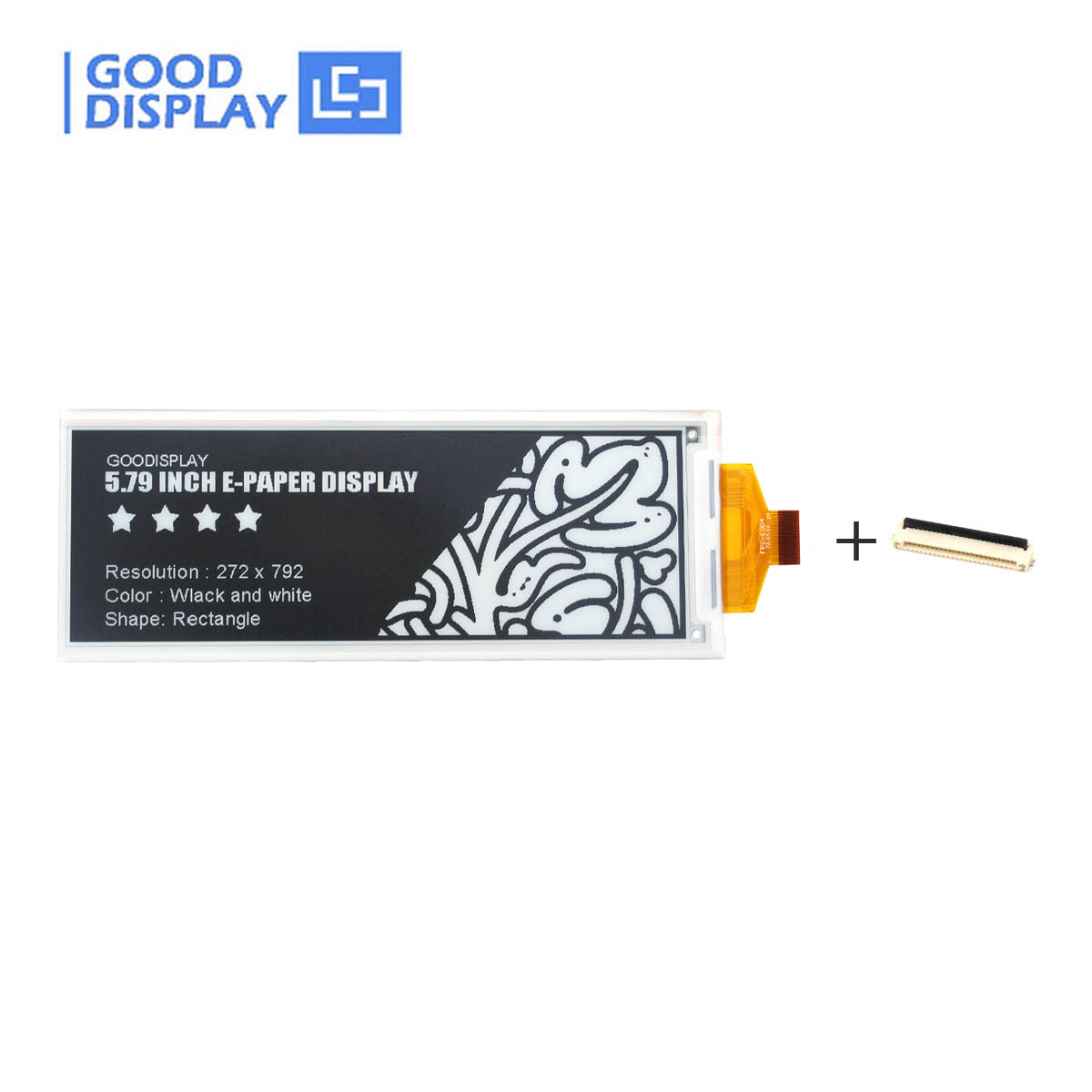

BLE Price Tag

5.79" Monochrome EPD

View Details

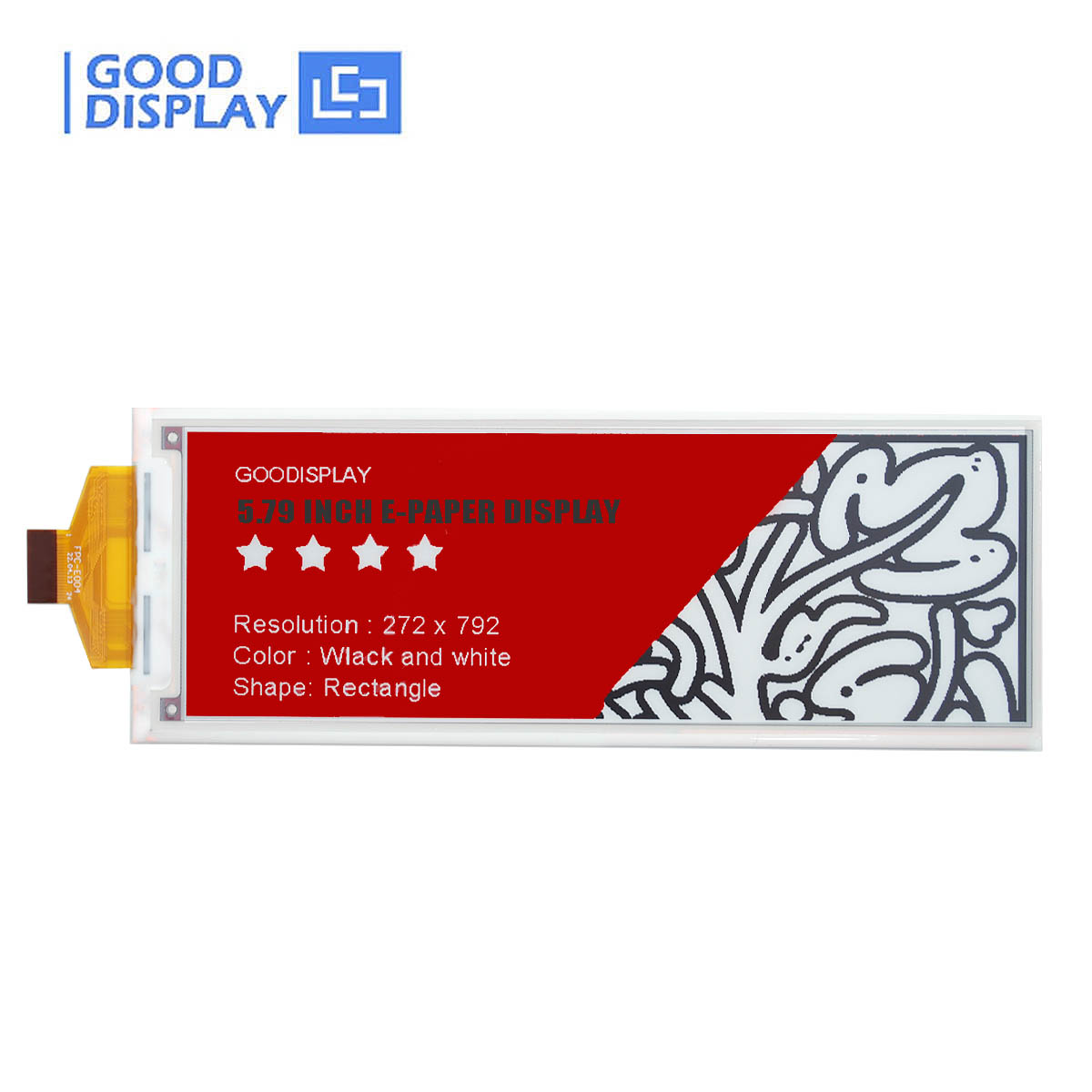

E Ink Desk Sign

5.79" Red EPD

View Details

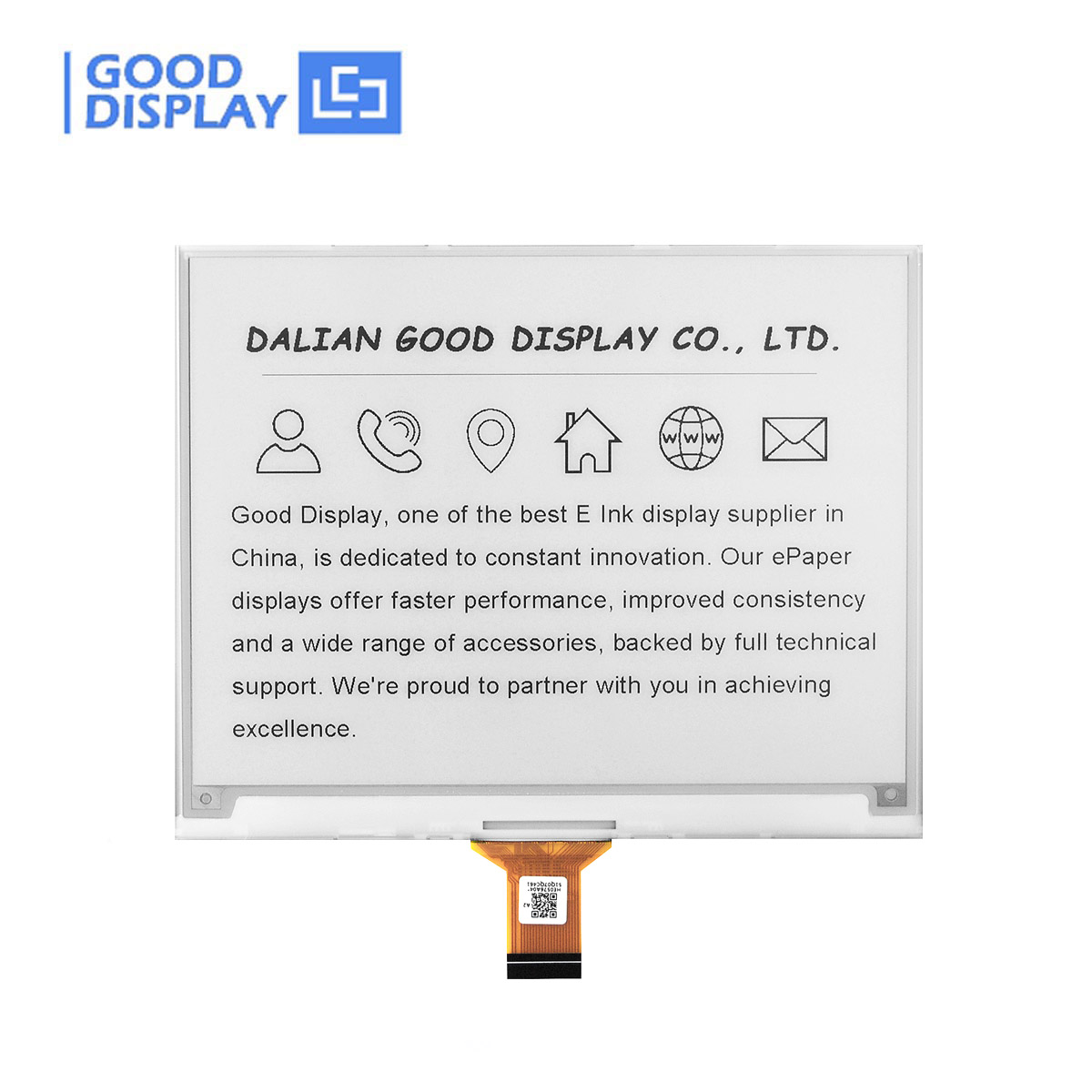

5.76" Monochrome EPD

View Details

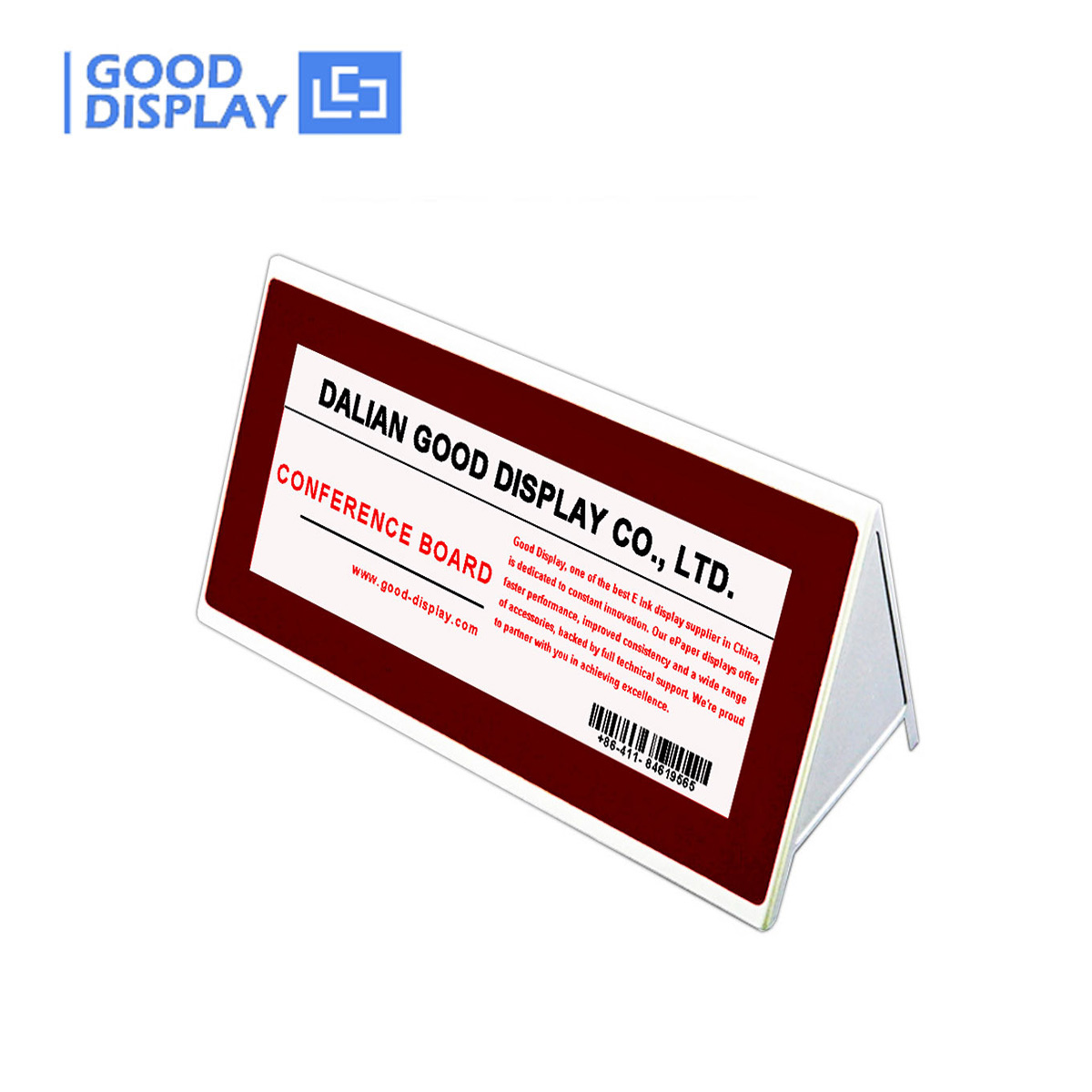

3-Color ESL

5.79" Red Table Cards

View Details

Sustainable Technology

Paperless Future

Each display saves ≈3,000 sheets annually. Join 15,000+ businesses reducing paper waste with ePaper solutions.

Sustainable Packaging

95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials.

Energy Leadership

90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees.

Why GooDisplay E-Paper Refreshes Faster



Optimized Fast-Refresh FPL

We rigorously select fast-refresh FPL films at the raw material level, laying a solid hardware foundation for high-speed performance.



Smart Temp-Controlled Drive

 Our engineers optimize waveform files for different temperature ranges, ensuring excellent display quality even during rapid refresh cycles.





Chip-Level Integrated Solution

Optimized waveforms are built into the display driver chip—activate fast refresh mode with a simple code call!

Display Type Refresh Capability Available Sizes
Black & White (B/W) Displays Supports fast refresh, partial refresh, and 4-level grayscale 0.97" to 10.3"
Black, White & Red (BWR) Displays Supports fast refresh and partial B/W refresh 2.13" to 11.6"
Black, White, Red & Yellow (BWRY) Displays Supports fast refresh with multi-color layered updating 0.97" to 11.6"
