4.2 inch epaper display e-ink screen module 4 Grayscale with USB port Programmable Demo Kit

GDEW042T2+DESPI
GDEW042T2 is a TFT active matrix electrophoretic display , with interface and a reference system design. This 4.2” active area contains 400x300 pixels, 4 Grayscale. Support partial refresh, black and white.
Price:
USD
$40.99
Quantity:
-
+
(97 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(3)

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




This is a set of development kit with 4.2 inch e-ink display with 400x300 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)

This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. And it is added the functions of USB serial port and LED indicator light ect. It also supports being updated by computer directly.



We could provide front light, touch screen and other accessories for you.

Relevant manual about this product on our official website (www.good-display.com), contact us please.

Use our free e-paper software to prepare your bitmap image for this display.







☆ FEATURE




●  Black and white monochrome is easy to read.

●  Versatile. Use in portrait or landscape format.

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor.

●  Color Optional. We also have other color for you to choose.








☆ THE ABOVE PRICE INCLUDE



1) 4.2 inch e-ink panel SPI interface 4 Grayscale buy e-paper display partial refresh * 1pc
2) Matched FPC Connector * 1pc

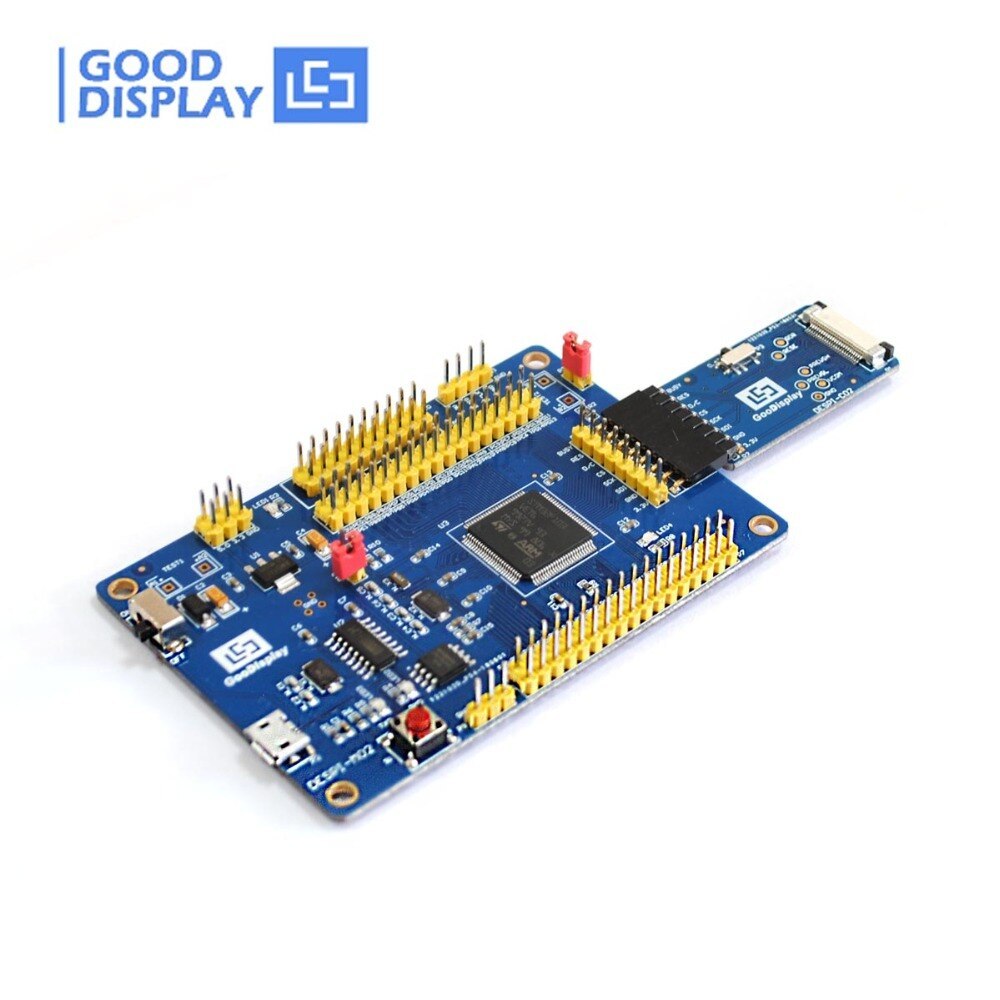

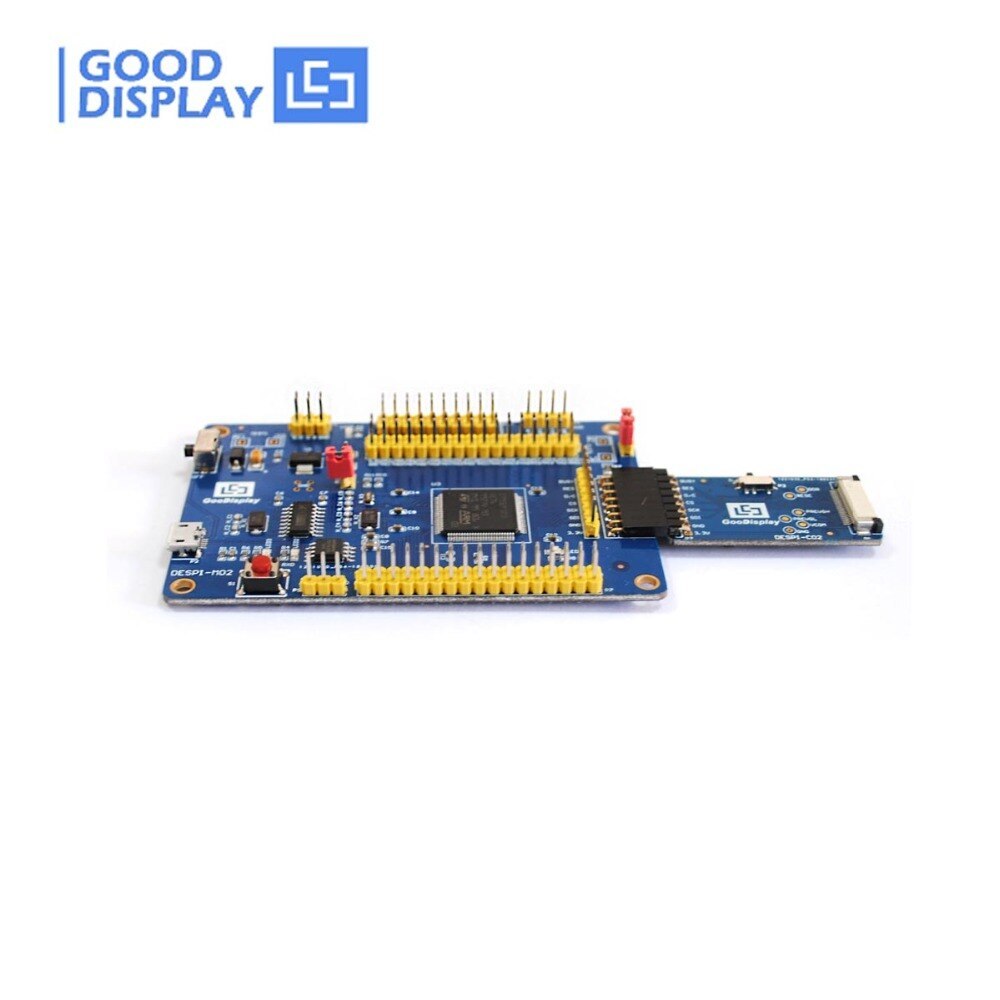

3) Driving board DESPI-M02 * 1pc
4) Connector board DESPI-C02  * 1pc
5) USB port cable * 1pc









☆ MAIN PARAMETERS




PART NUMBER

GDEW042T2

SIZE

4.2 inch

TYPE

Dot Matrix

IC

UC8176

RESOLUTION

400x300 (DPI:120)

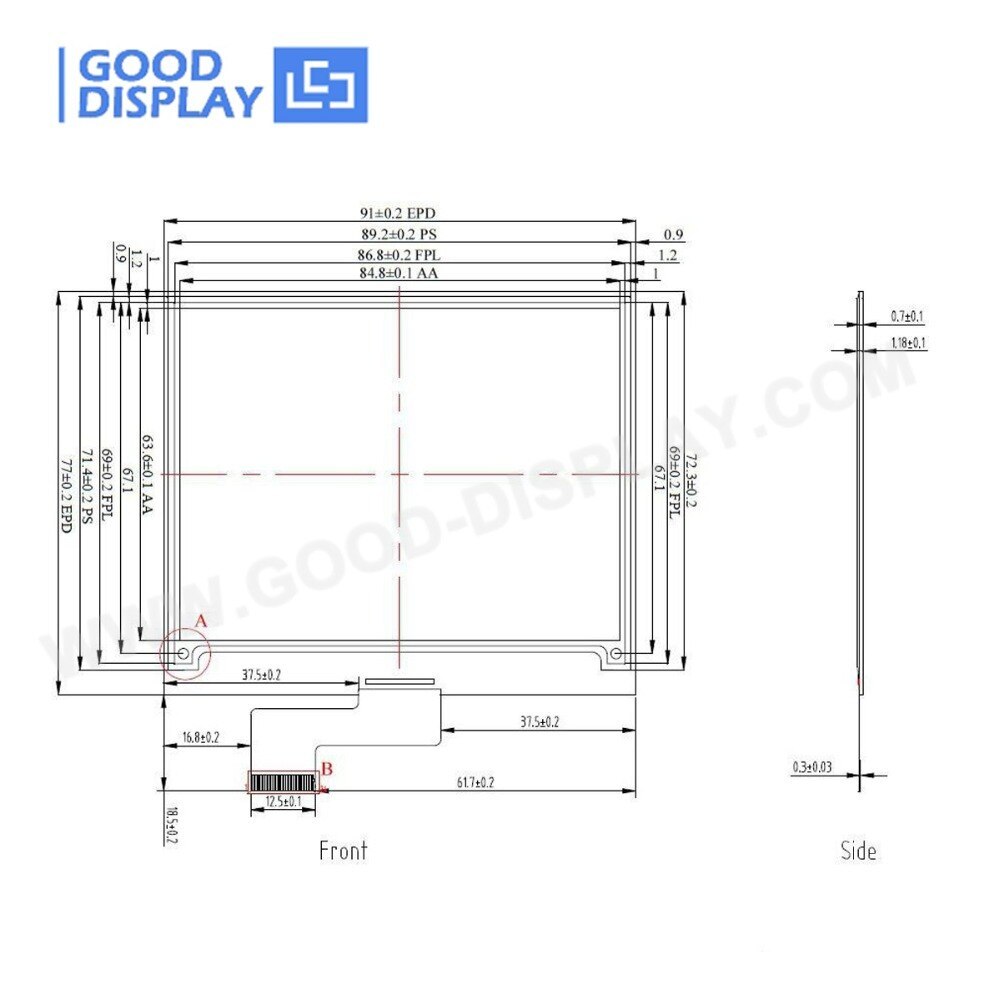

OUTLINE SIZE(mm)

91x77x1.18

ACTIVE SIZE(mm)

84.8x63.6

PIXEL PITCH(mm)

0.212x0.212

OPERATING TEMP.

0℃~50℃

STORAGE TEMP.

-25℃~70℃

CONNECTOR

24 Pin FPC

MAX GRAYSCALE

4

COLOR

Black,White

INTERFACE

SPI

FULL REFRESH(s)

3

POWER CONSUMPTION OF THE REFRESH(mW)

26.4

STANDBY POWER CONSUMPTION (mW)

0.0165







PART NUMBER

DESPI

PLATFORM

STM32

FUNCTION

Drive E-paper Display

OUTSIDE DIMENSION

90x60mm(DESPI-M02)

41x22mm(DESPI-C02)

INTERFACE

USB

POWER INPUT

DC5V

FEATURE

Fully and Partial Refresh

OPERATING TEMP.

-20℃~70℃

RECOMMENDED

Keil 4
